Traction Control Switch: Locations



ABS Component Views

Traction Control Switch

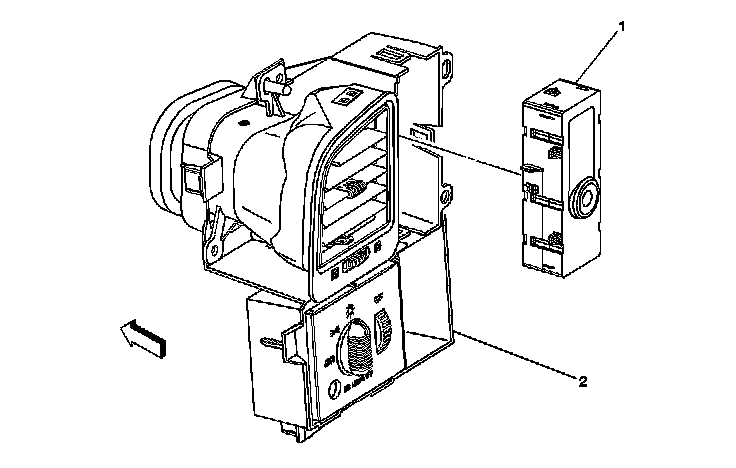

Traction Control Switch (NW7):





1 - Traction Control Switch
2 - Instrument Panel Outer Air Outlet Housing
