Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Diagrams >> Liftgate Ajar Switch - Left and Right

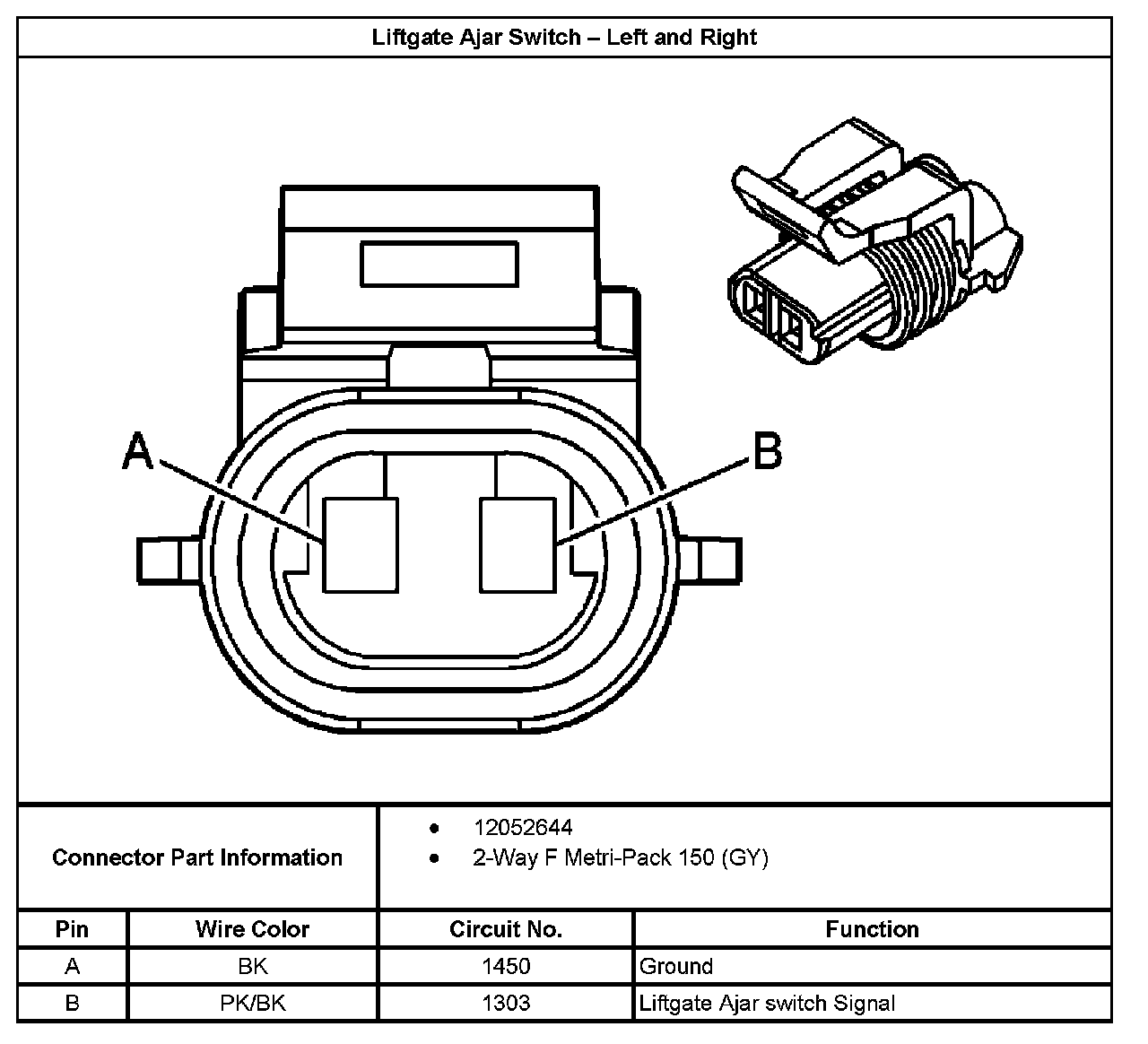

Liftgate Ajar Switch - Left and Right

Liftgate Ajar Switch - Left And Right:
