Parking Assist Control Module: Locations

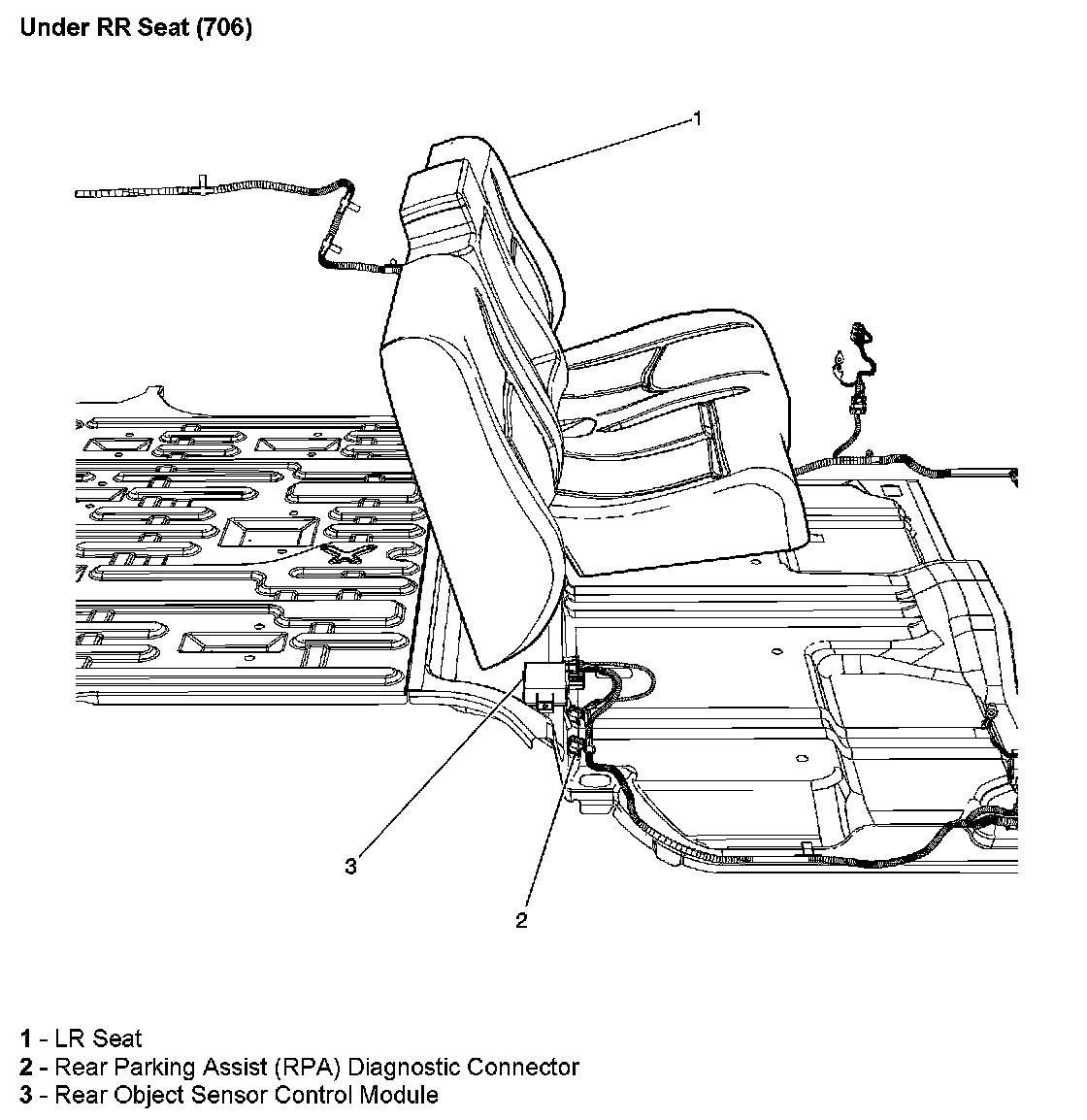

Under RR Seat (706):

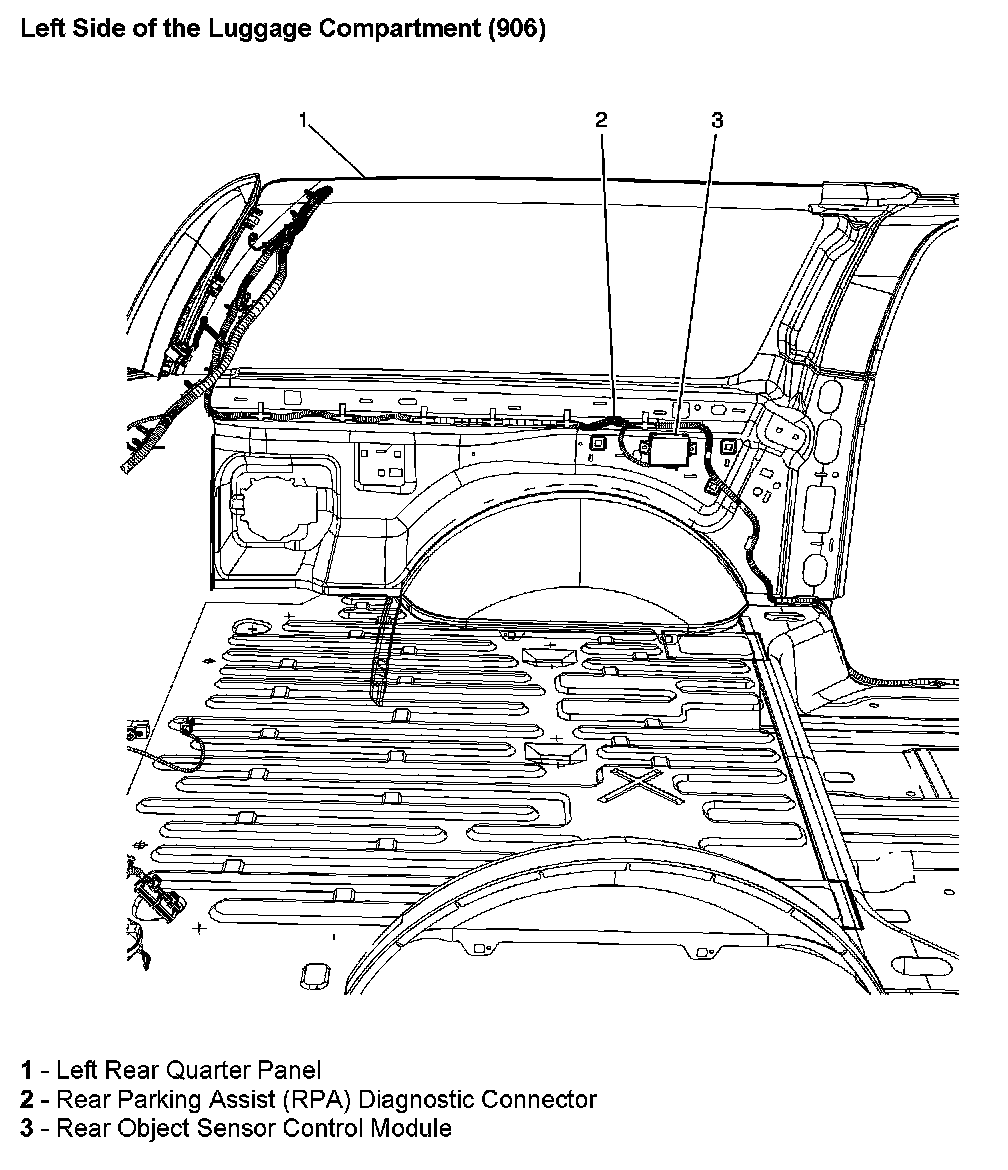

Left Side Of The Luggage Compartment (906):

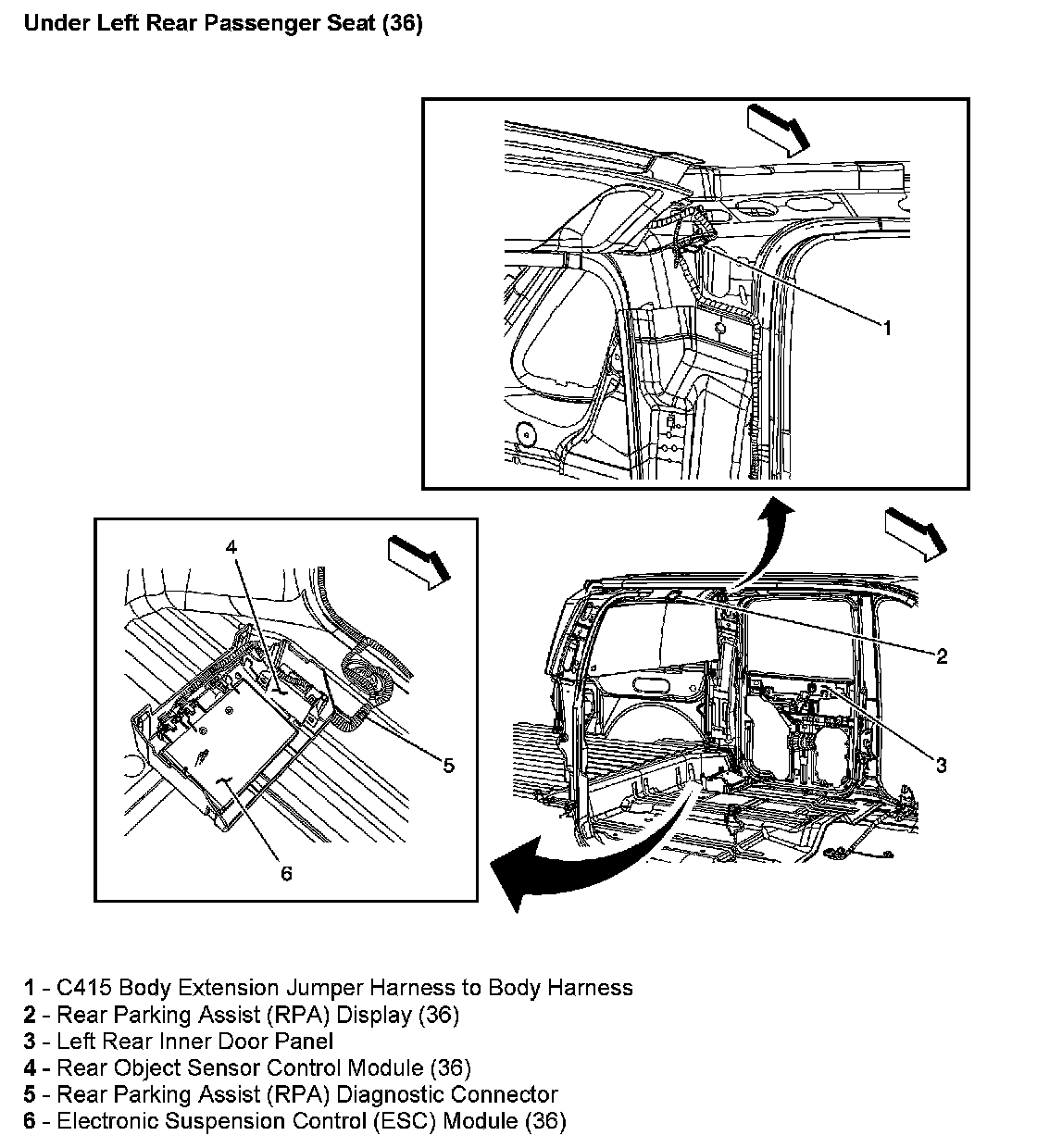

Under Left Rear Passenger Seat (36):
