Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Turn Signal Lamps and/or Indicators Inoperative

Turn Signal Lamps and/or Indicators Inoperative

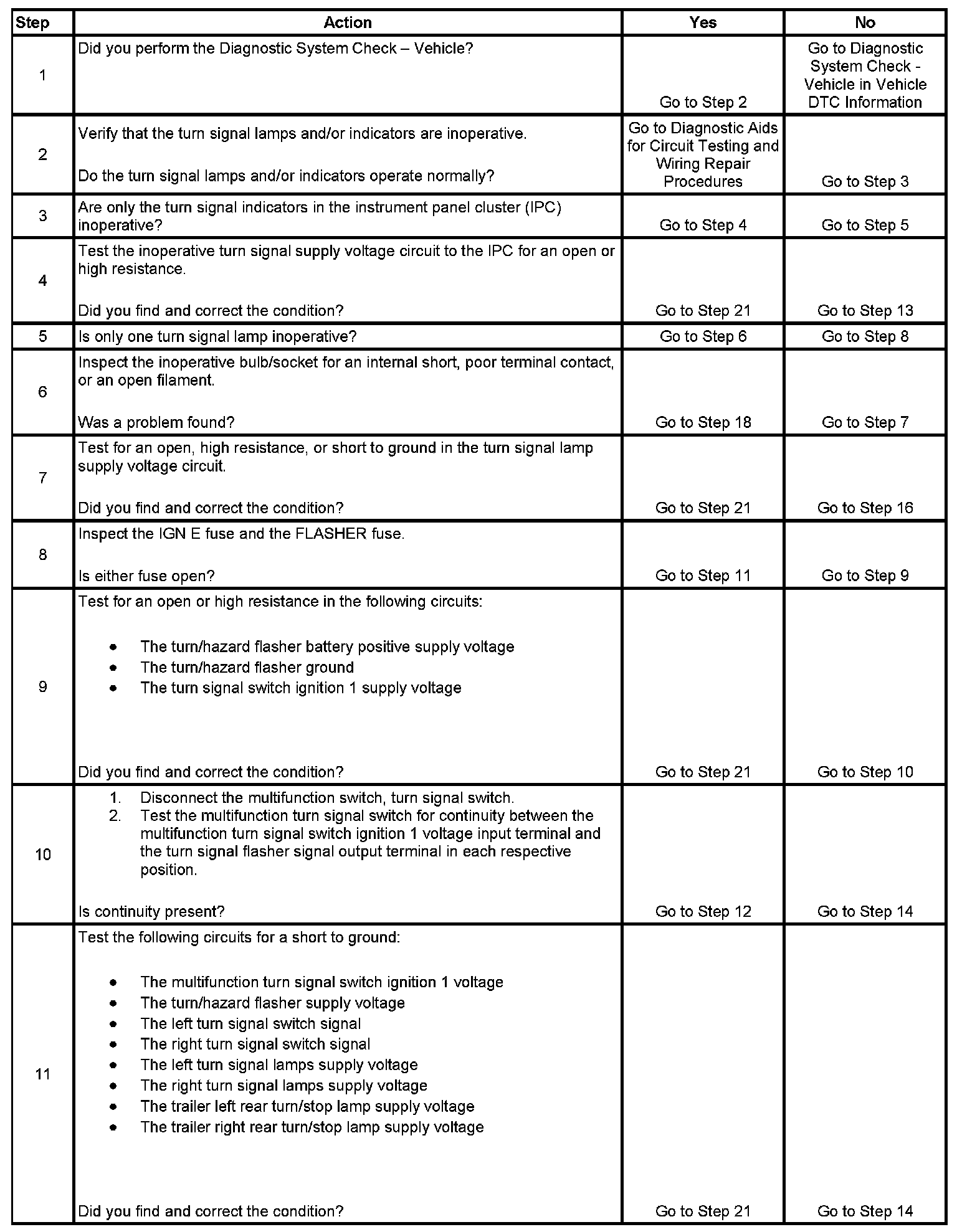

Steps 1 - 11:

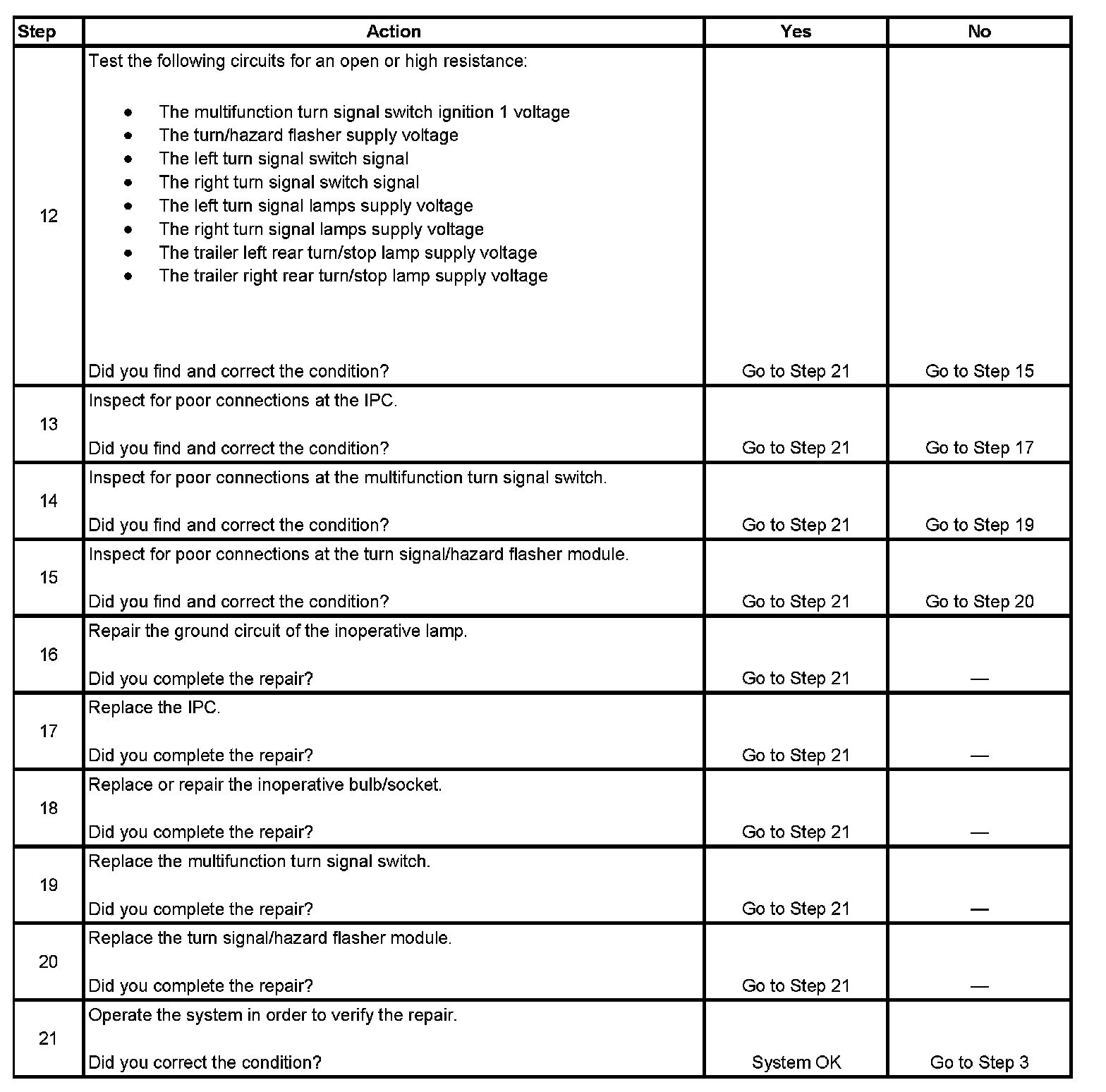

Steps 12 - 21:
