Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors >> Door Module >> Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch - Front Passenger)

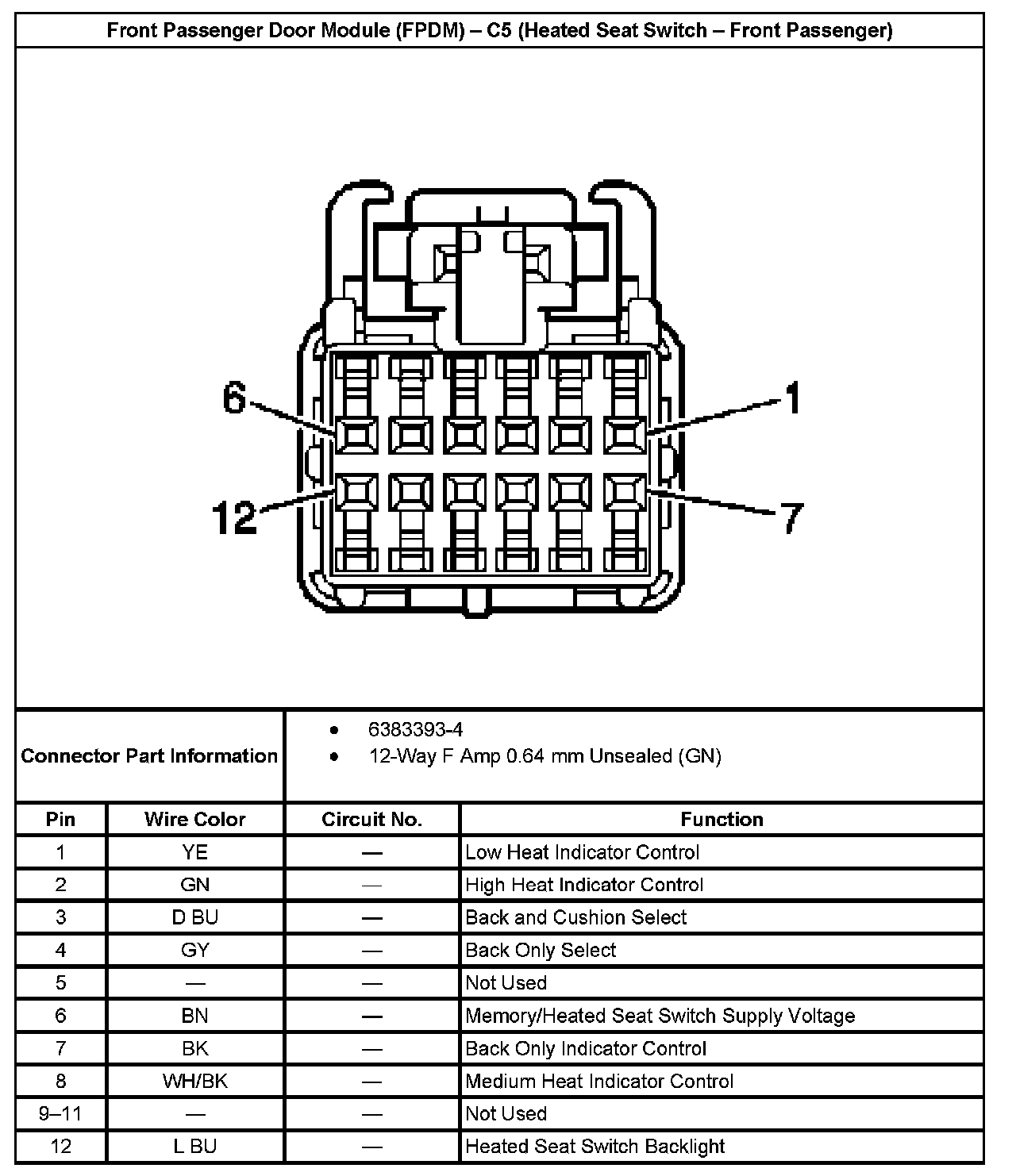

Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch - Front Passenger)

Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch - Front Passenger):
