Disc Brake Backing Plate Replacement Rear

Disc Brake Backing Plate Replacement - Rear (15 Series W/NYS)

Caution: Refer to Brake Dust Caution in Service Precautions.

Removal Procedure
1. Release the park brake.
2. Raise and support the vehicle. Refer to Vehicle Lifting..
3. Remove the tire and wheel assembly. Refer to Tire and Wheel F7emoval and Installation in Tires and Wheels.

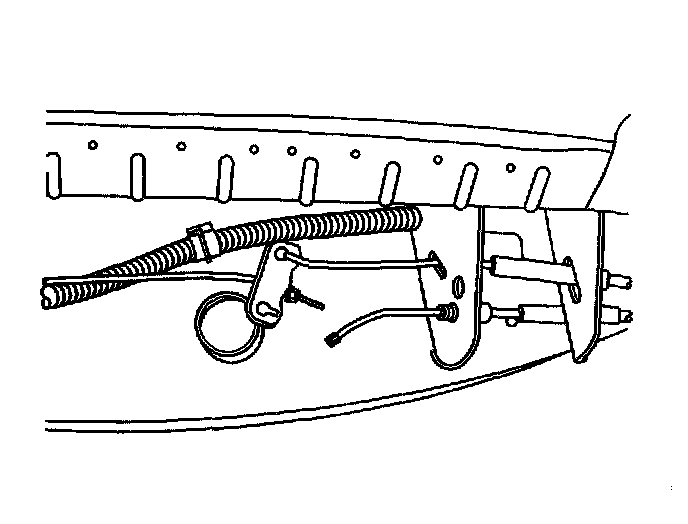

4. Relieve the tension from the park brake cable by pulling down on the intermediate cable then release the cable from the equalizer bar.

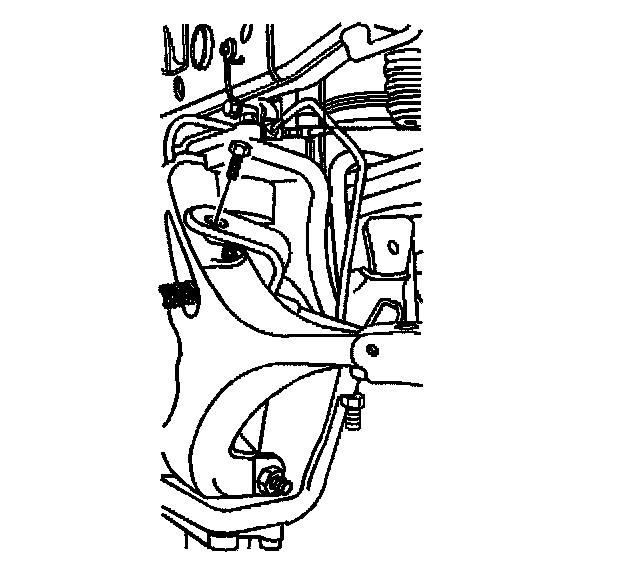

5. Remove the rear park brake bracket bolt

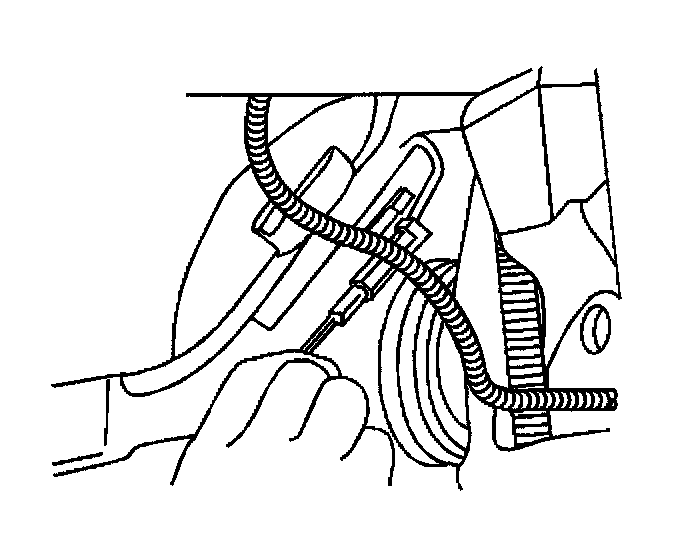

6. Remove the park brake cable from the park brake actuator lever.
7. Remove the wheel bearing. Refer to Wheel Hub and Bearing Replacement in Rear Wheel Steering.
8. Remove the park brake shoe.
9. Remove the park brake actuator lever housing from the backing plate.
10. Remove the backing plate.

Installation Procedure





1. Install the park brake actuator lever housing to the backing plate.
2. Install the park brake shoe.
3. Install the wheel bearing and adjust the park brake shoe. Refer to Wheel Hub and Bearing Replacement in Rear Wheel Steering and Park Brake Adjustment in Park Brake.

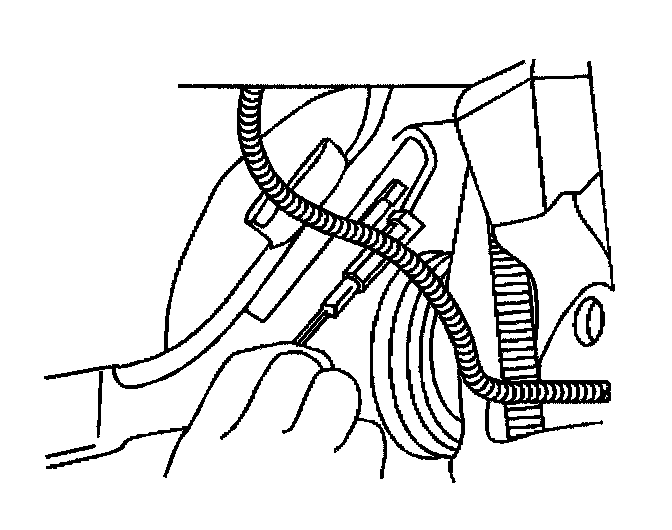

4. Install the park brake cable to the park brake actuator lever.





Notice: Refer to Fastener Notice in Service Precautions.

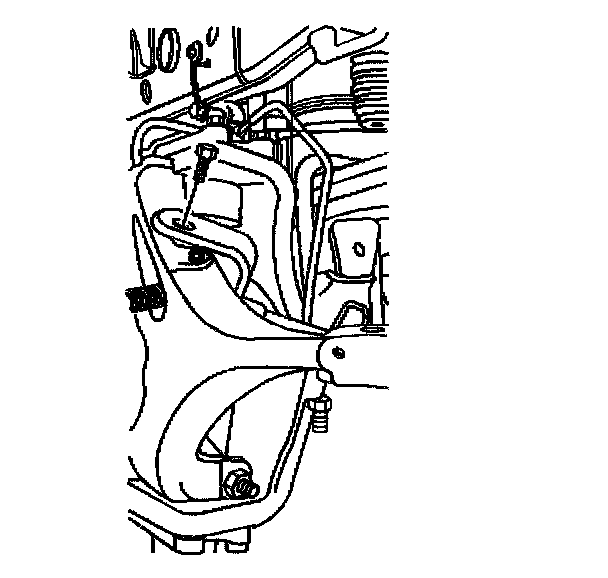

5. Install the rear park brake bracket bolt.
Tighten the bolt to 61 Nm (45 ft. lbs.).

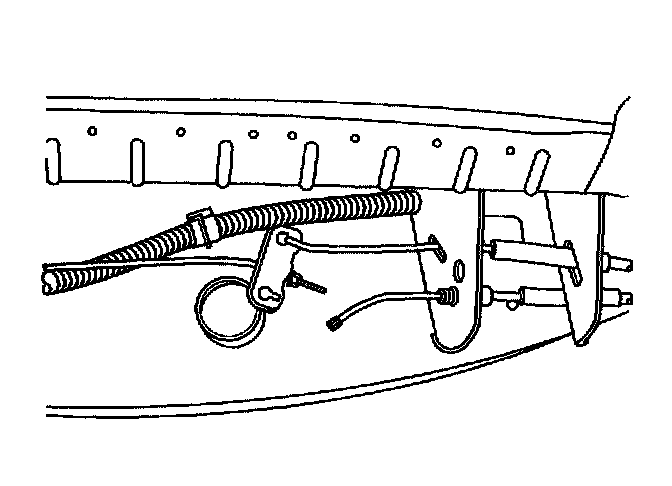

6. Install the park brake cable to the equalizer bar.
7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
8. Lower the vehicle.
