Does Not Disarm With Key Lock - Content Theft Deterrent (CTD)

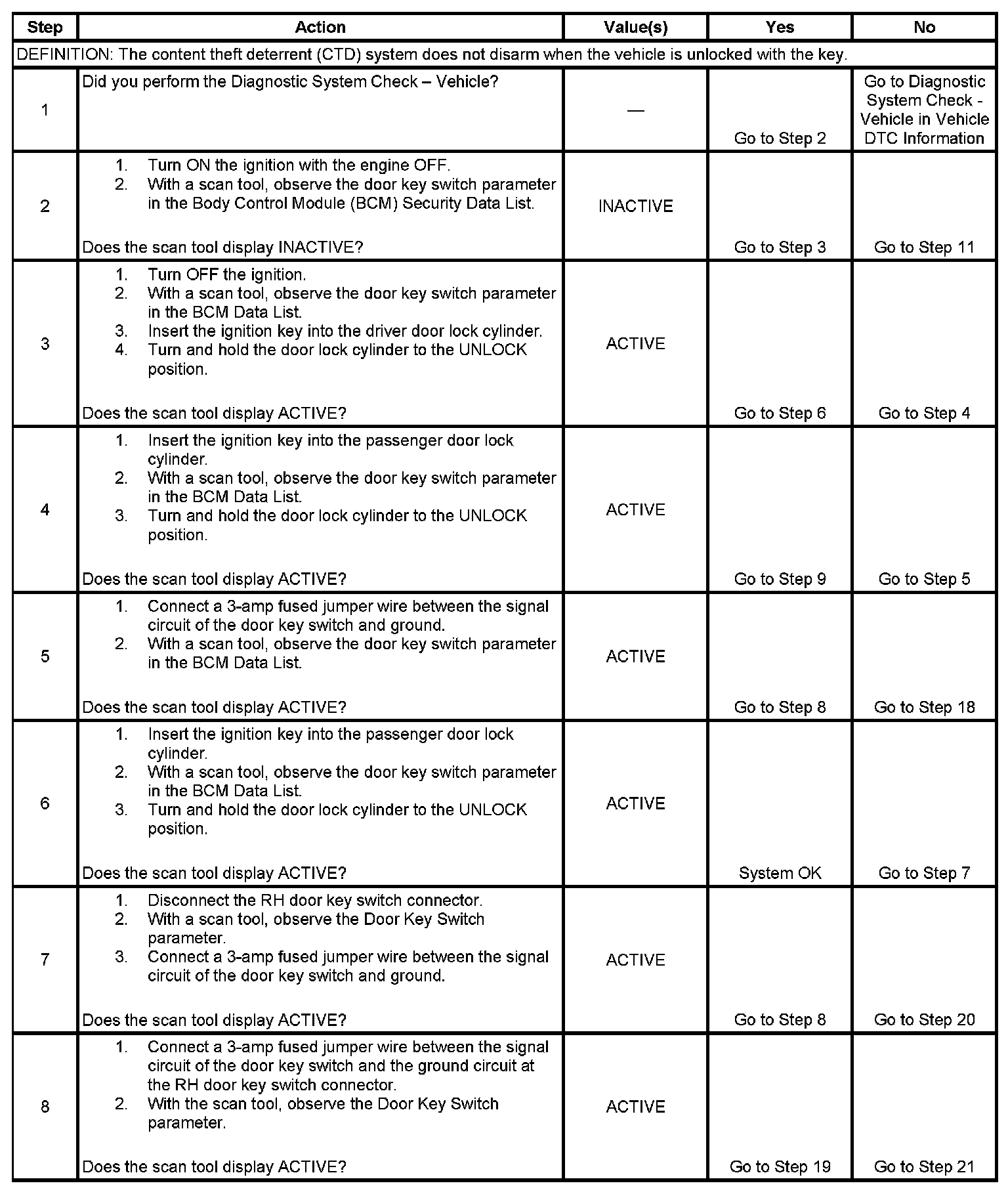

Steps 1-8:



Steps 9-20:

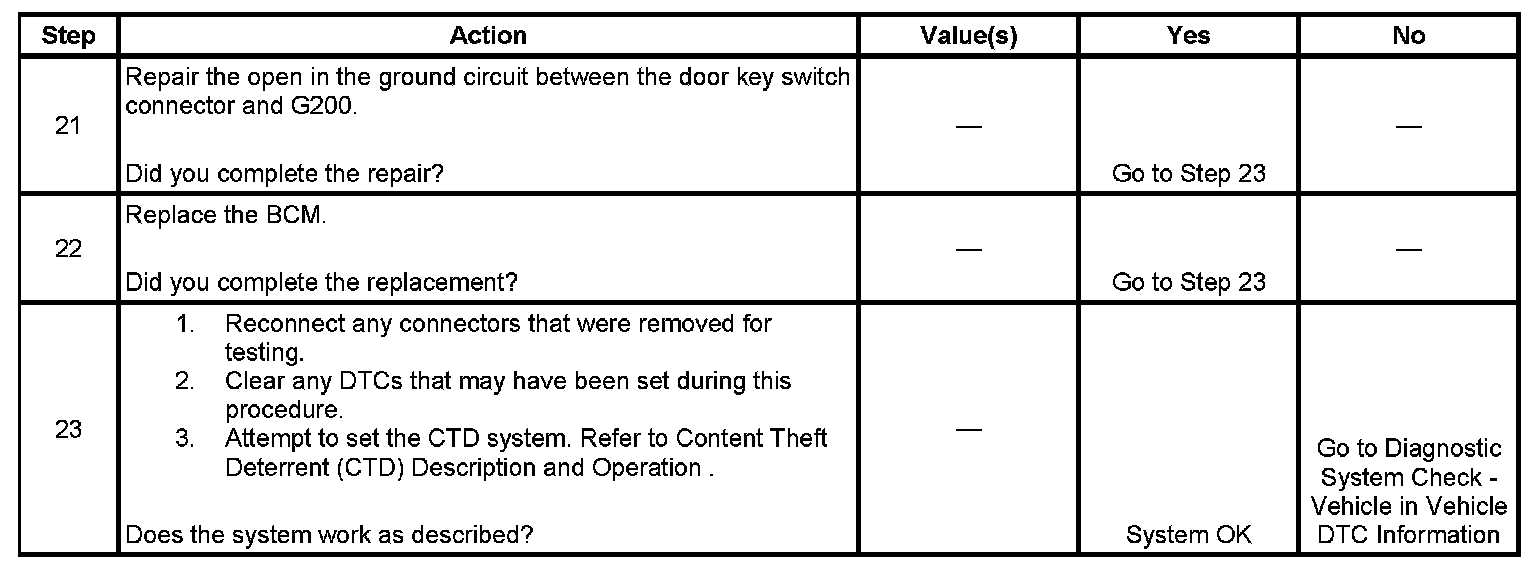

Steps 21-23:
