Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Tools and Equipment >> Drive Axle - Locking/Limited Slip

Drive Axle - Locking/Limited Slip

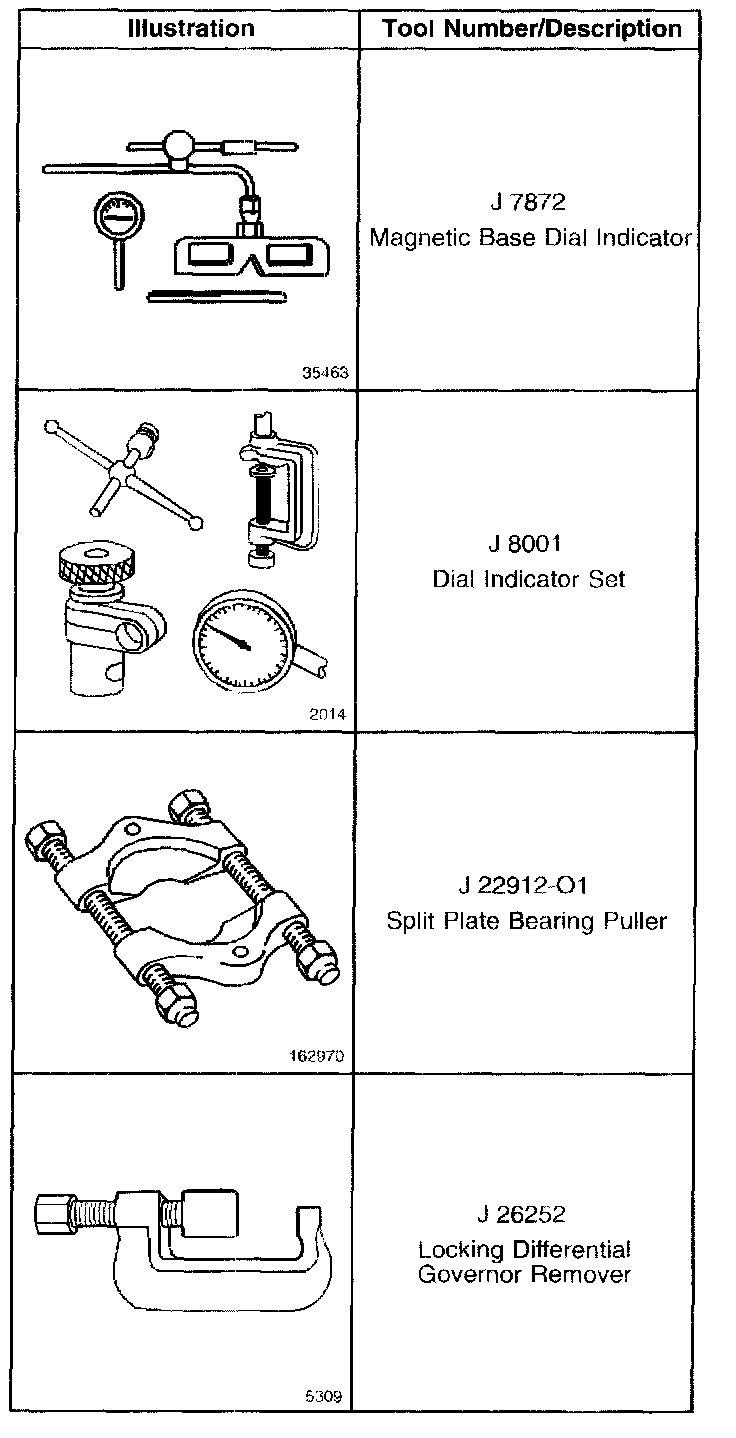

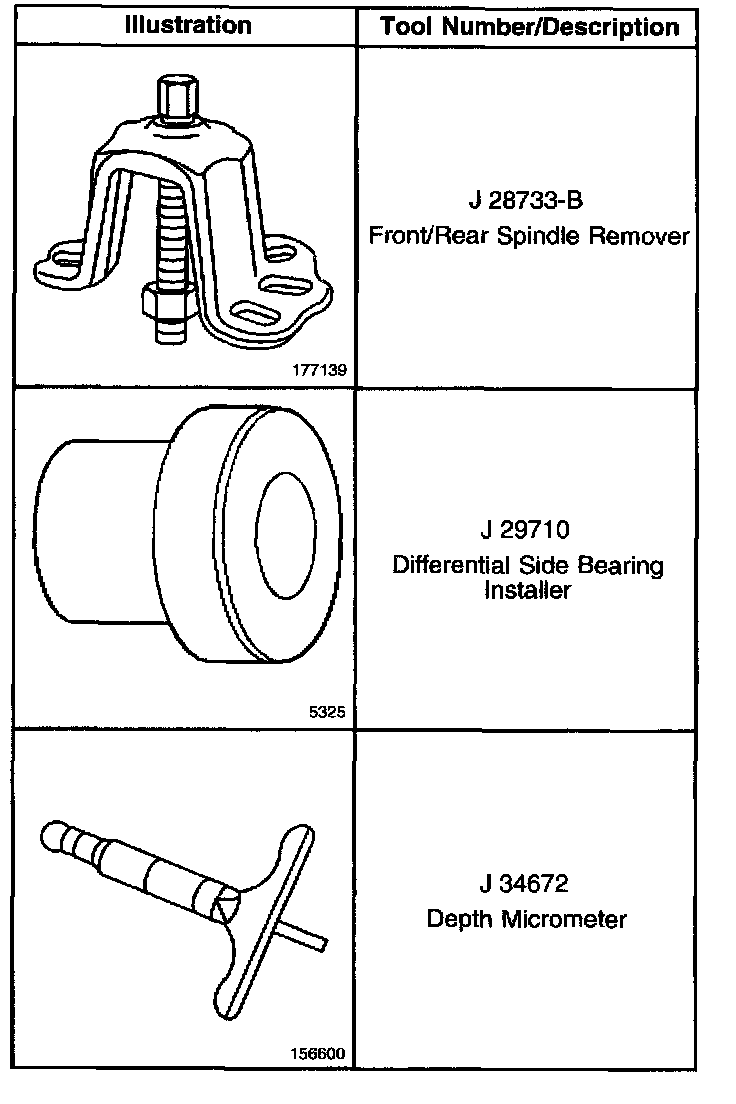

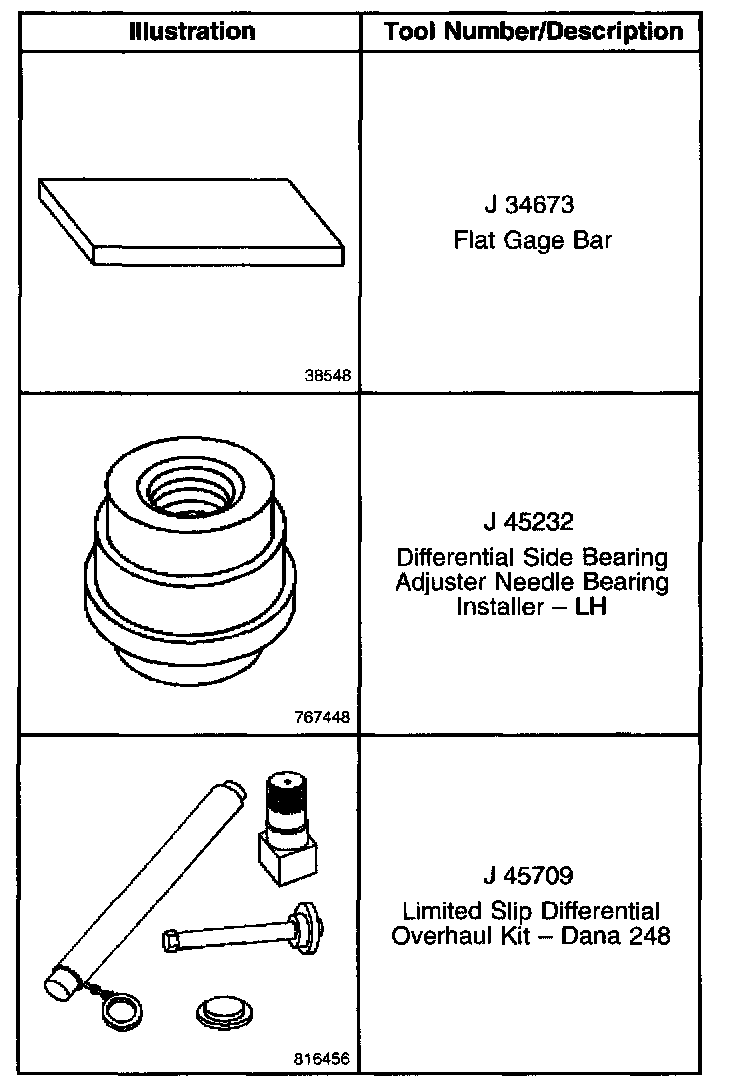

Special Tools and Equipment
