Rear Wheel Stud Replacement

^ Special Tools
- J 43631 Ball Joint Remover

Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel from the vehicle.
3. Remove the wheel hub and bearing from the vehicle.

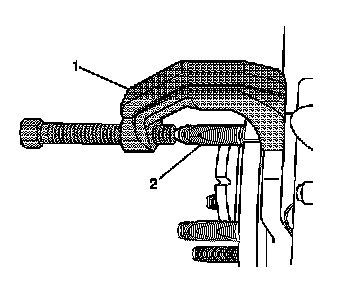

4. Using the J 43631 (1), remove the wheel stud (2) from the wheel hub.

Installation Procedure
1. Install a new wheel stud to the wheel hub.





2. Using the J 43631 (1), install the wheel stud (2) to the wheel hub.
3. Install the wheel hub and bearing to the vehicle.
4. Install the tire and wheel to the vehicle.
5. Lower the vehicle.
