Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis by Symptom - Power Steering System >> Whine or Growl Noise From the Power Steering System >> With Hydraulic Brake Booster

With Hydraulic Brake Booster

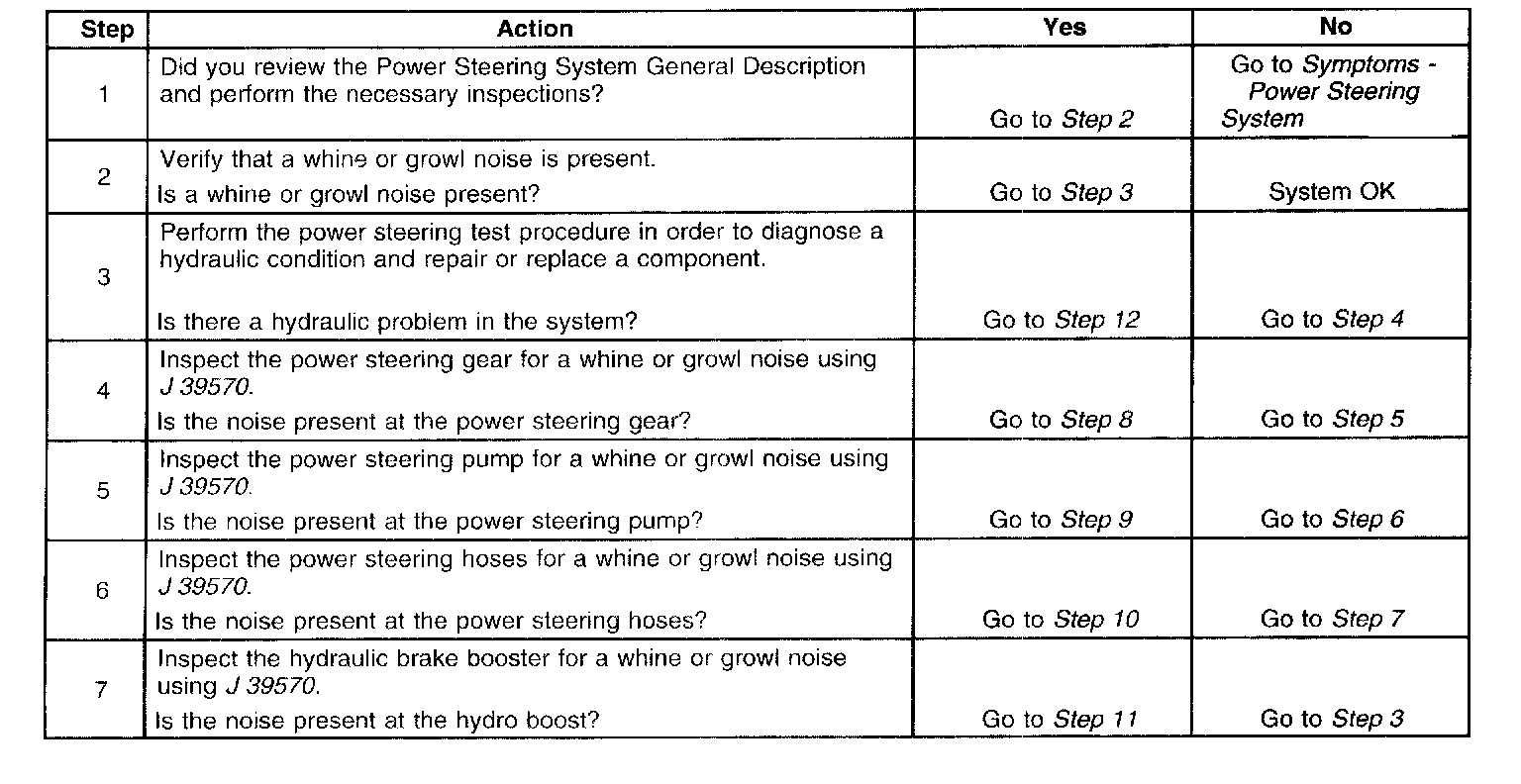

Steps 1 - 7:

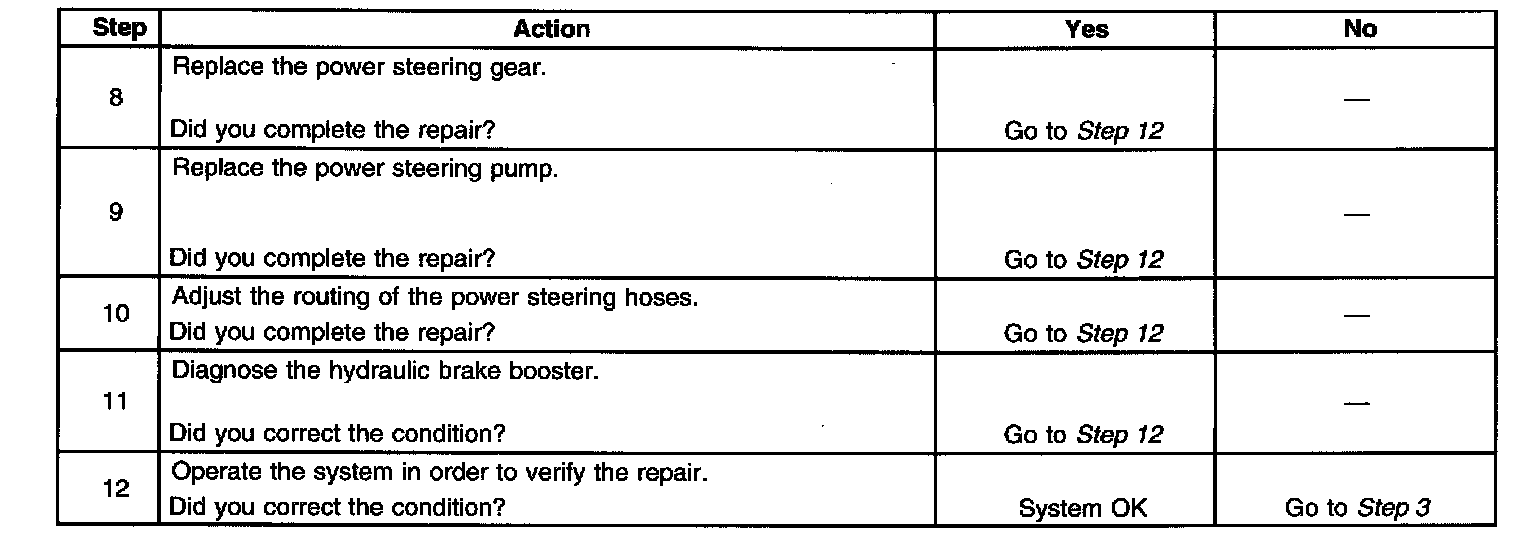

Steps 8 - 12:
