C400 - C499
>>
C450
C450

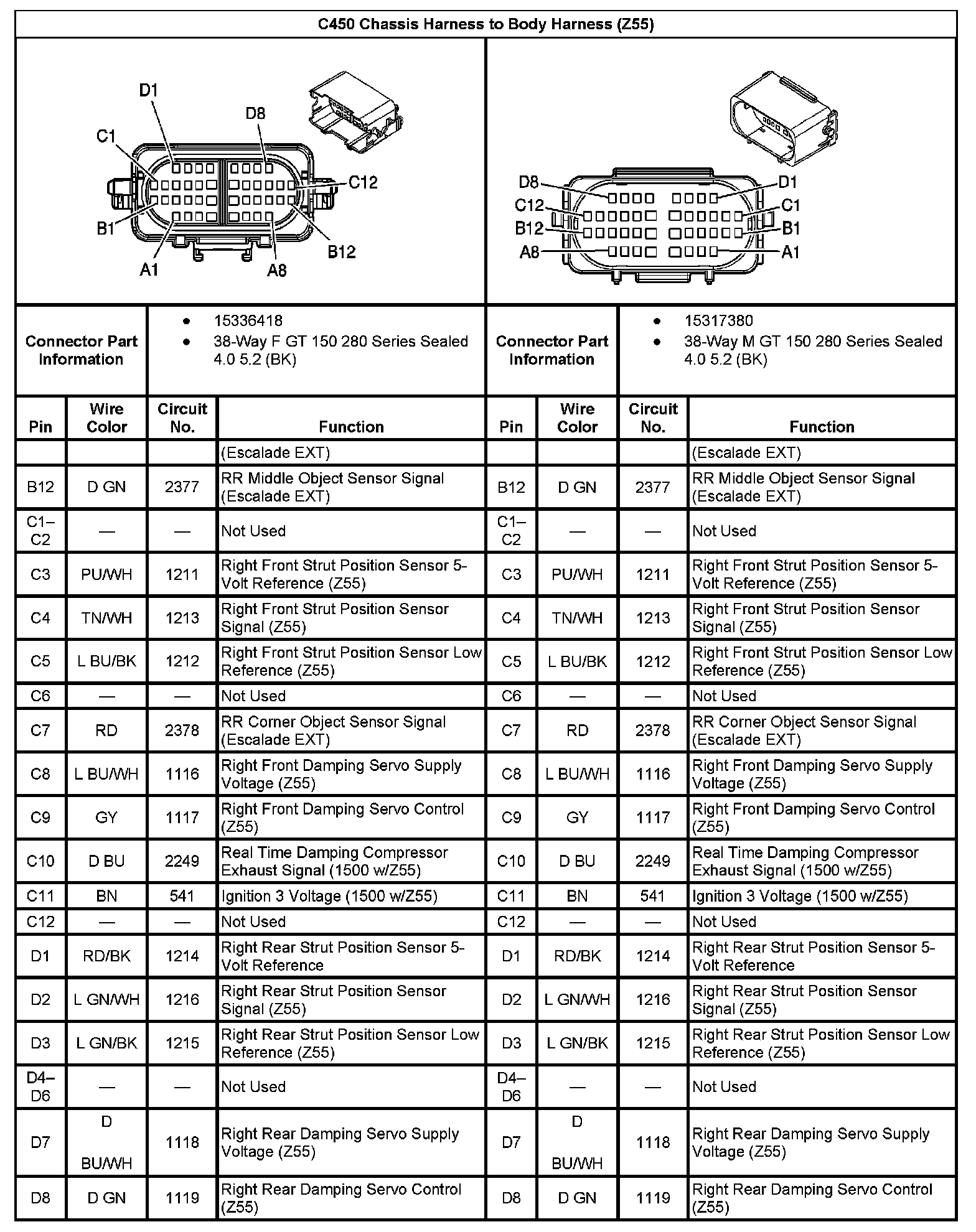

C450 Chassis Harness To Body Harness (With RPO Code Z55) Part 1:

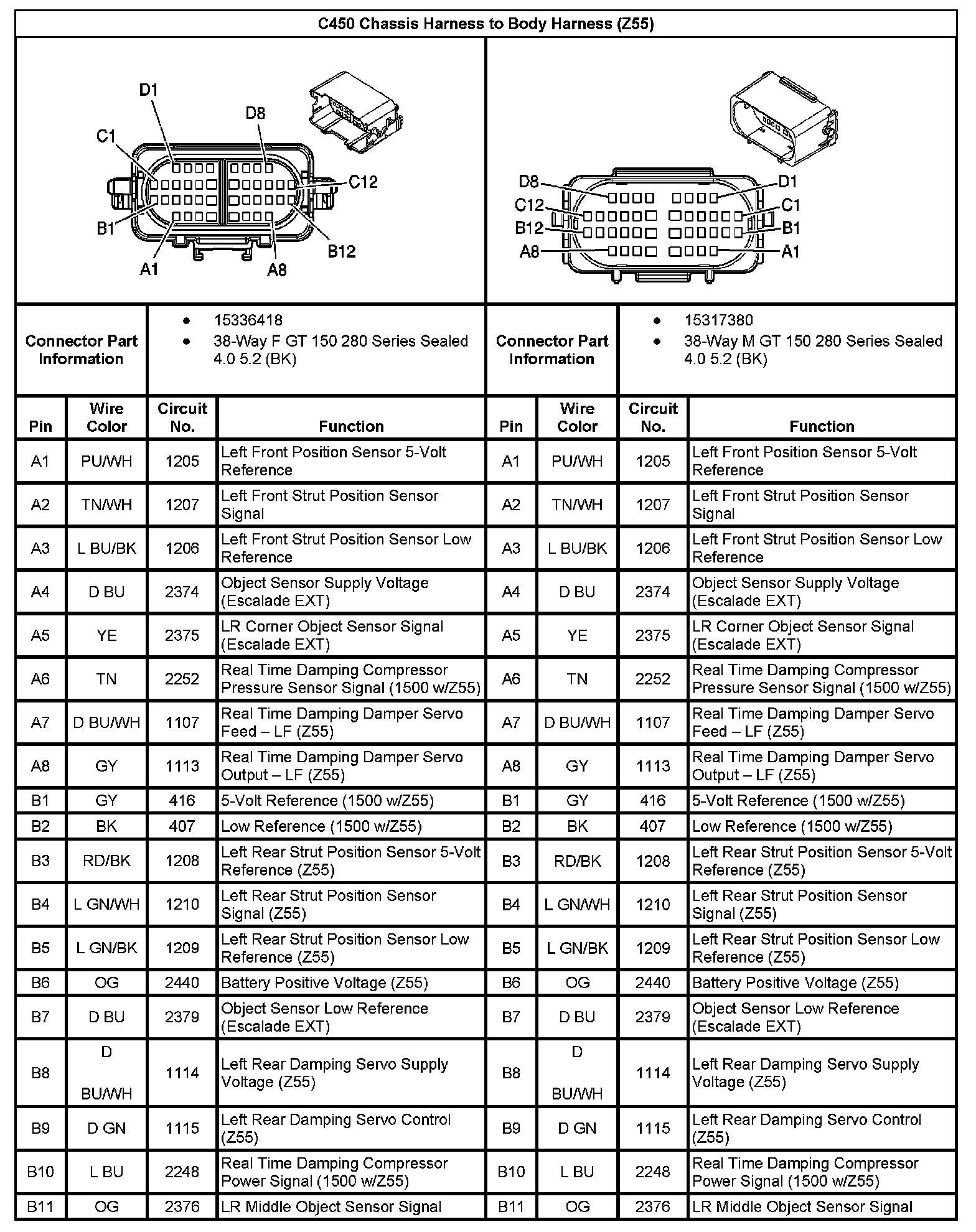

C450 Chassis Harness To Body Harness (With RPO Code Z55) Part 2:
