Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C400 - C499 >> C405

C405

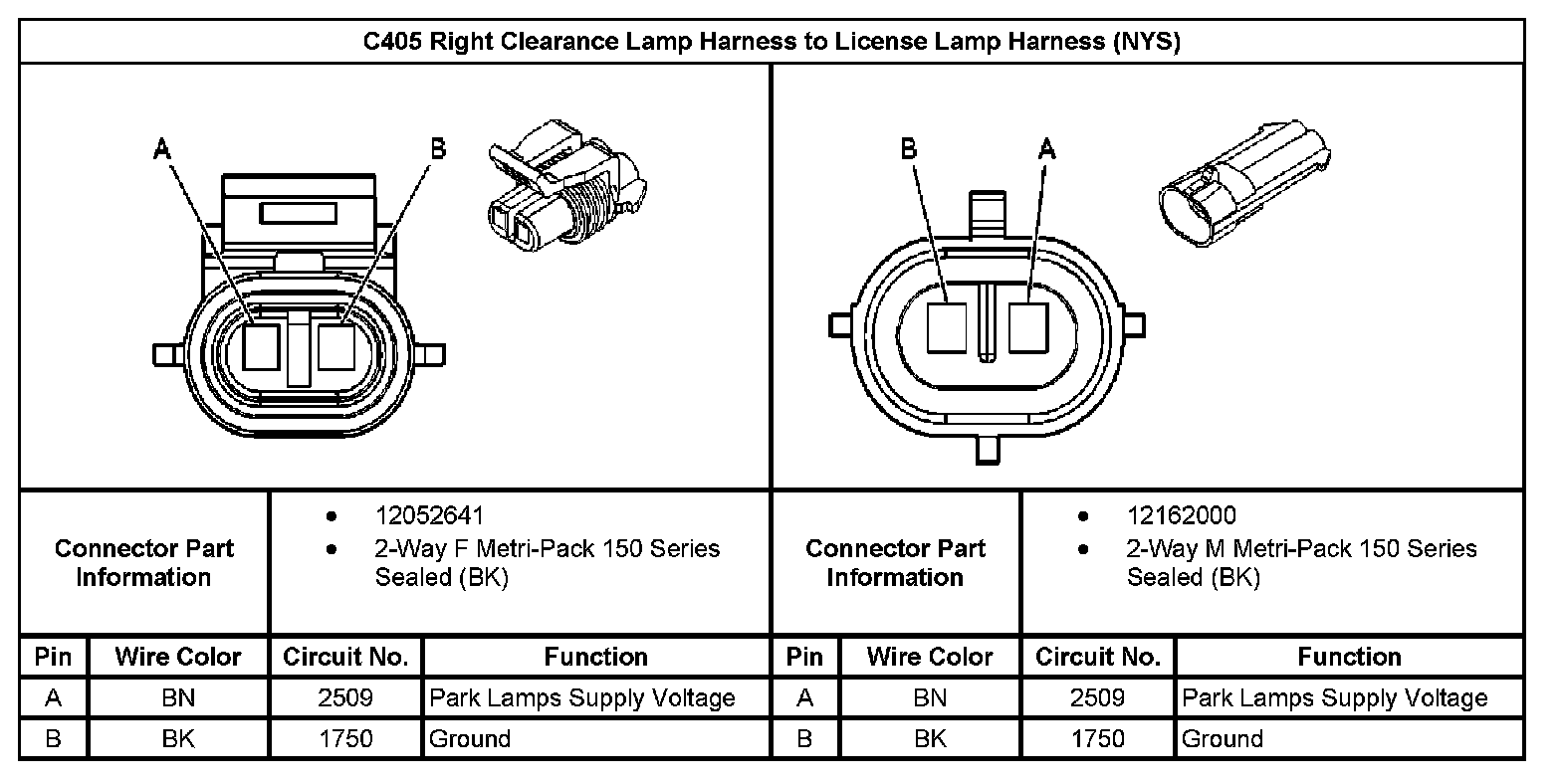

C405 Right Clearance Lamp Harness To License Lamp Harness (With RPO Code NYS):
