Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C300 - C399
>>
C321
C321

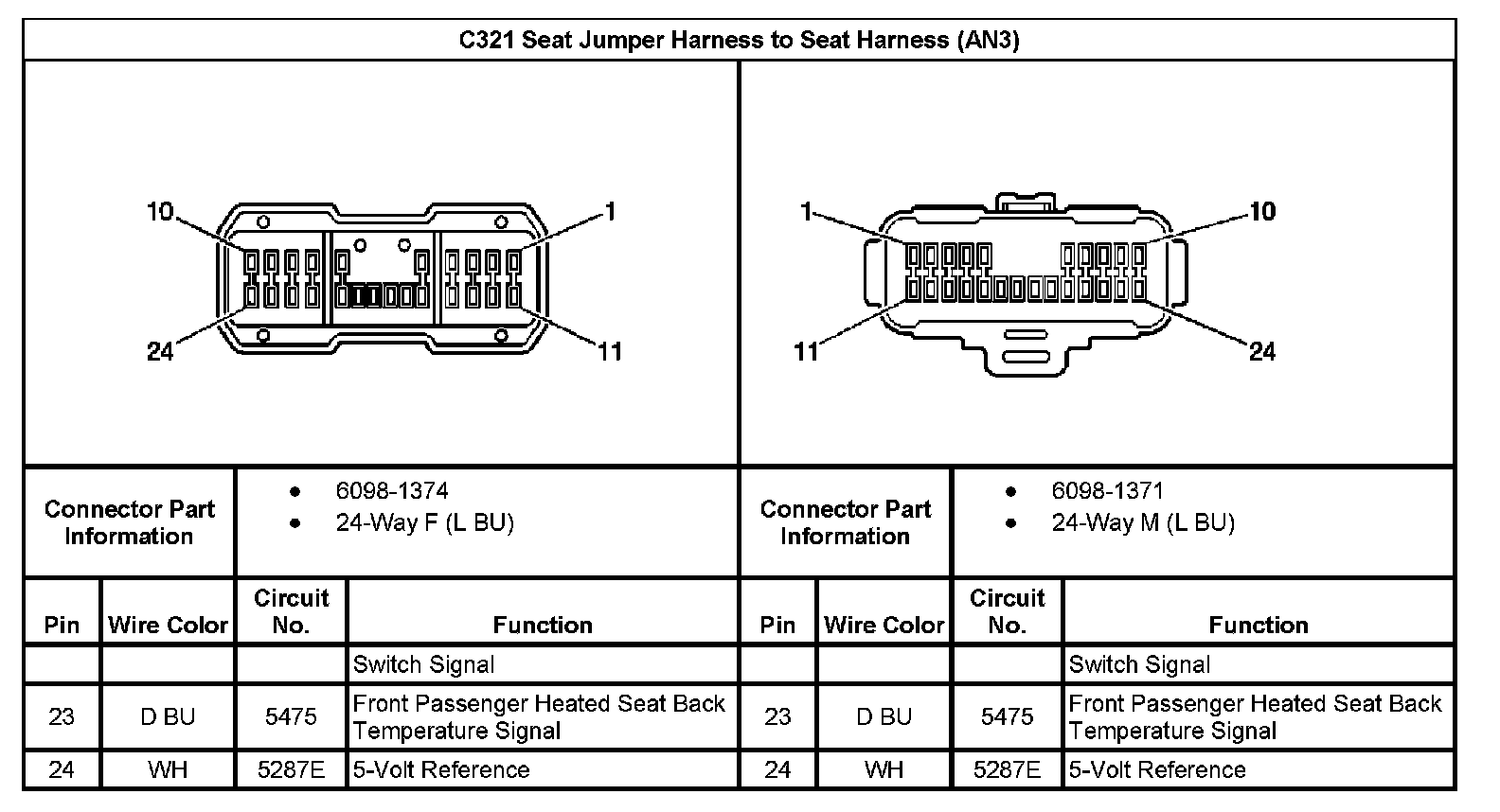

C321 Seat Jumper Harness To Seat Harness (With RPO Code AN3) Part 1:
C321 Seat Jumper Harness To Seat Harness (With RPO Code AN3) Part 2:
