Home
>>
Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C100 - C199
>>
C150
C150

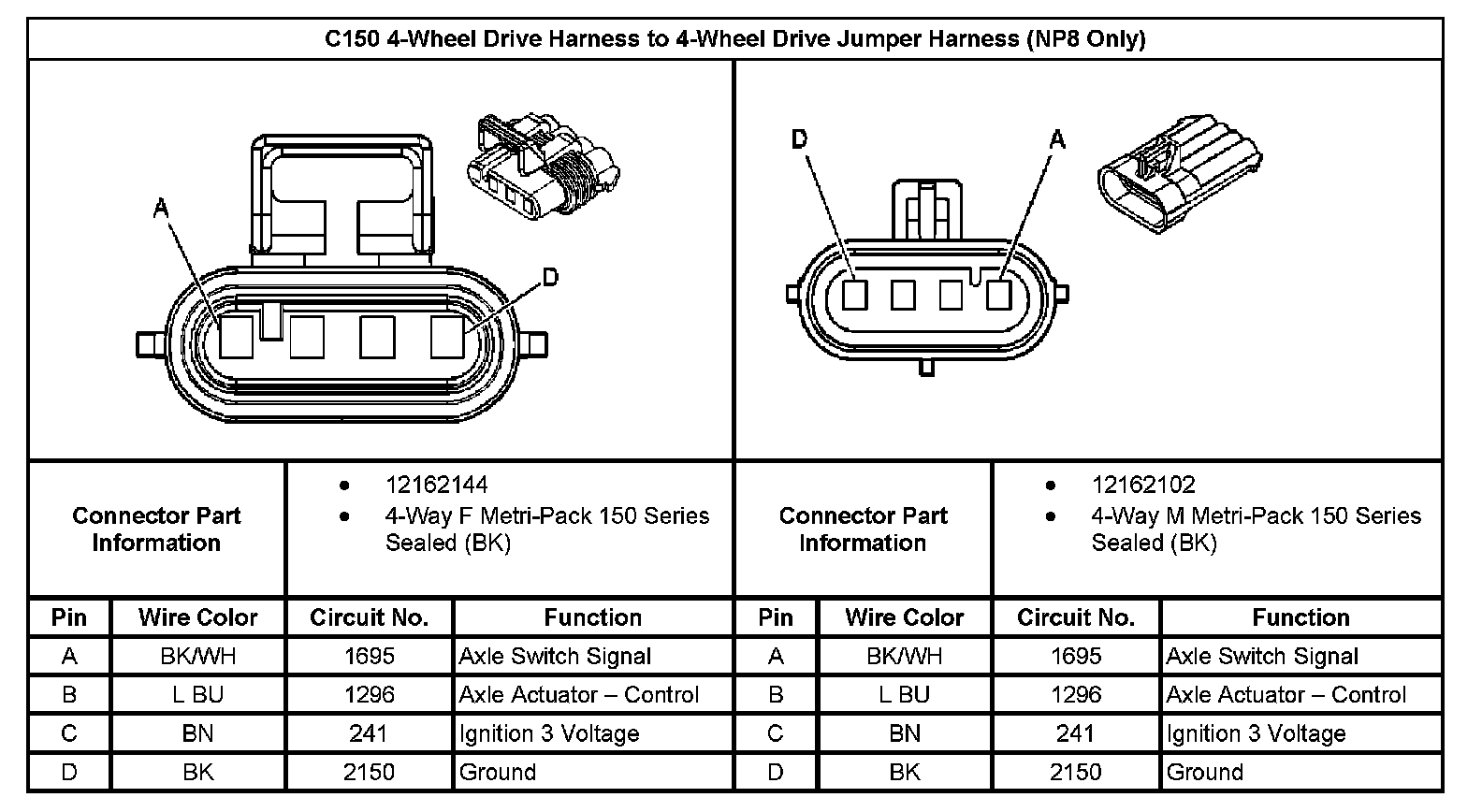

C150 4-Wheel Drive Harness To 4-Wheel Drive Jumper Harness (With RPO Code NP8 Only):
