Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Frame Rail View
Frame Rail View

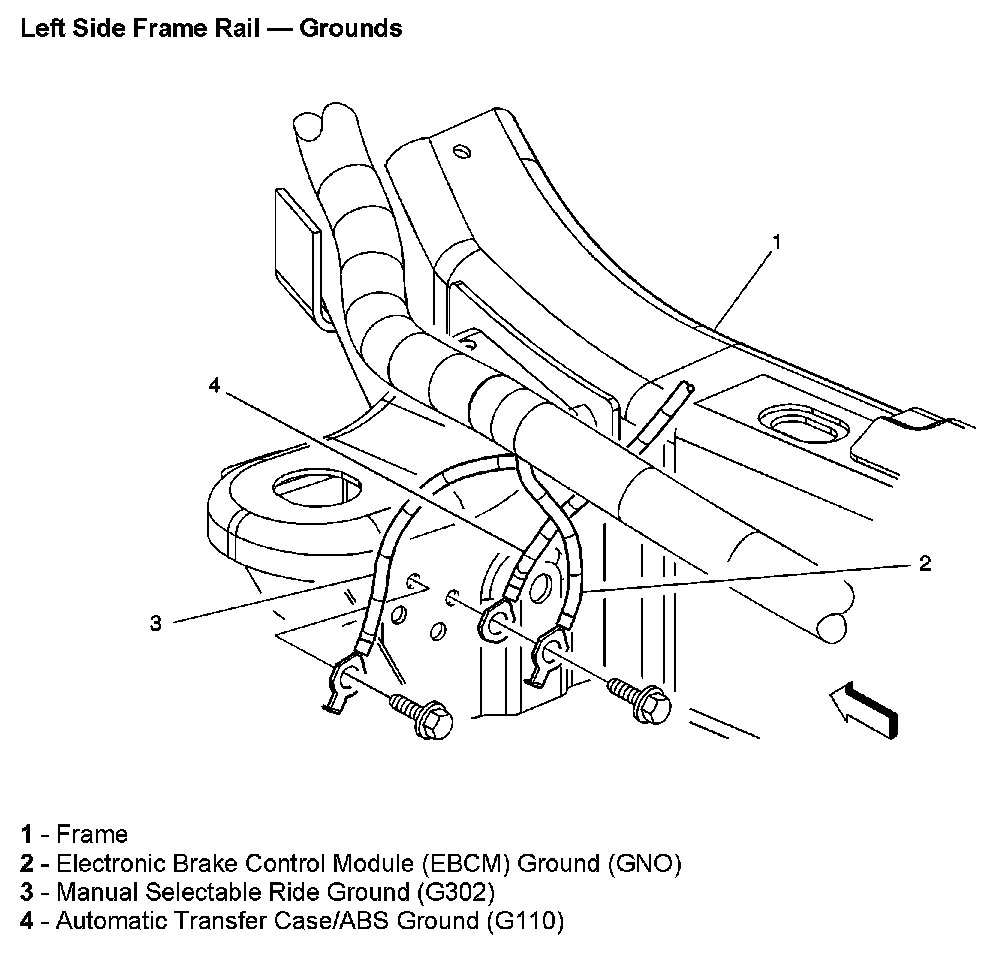

Left Side Frame Rail - Grounds:
