Inflatable Restraint Front Sensor

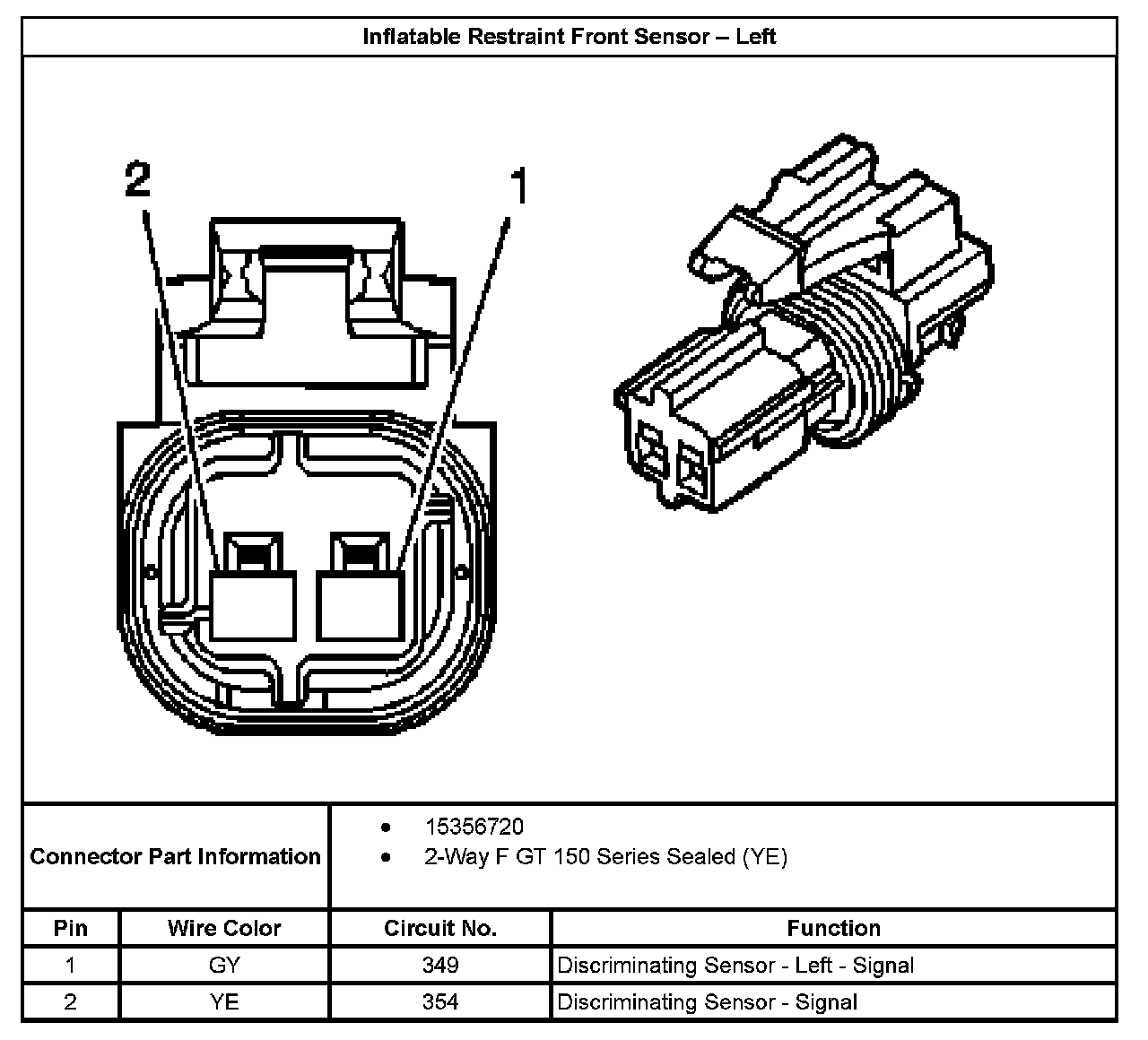

Inflatable Restraint Front Sensor - Left:



Inflatable Restraint Front Sensor - Right:
