Ambient Light Sensor: Diagrams

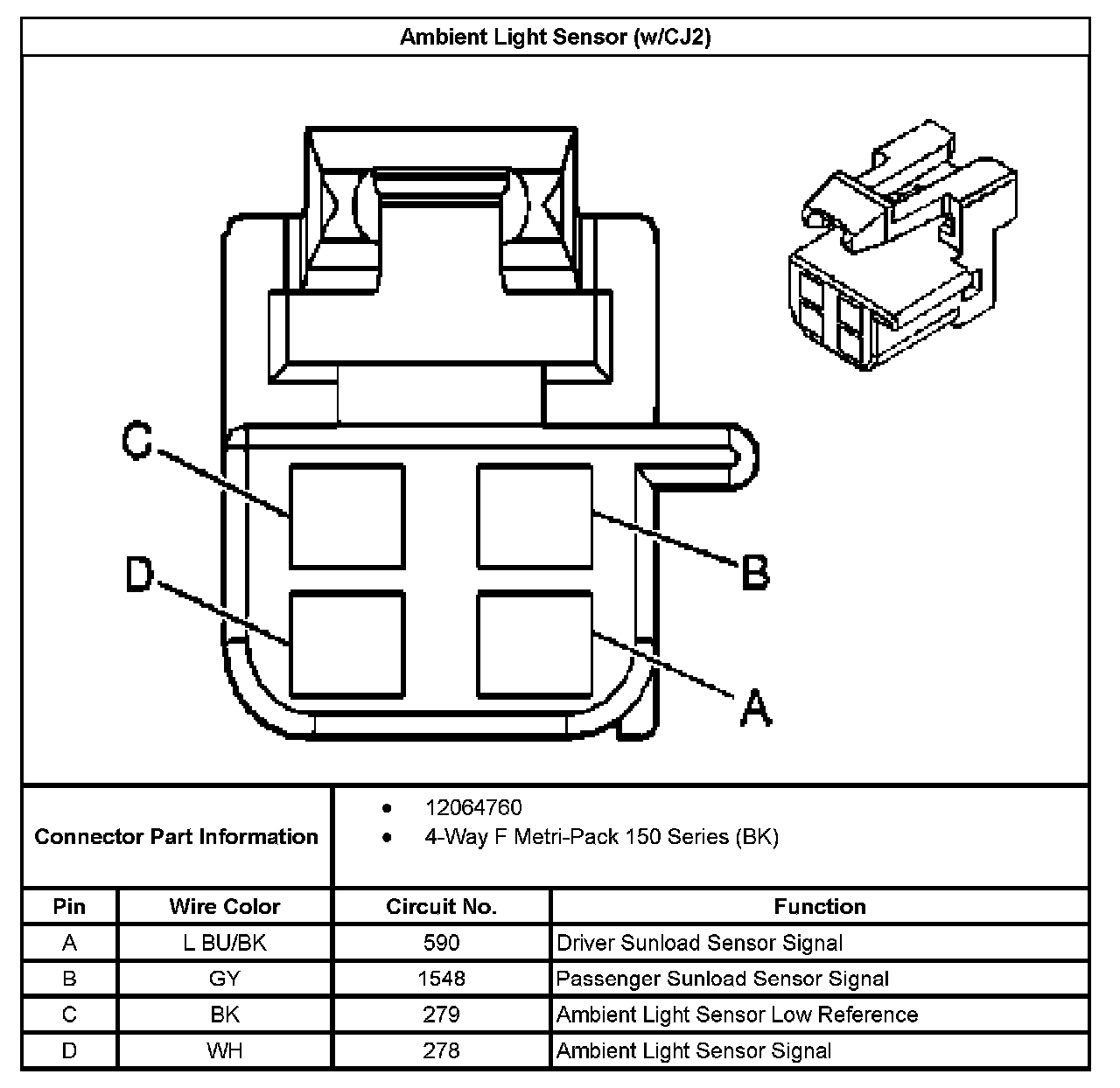

Ambient Light Sensor (With RPO Code CJ2):

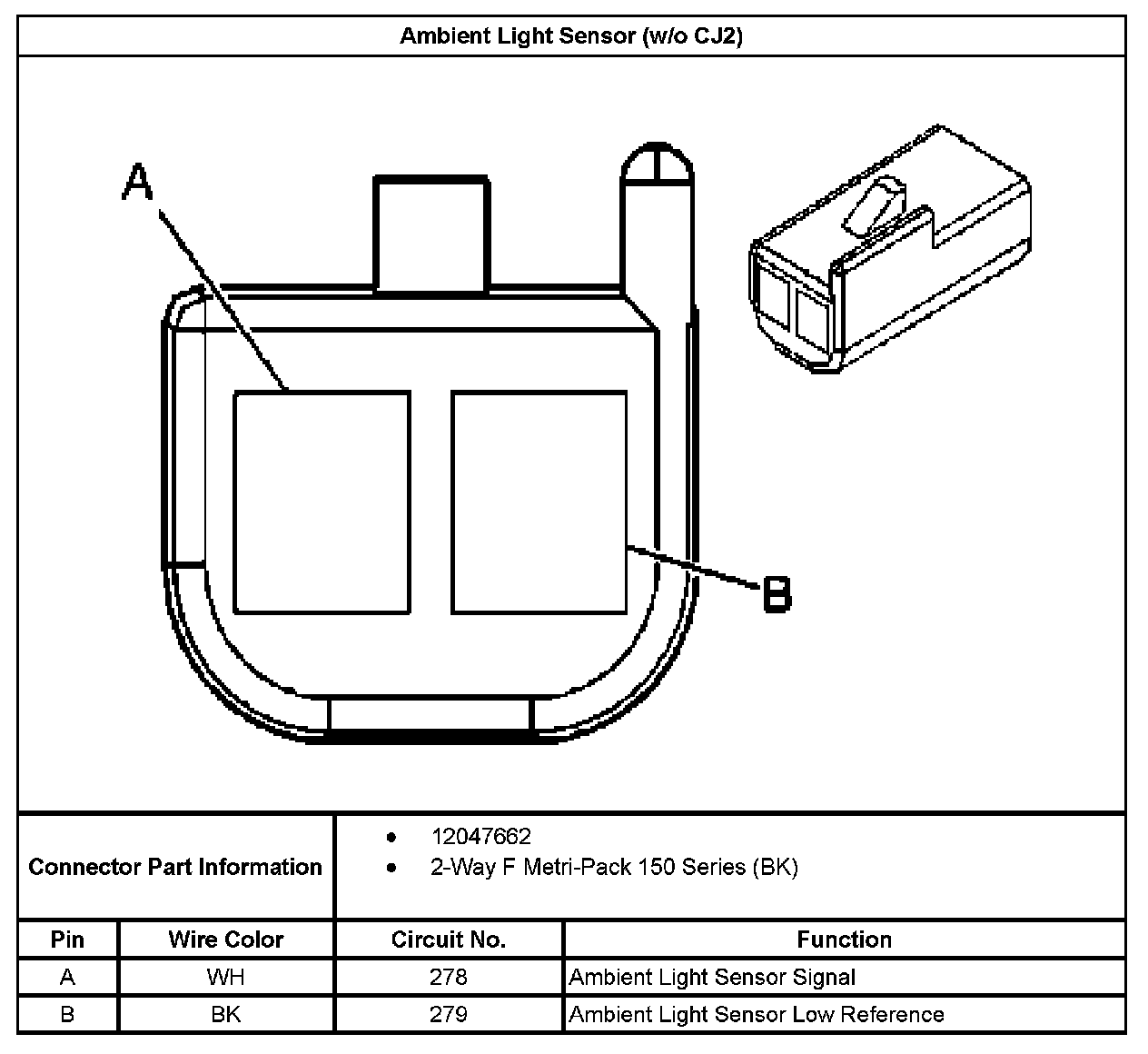

Ambient Light Sensor (Without RPO Code CJ2):
