Yaw Rate Sensor: Diagrams

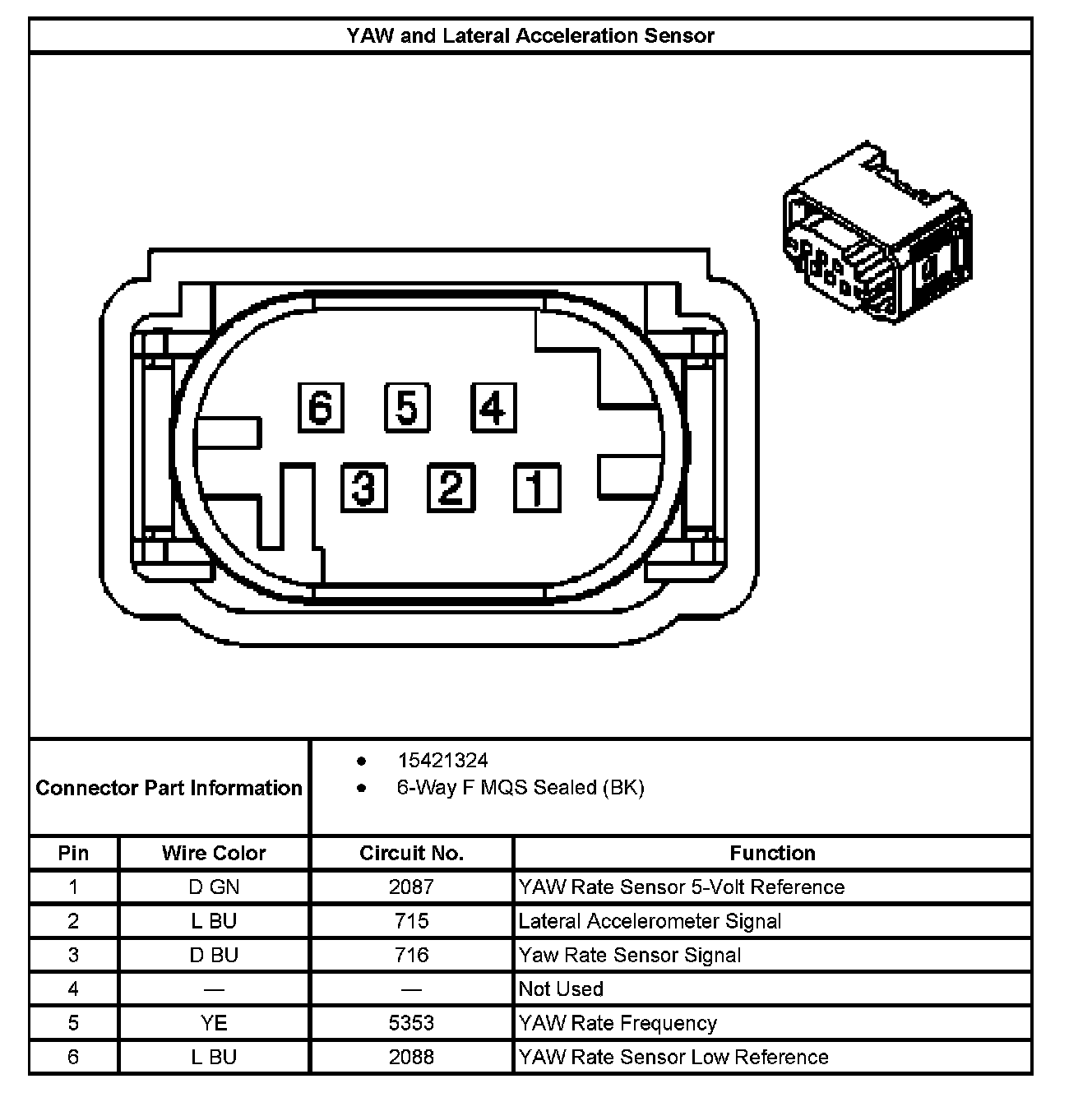

YAW and Lateral Acceleration Sensor:



Combination Yaw Rate Sensor/Lateral Accelerometer Sensor:
