Wheel Speed Sensor: Diagrams

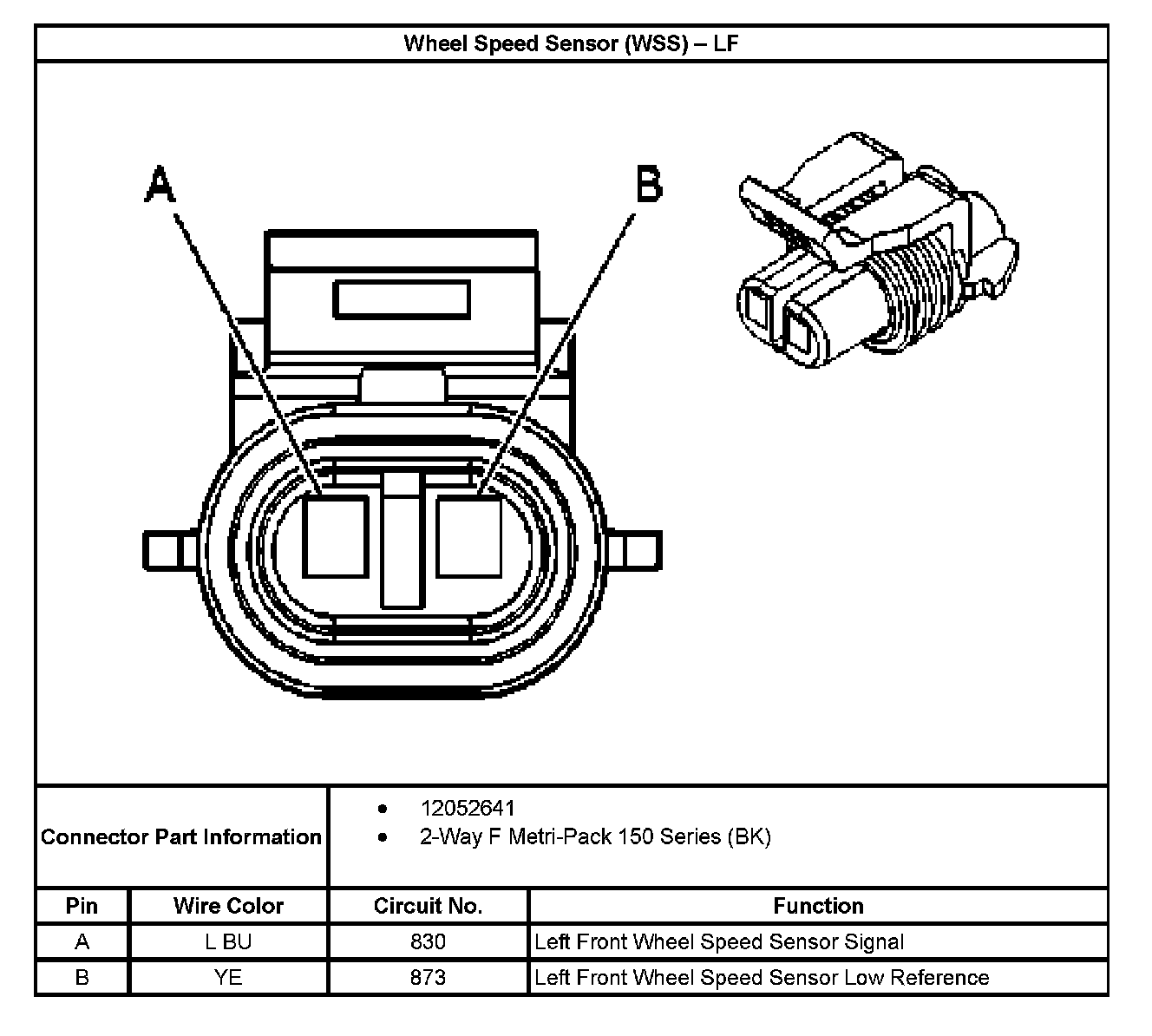

Wheel Speed Sensor (WSS) - LF:

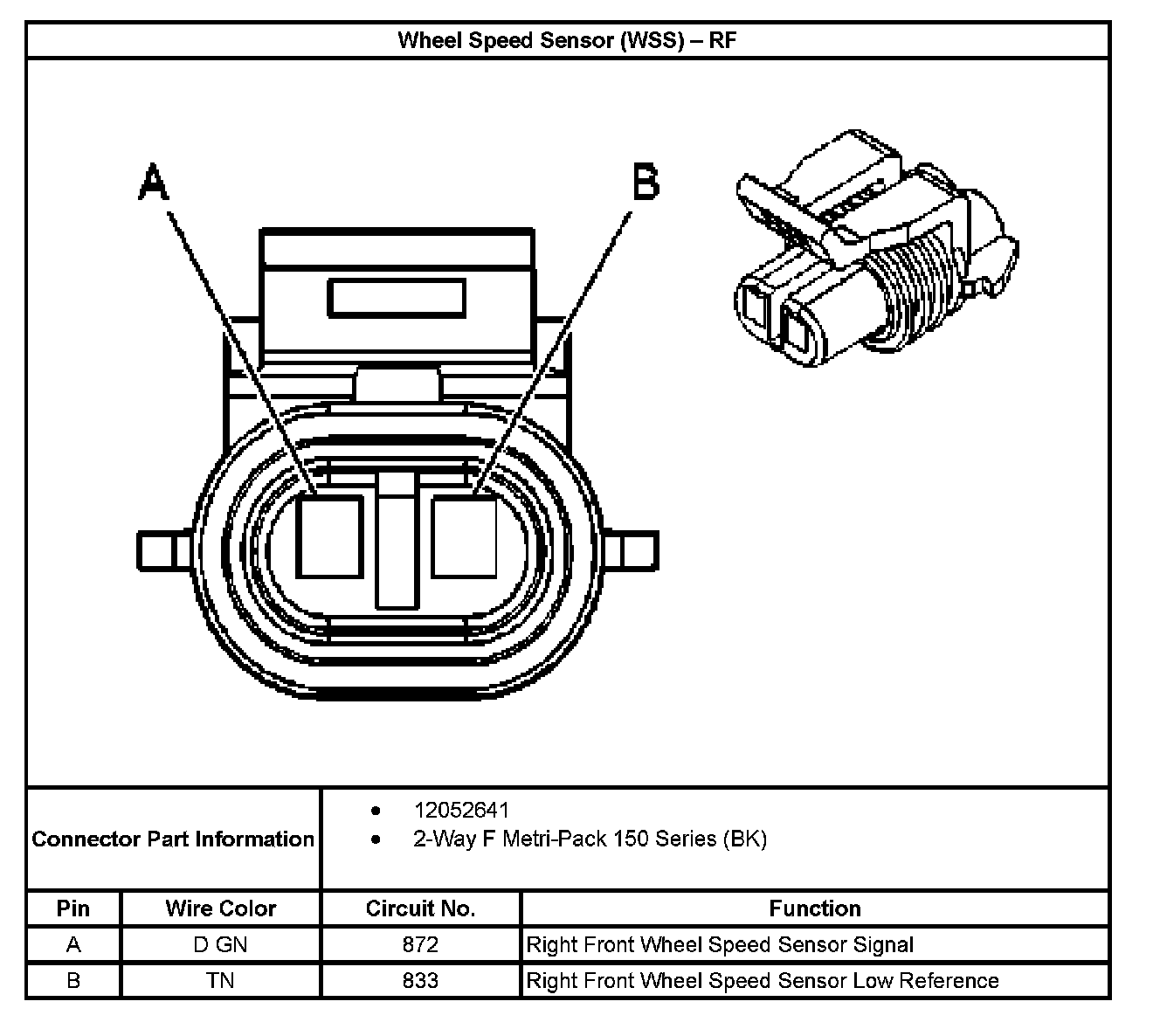

Wheel Speed Sensor (WSS) - RF:

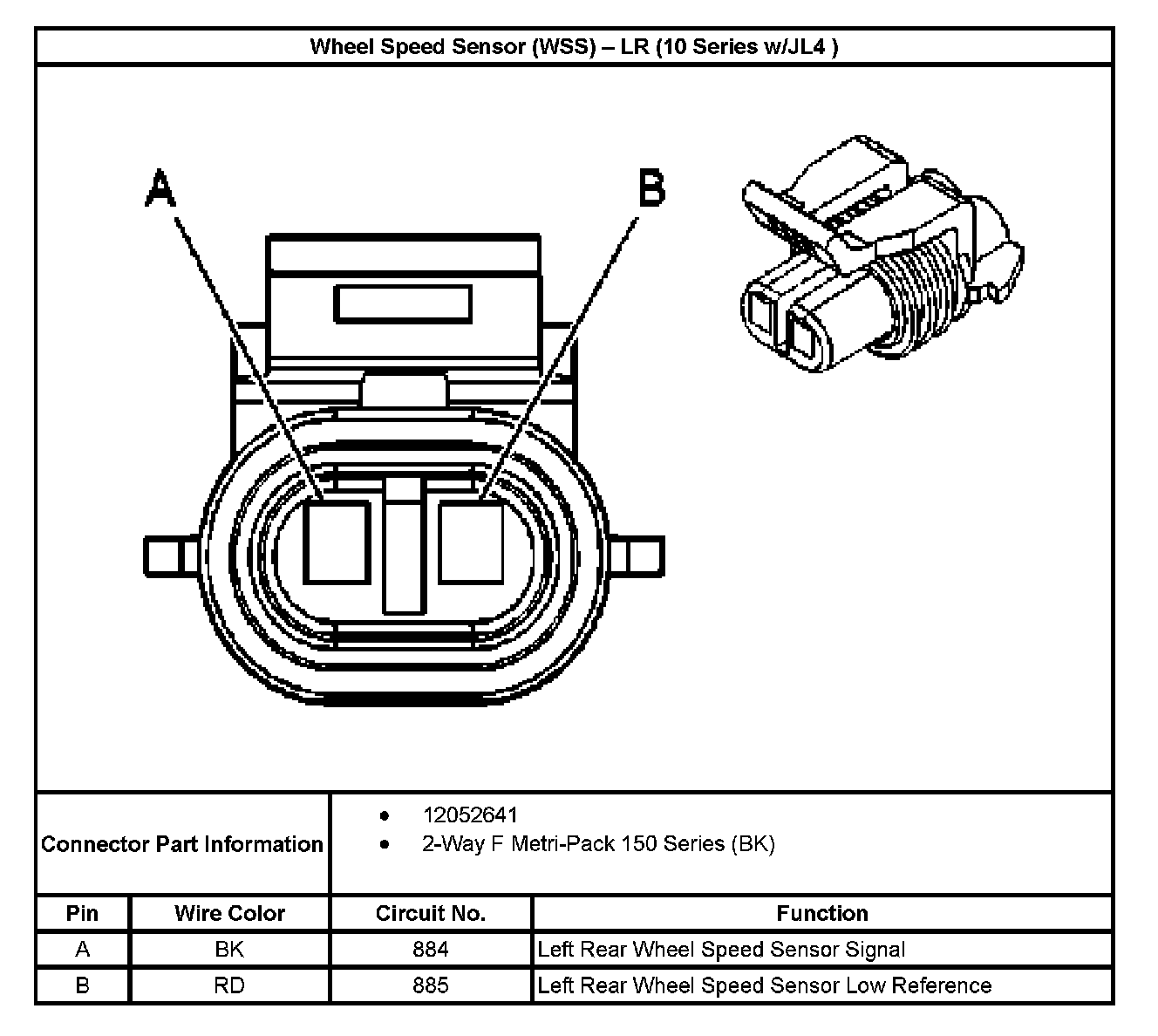

Wheel Speed Sensor (WSS) - LR (10 Series w/JL4 ):

Wheel Speed Sensor (WSS) - RR (10 Series w/JL4):

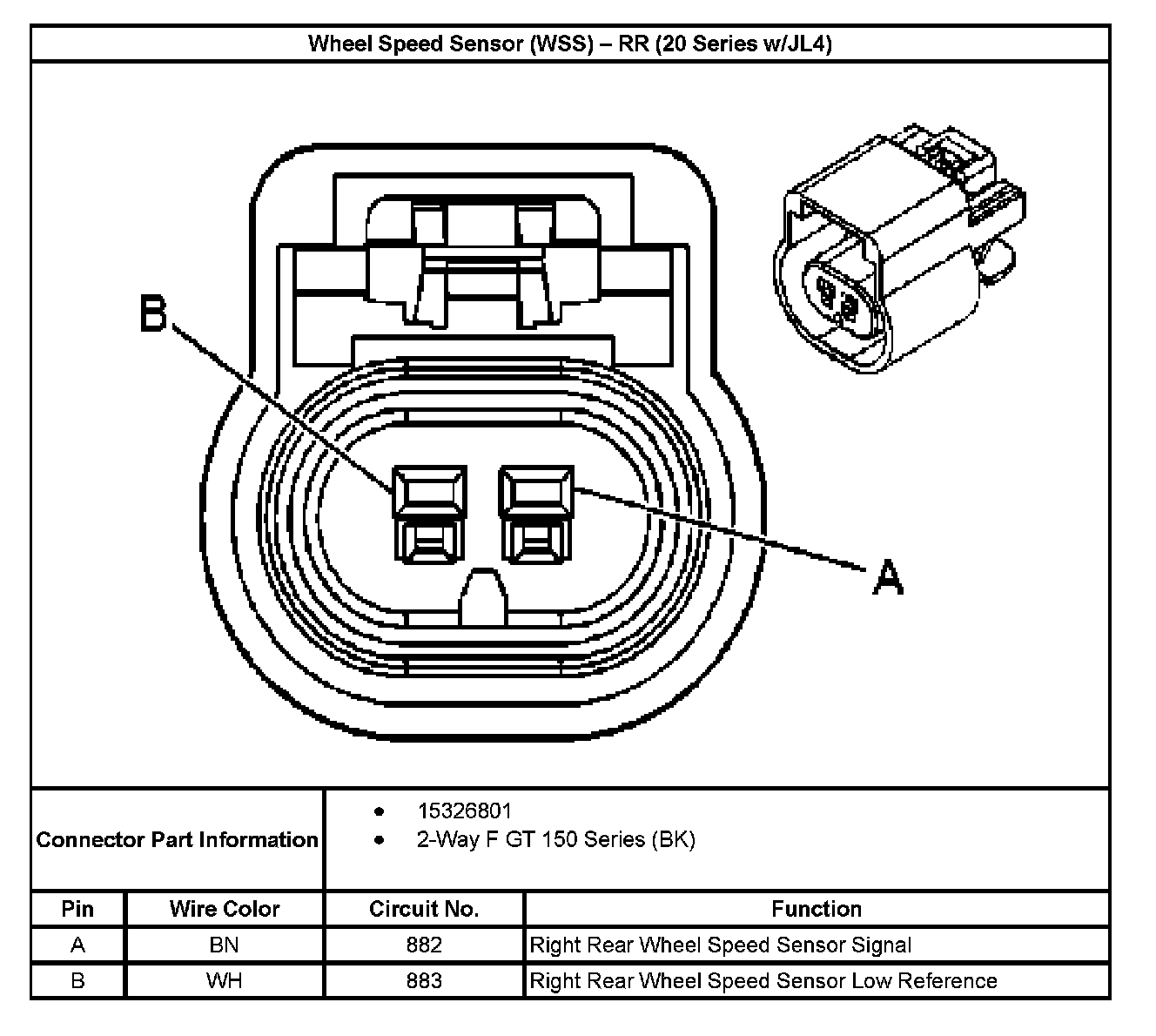

Wheel Speed Sensor (WSS) - RR (20 Series w/JL4):
