Traction Control Switch: Diagrams

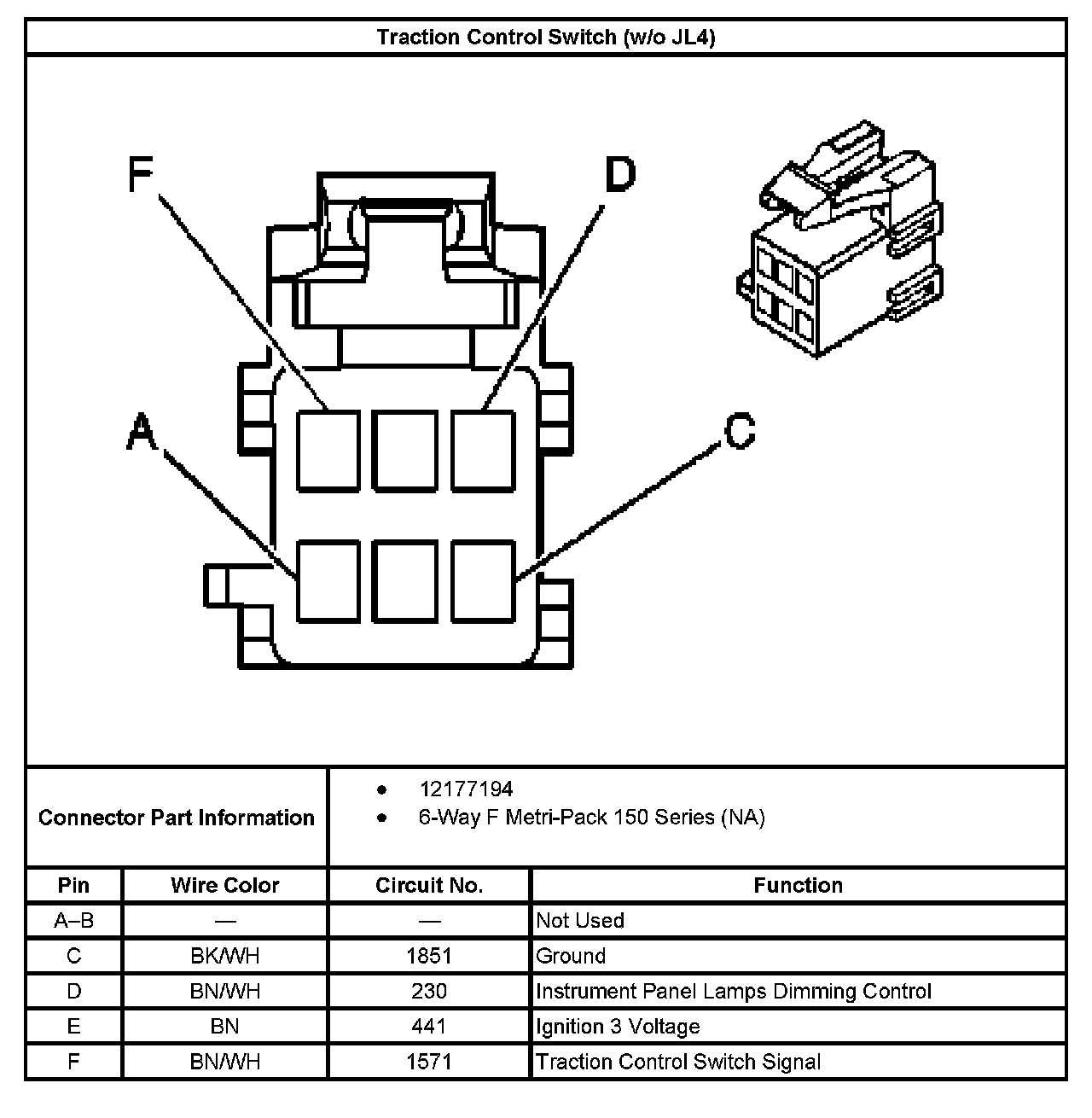

Traction Control Switch (w/o JL4):

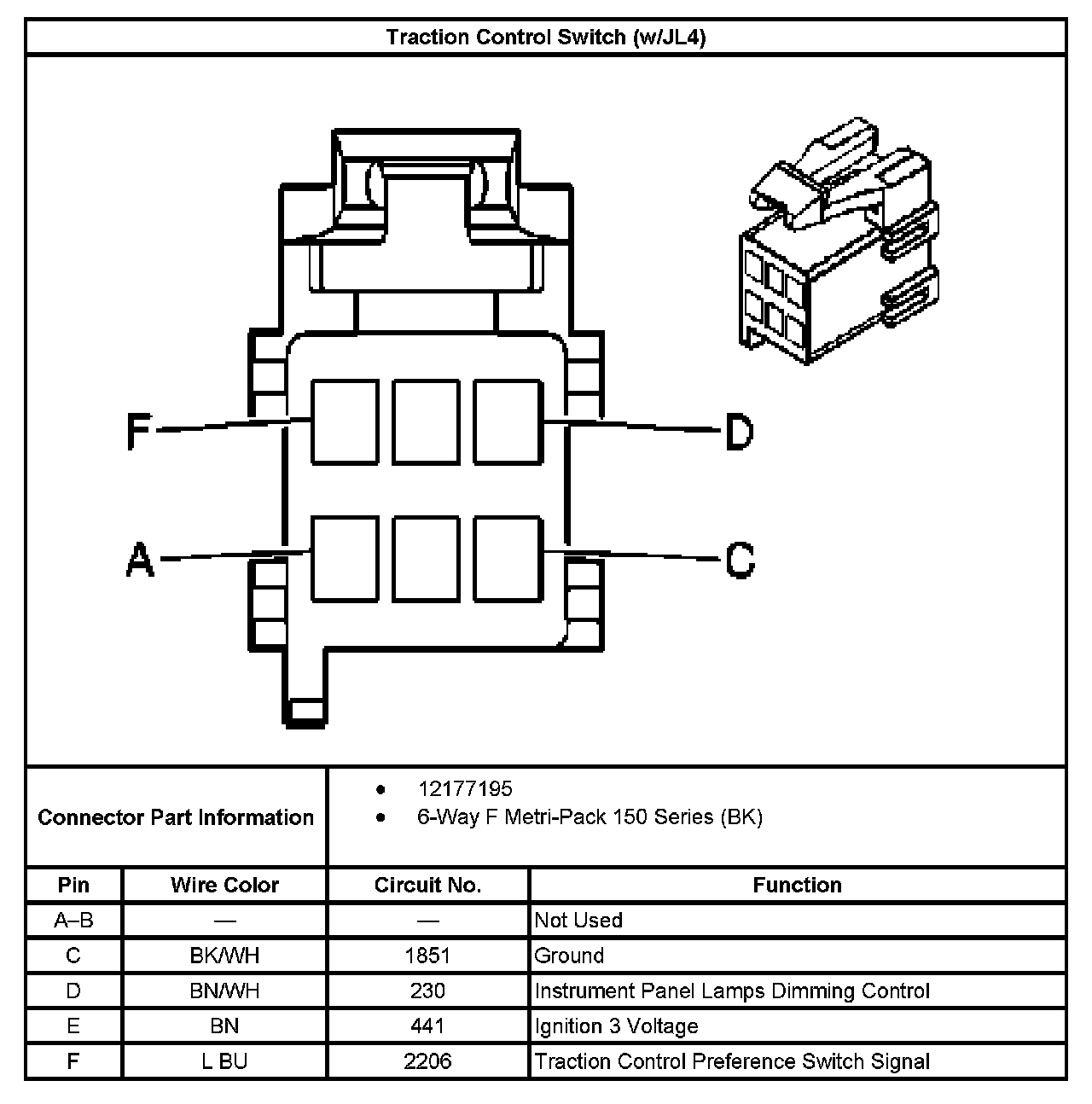

Traction Control Switch (w/JL4):
