Steering Control Module: Diagrams

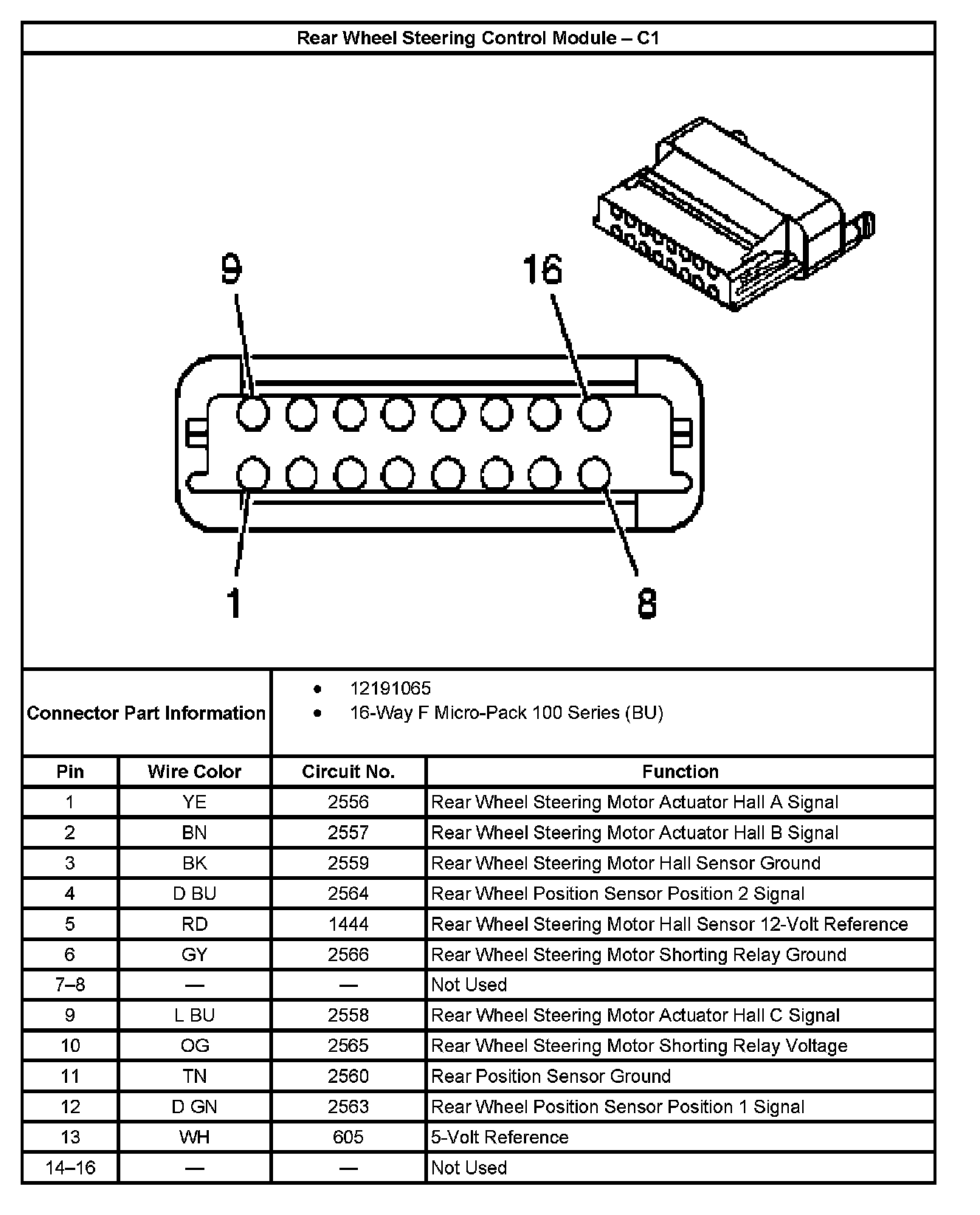

Rear Wheel Steering Control Module - C1:

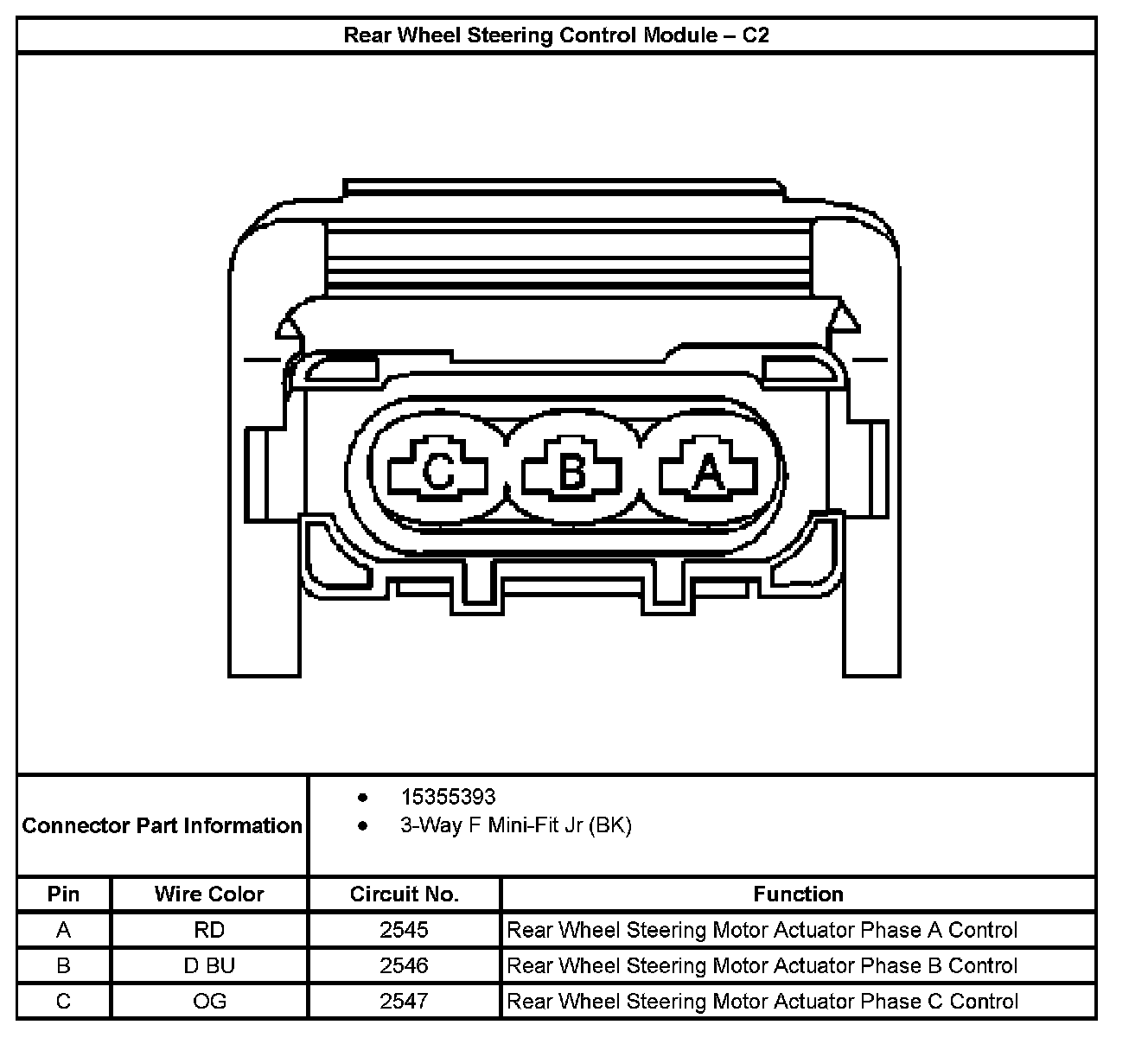

Rear Wheel Steering Control Module - C2:

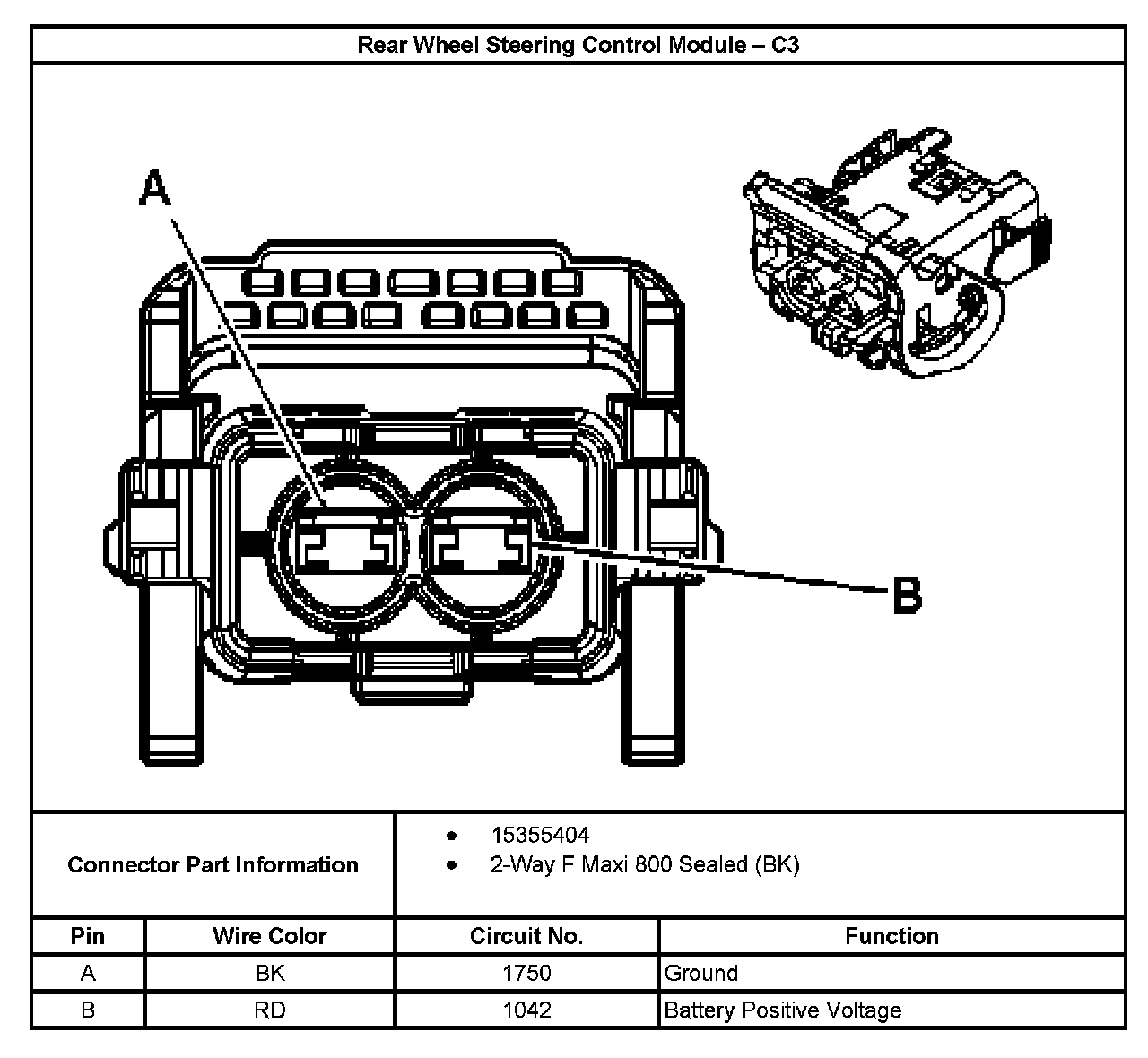

Rear Wheel Steering Control Module - C3:

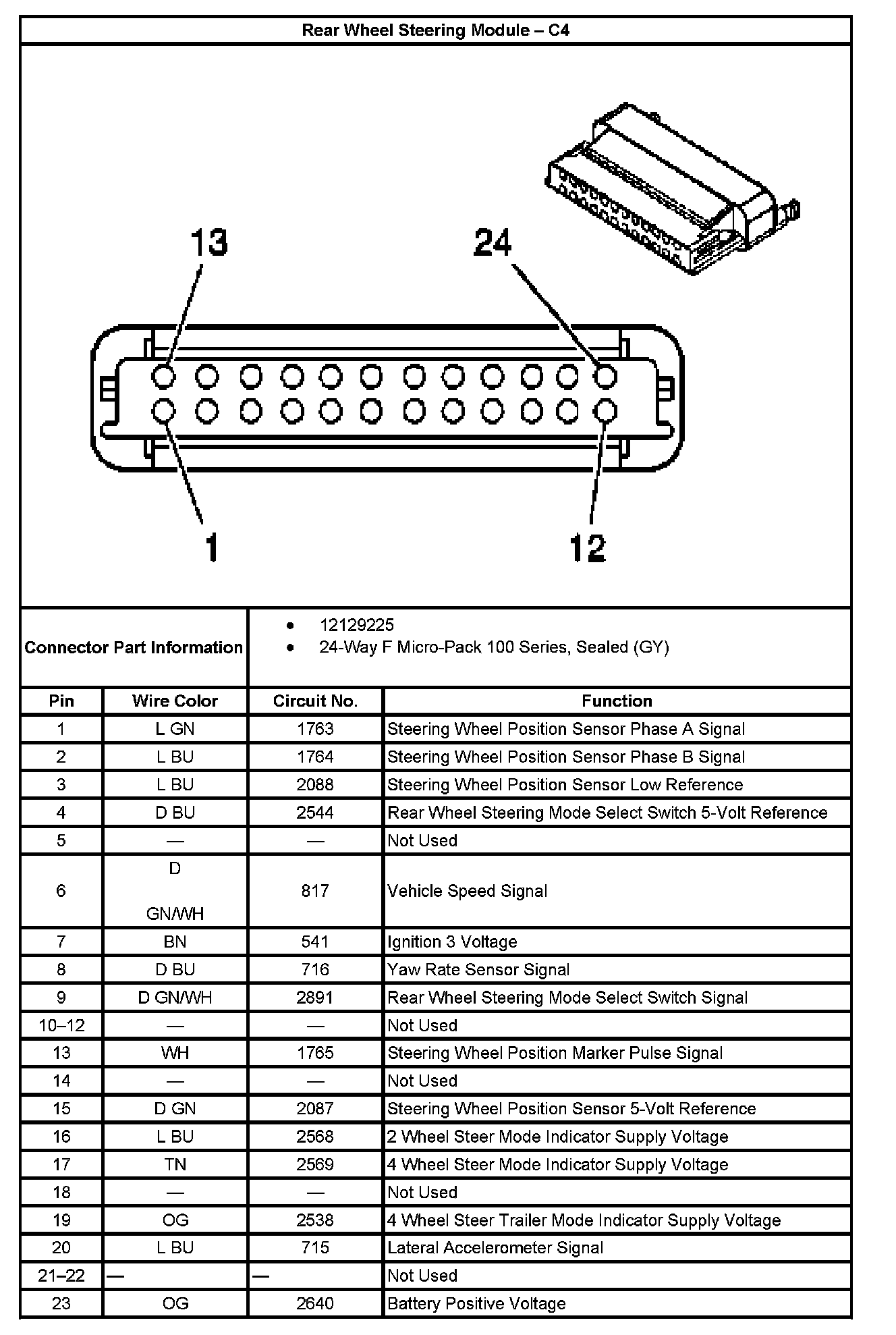

Rear Wheel Steering Module - C4:

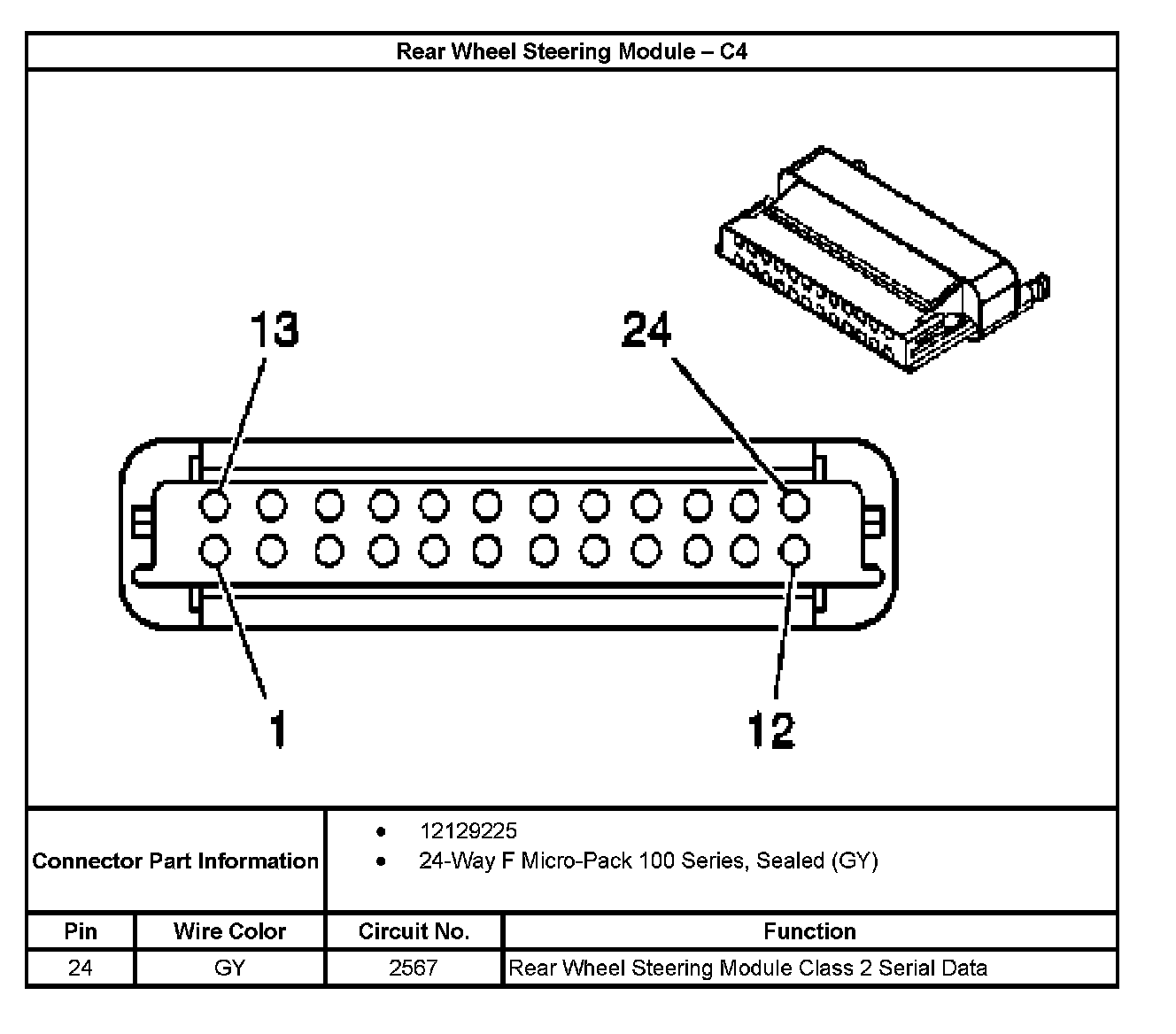

Rear Wheel Steering Module - C4:
