Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Fluid Pressure Sensor/Switch >> Diagrams >> 4L60-E/4L65-E

4L60-E/4L65-E

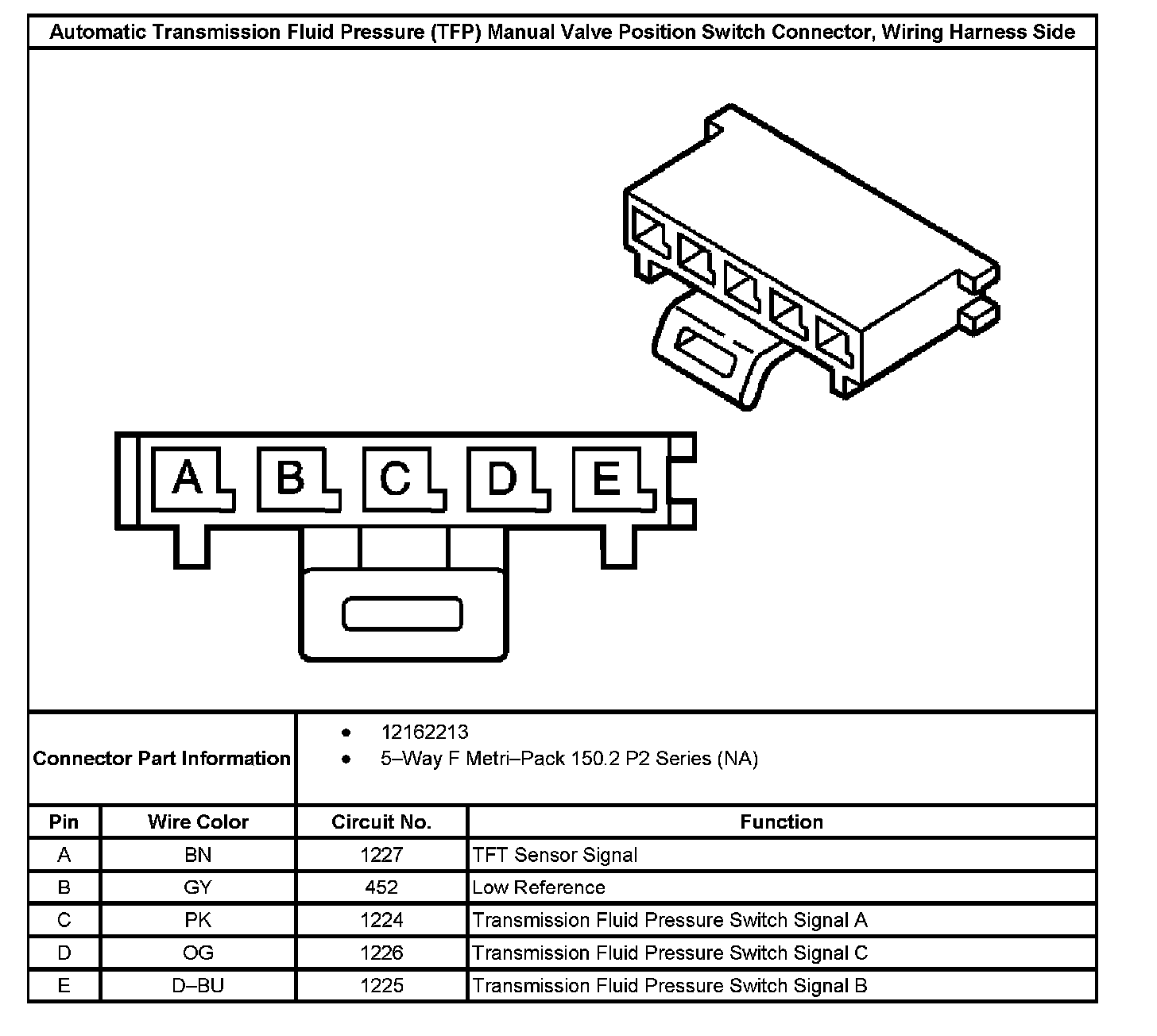

Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side:
