Air Delivery Improper - Auxiliary

AIR DELIVERY IMPROPER - AUXILIARY

TEST DESCRIPTION

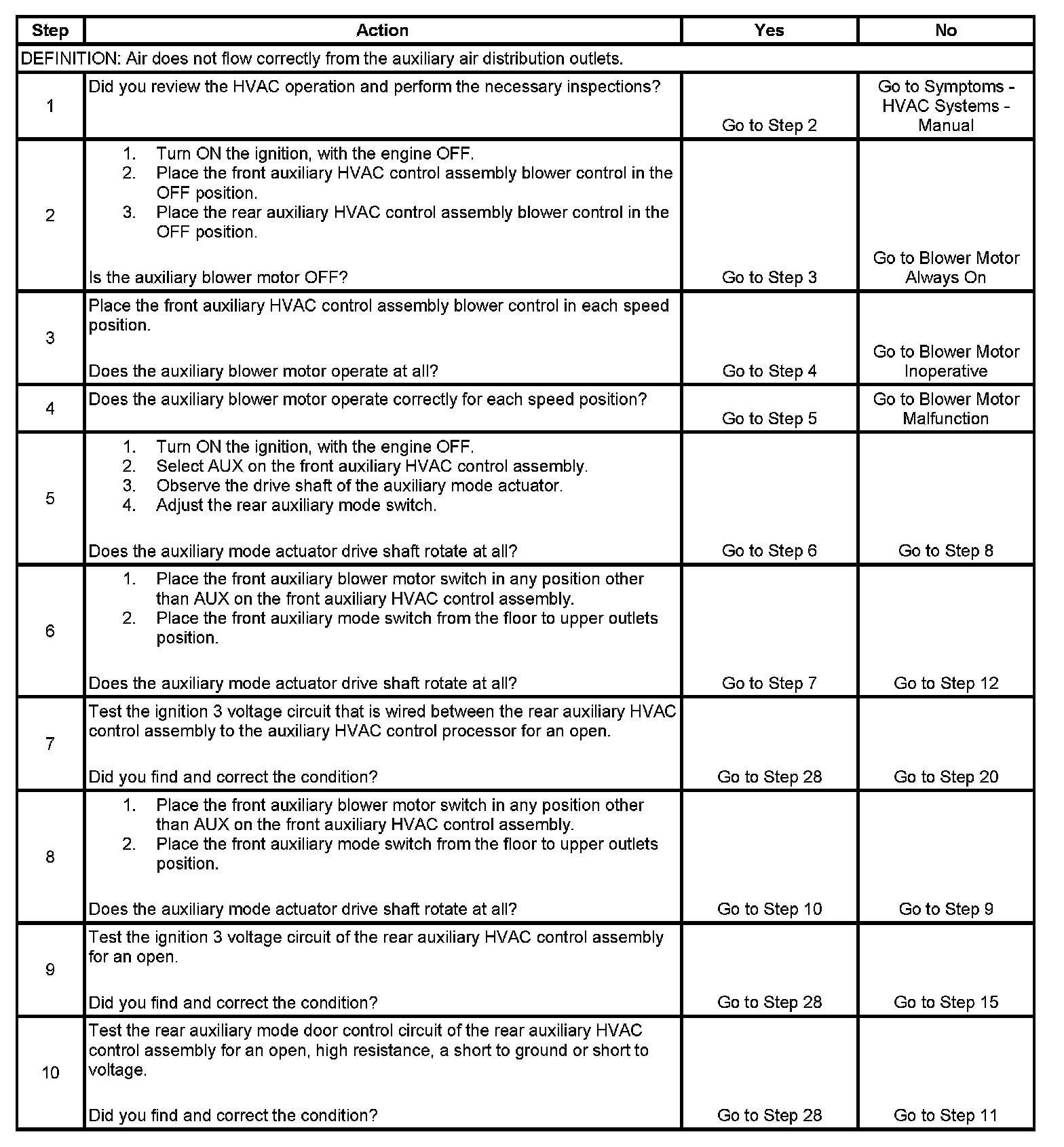

Steps 1-10:

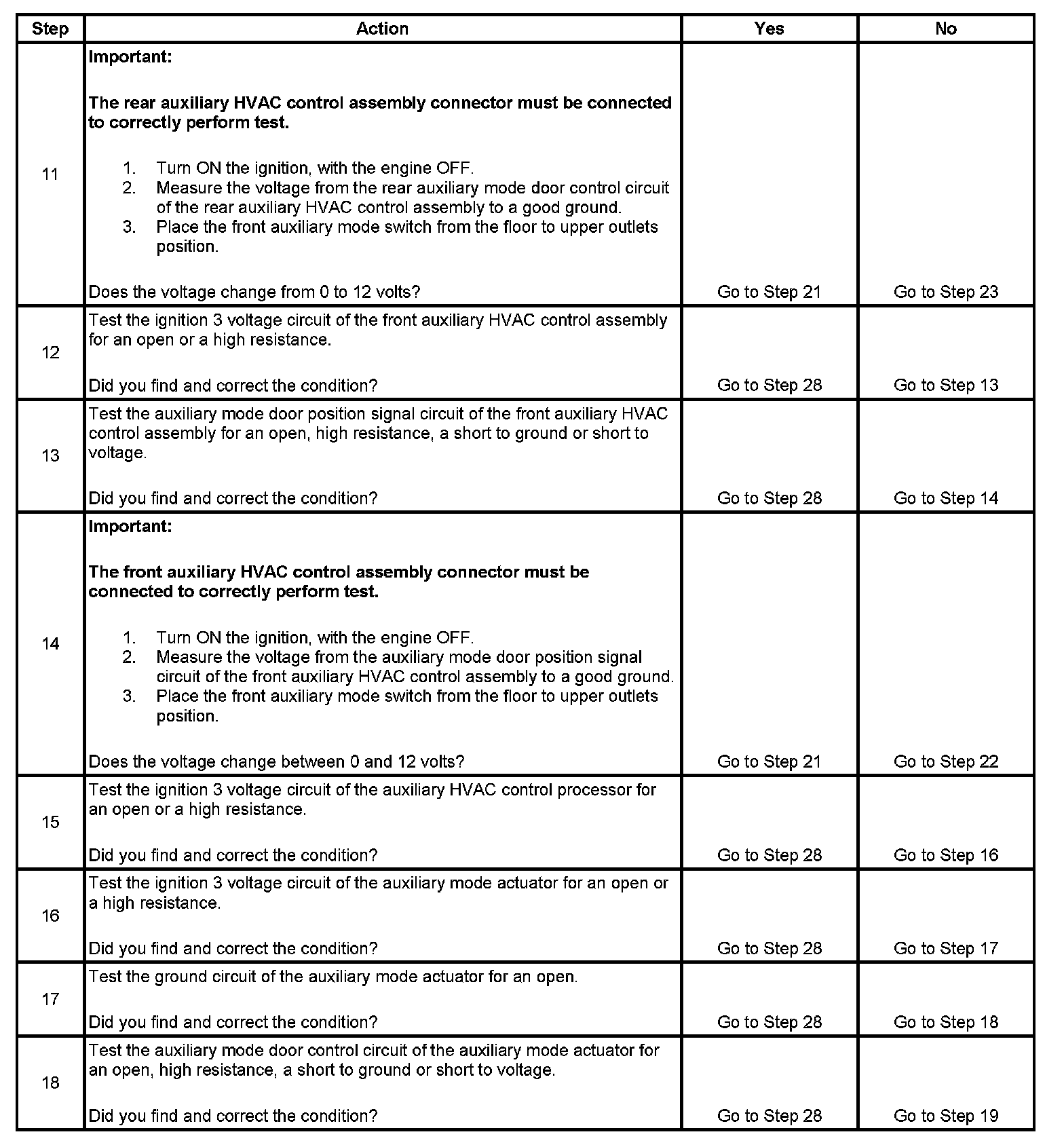

Steps 11-18:

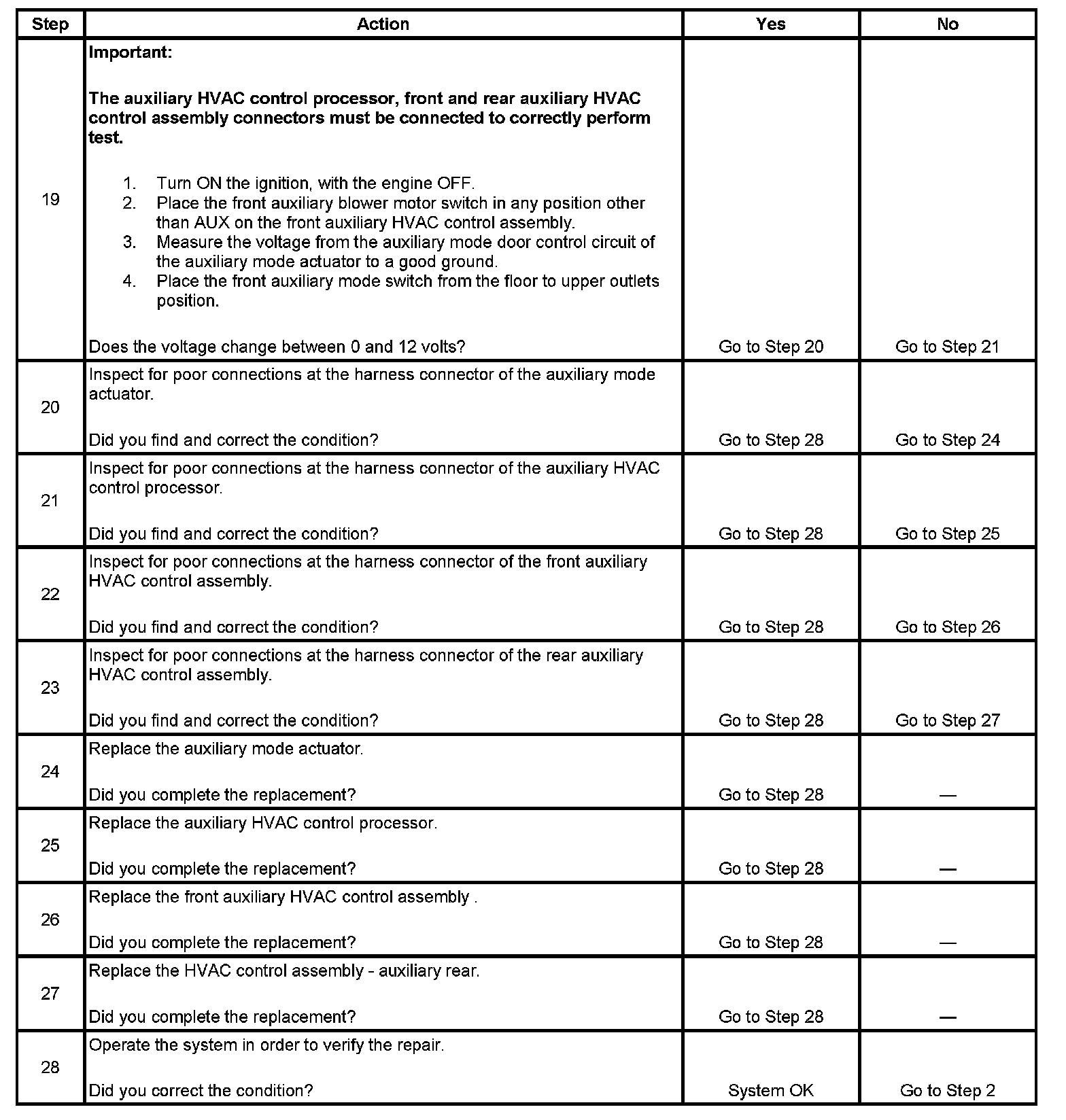

Steps 19-28:

The numbers below refer to the step numbers on the diagnostic table.
5. This step tests for an inoperative auxiliary mode actuator in one mode positions or in the wrong mode positions from the front auxiliary HVAC control module.
6. This step tests for an inoperative auxiliary mode actuator in one mode positions or in the wrong mode positions from the rear auxiliary HVAC control module.
