With Aux A/C and Electric Cooling Fan

Air Conditioning (A/C) System Performance Test (with Aux A/C and Electric Cooling Fan)

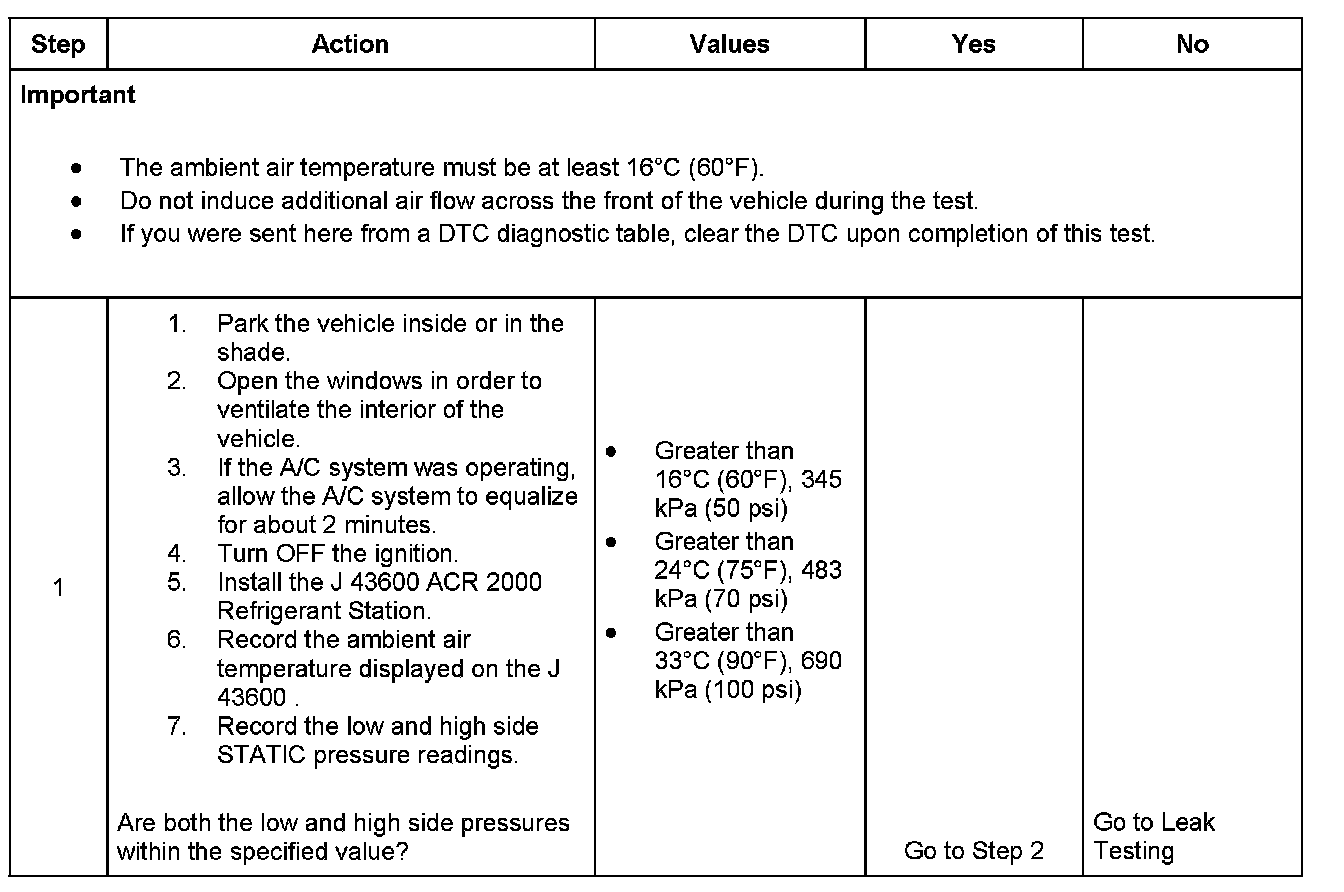

Step 1:

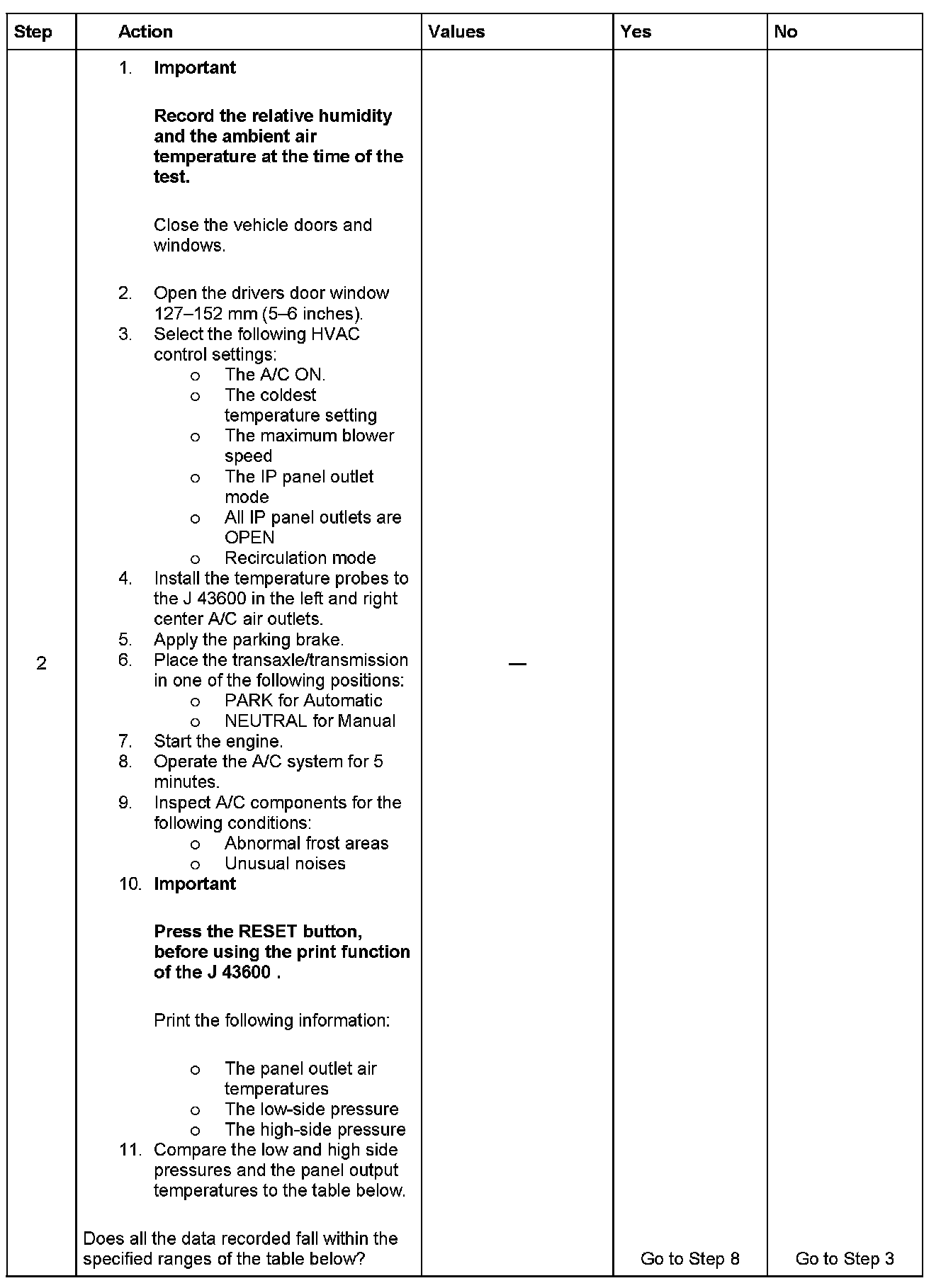

Step 2:

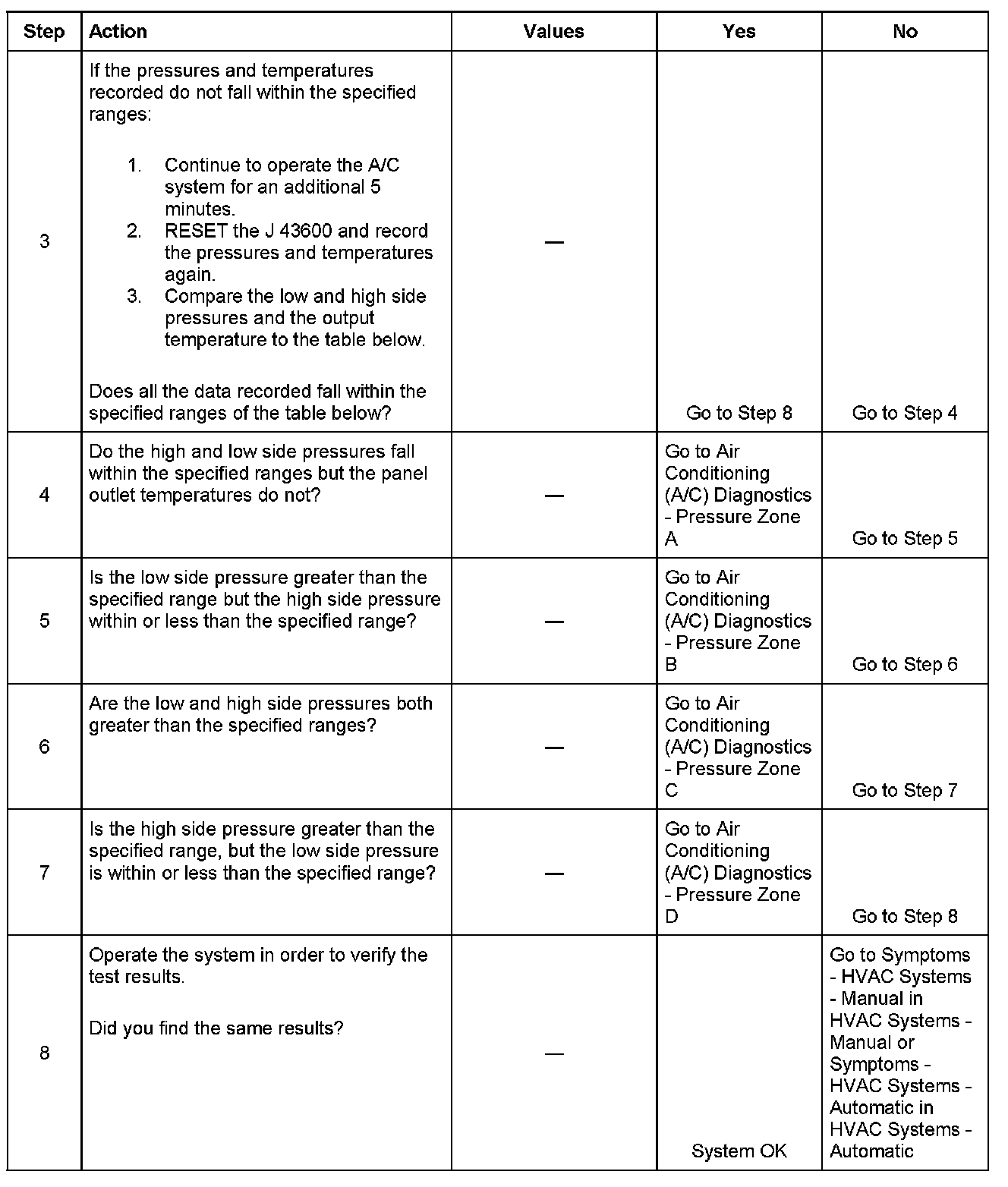

Steps 3 - 8:

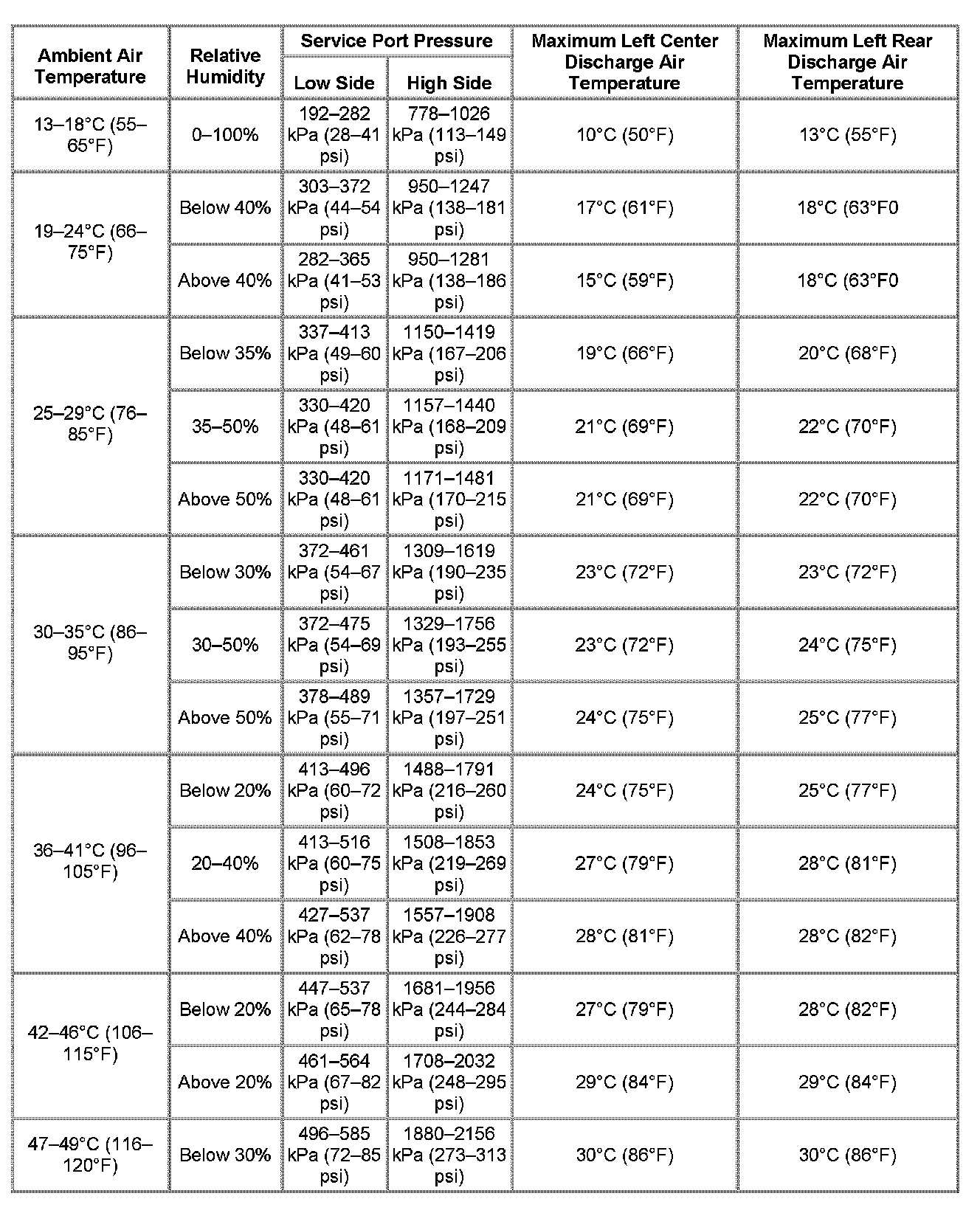

Performance Table:

Test Description
The numbers below refer to the step numbers on the diagnostic table.
1. This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.
2. This step measures the performance of the A/C system.
3. This step is to allow for vehicle variations as well as high ambient air temperatures.
