Radiator Cooling Fan Motor: Service and Repair

Cooling Fan Motor Replacement - Electric

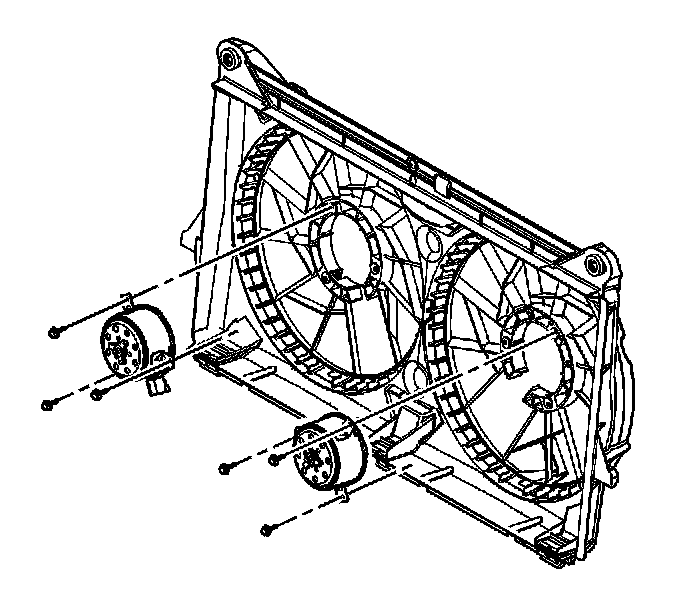

Removal Procedure





1. Remove the cooling blade(s).
2. Remove the cooling fan motor bolts.
3. Remove the cooling fan motor(s).

Installation Procedure





1. Install the cooling fan motor(s).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the cooling fan motor bolts.
^ Tighten the bolts to 10 Nm (89 inch lbs.).
3. Install the cooling fan blade(s).
