SP206

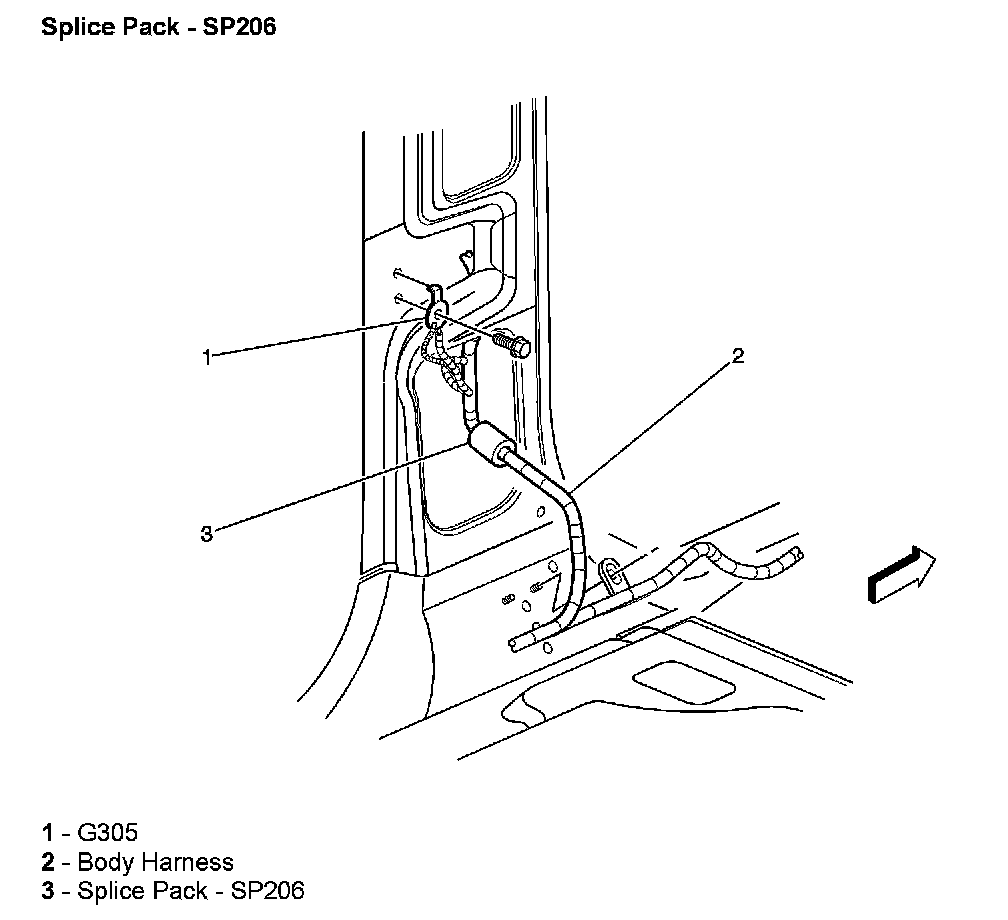

Splice Pack - SP206:

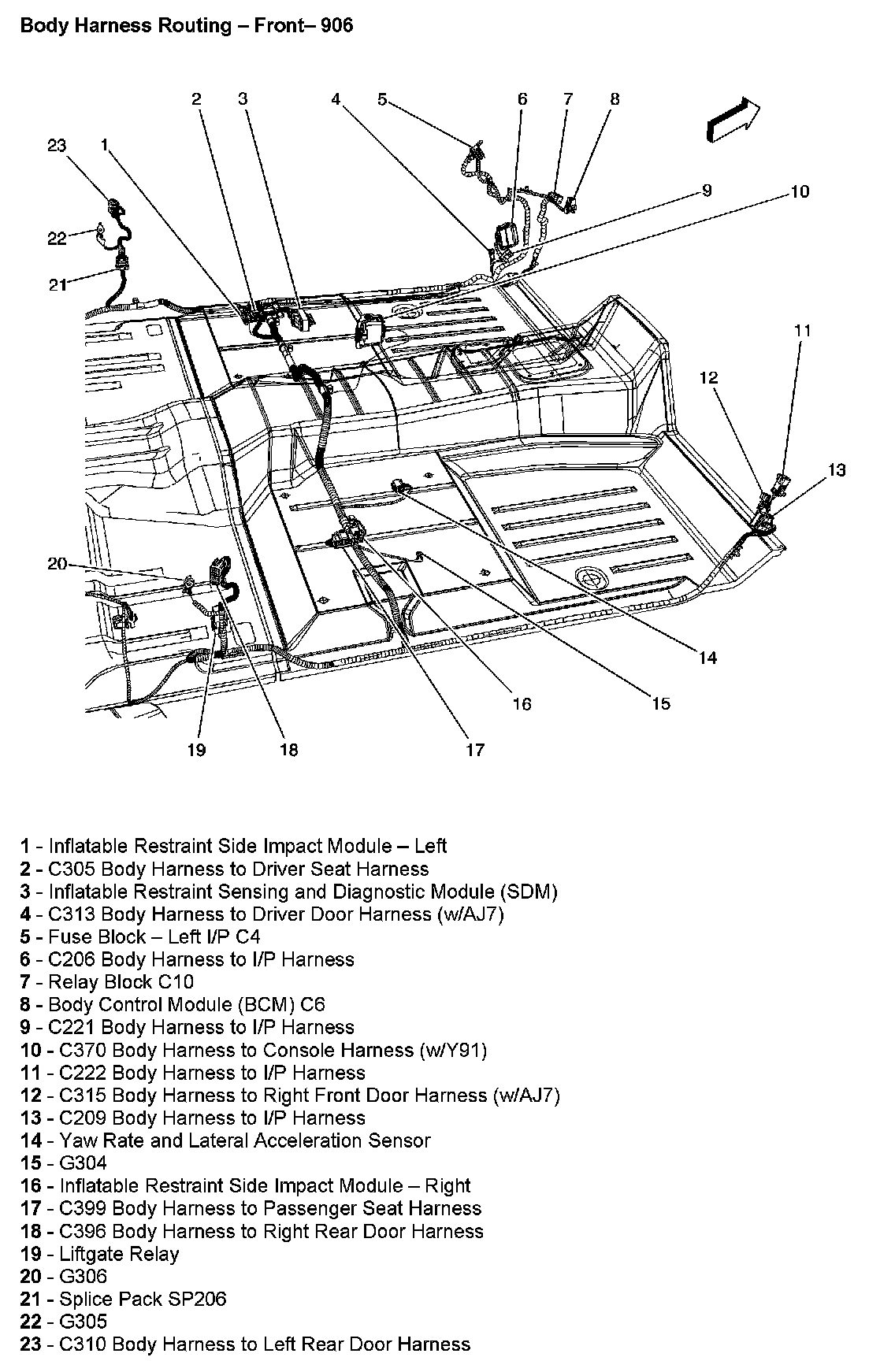

Body Harness Routing - Front - 906:



Body Harness Routing - Front - 706:
