Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine View
>>
Rear of the Engine
Rear of the Engine

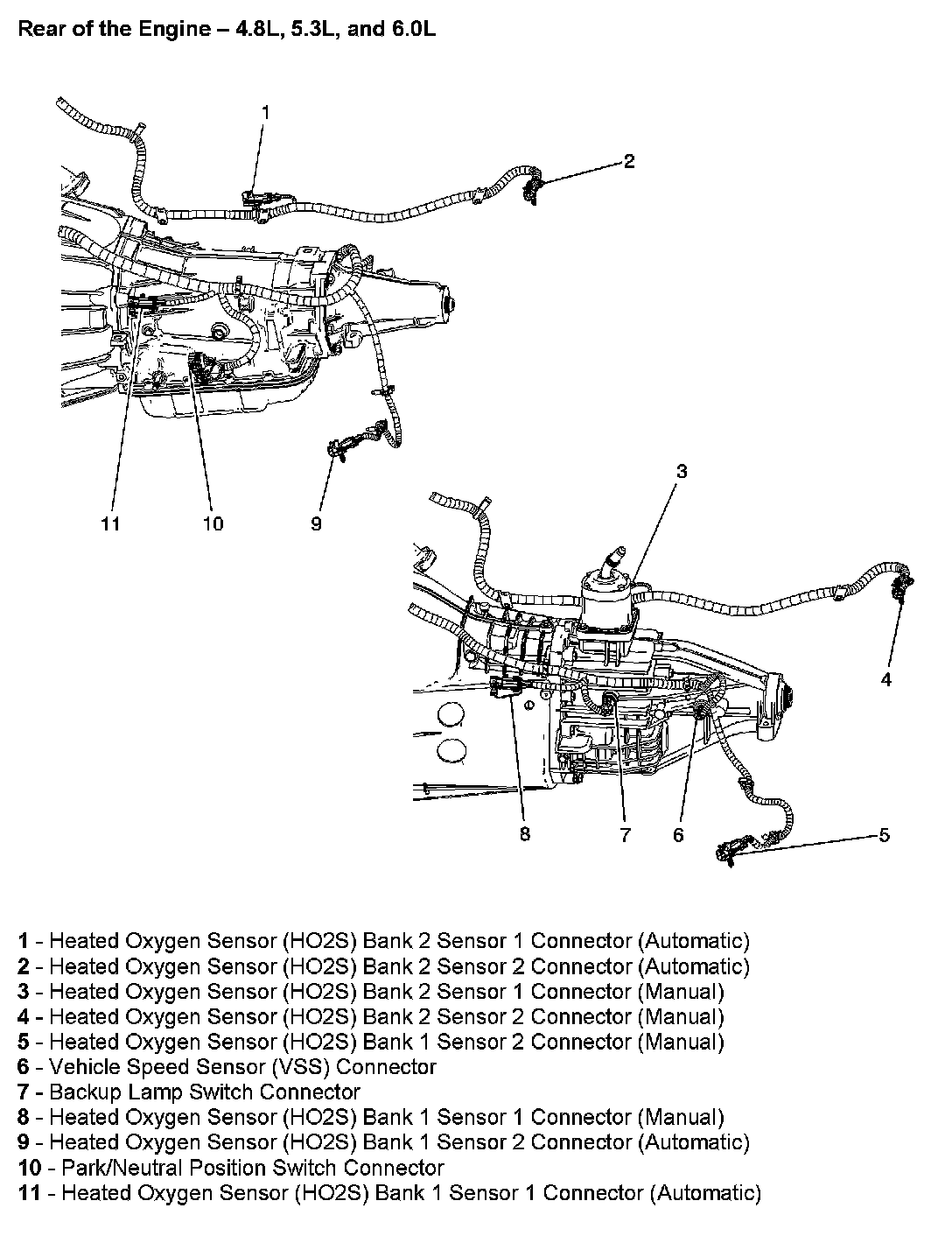

Rear Of The Engine:
