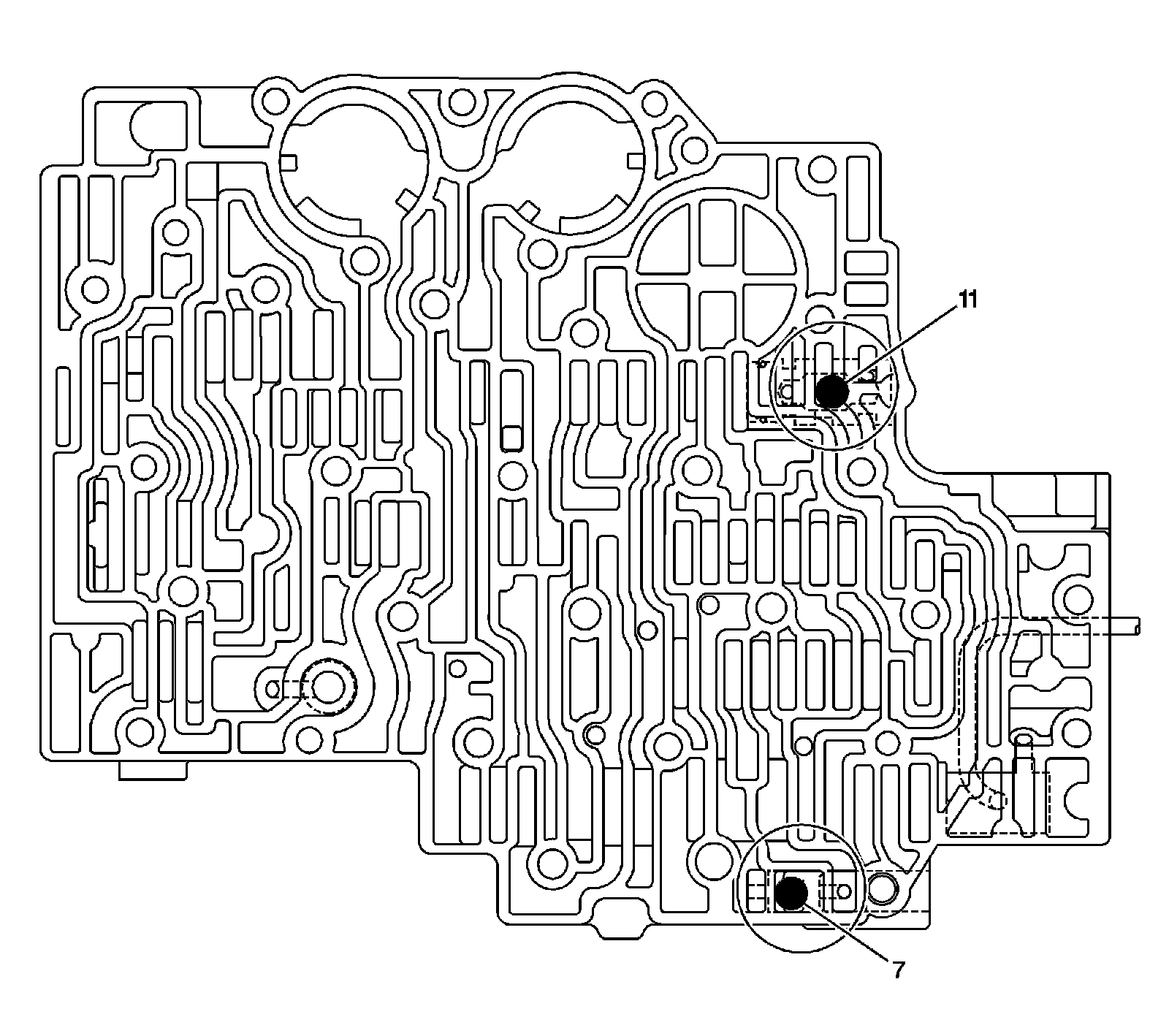

Ball Check Valve Locations (Control Valve Body, Case Side)



Ball Check Valve Locations (Control Valve Body, Case Side)

Ball Check Valve Locations (Control Valve Body, Case Side):





7 - Lo/Reverse
11 - 3rd Clutch/Reverse
