Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C100 - C199 >> C152

C152

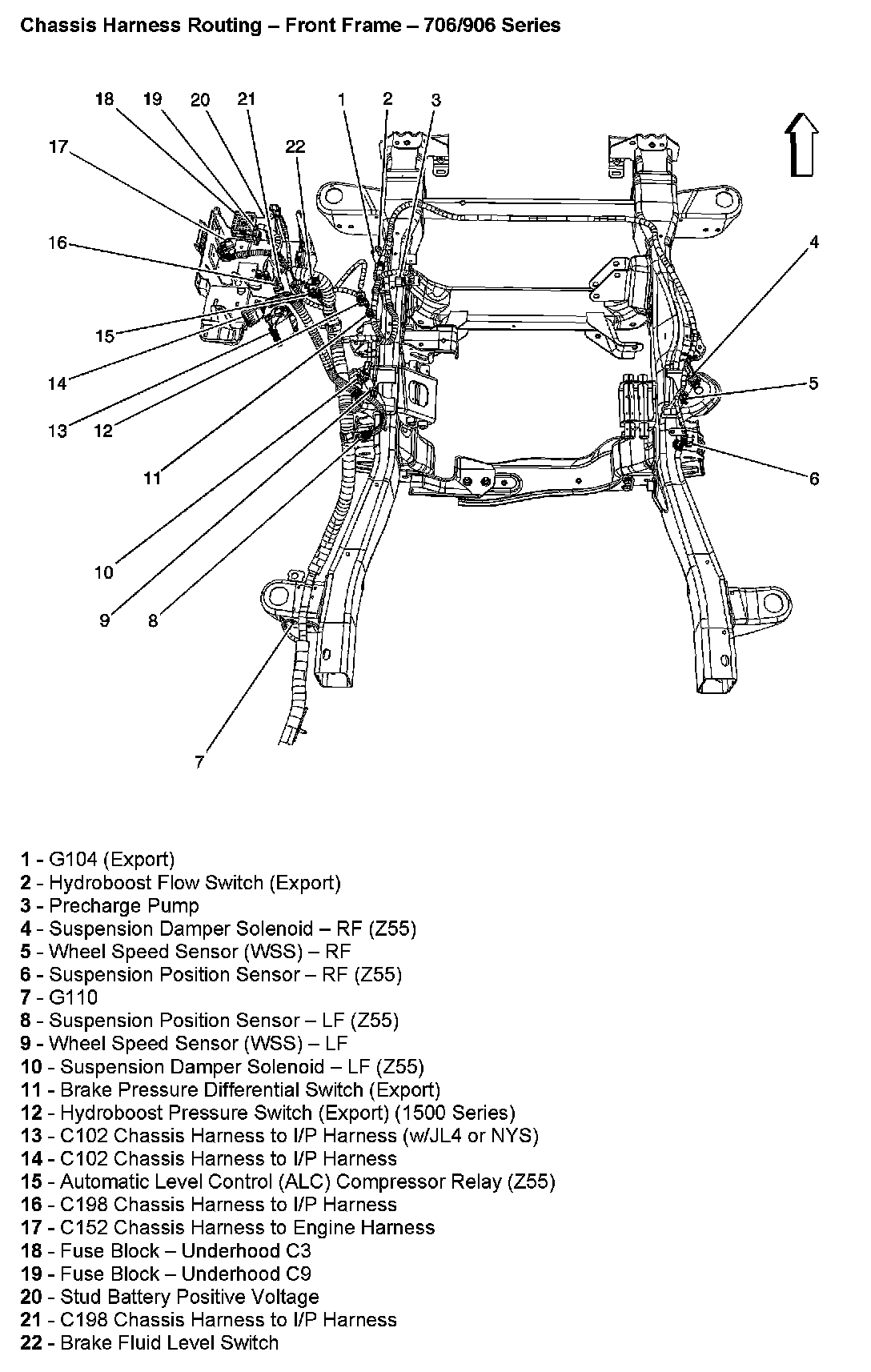

Chassis Harness Routing - Front Frame - 706/906 Series:

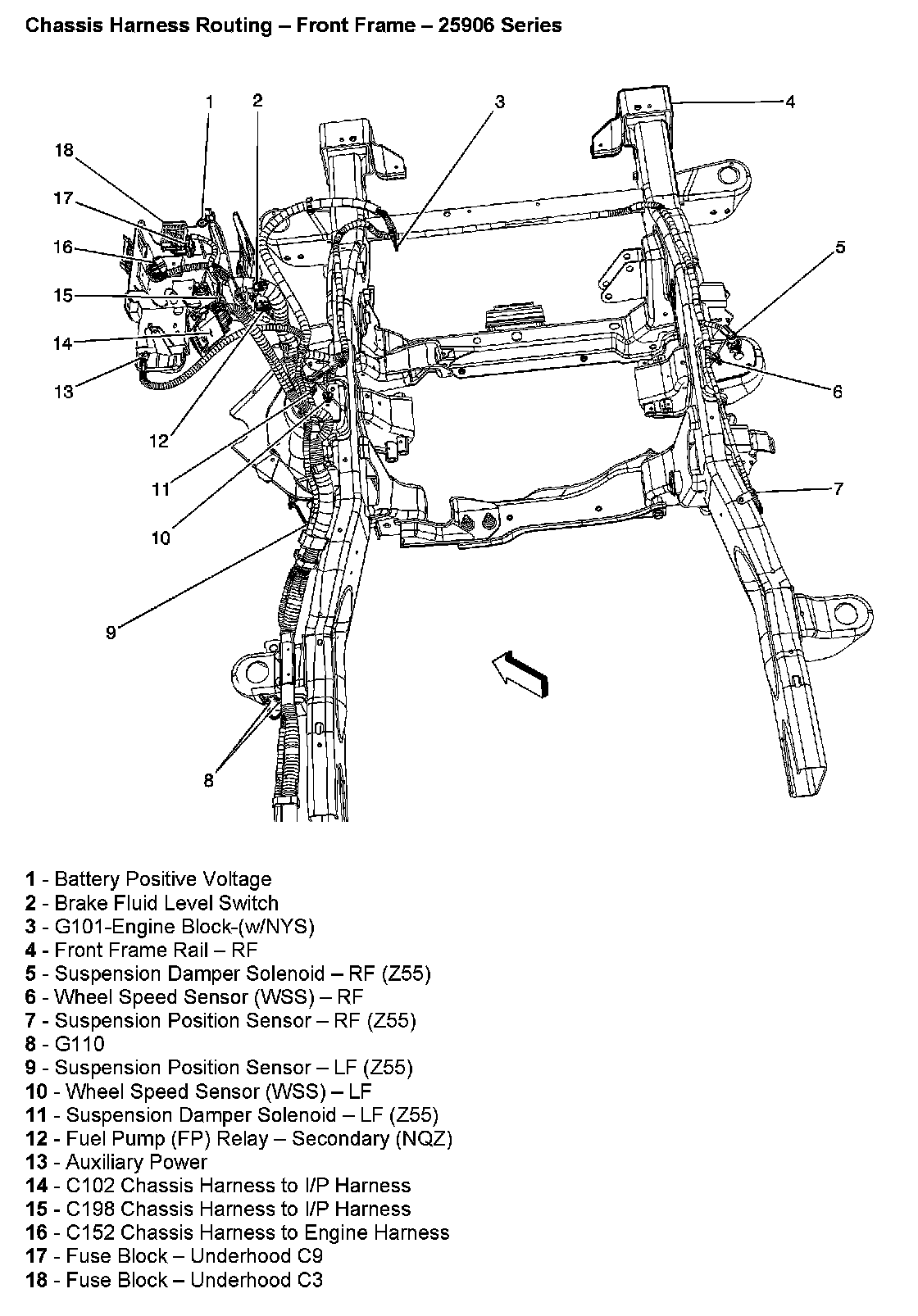

Chassis Harness Routing - Front Frame - 25906 Series:



I/P Harness Routing - Engine Compartment:
