Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Police / Special Vehicle Options
>>
Roof Beacon Switch (With RPO Code 5X7, 5G4, TRW, or 5Y0)
Roof Beacon Switch (With RPO Code 5X7, 5G4, TRW, or 5Y0)

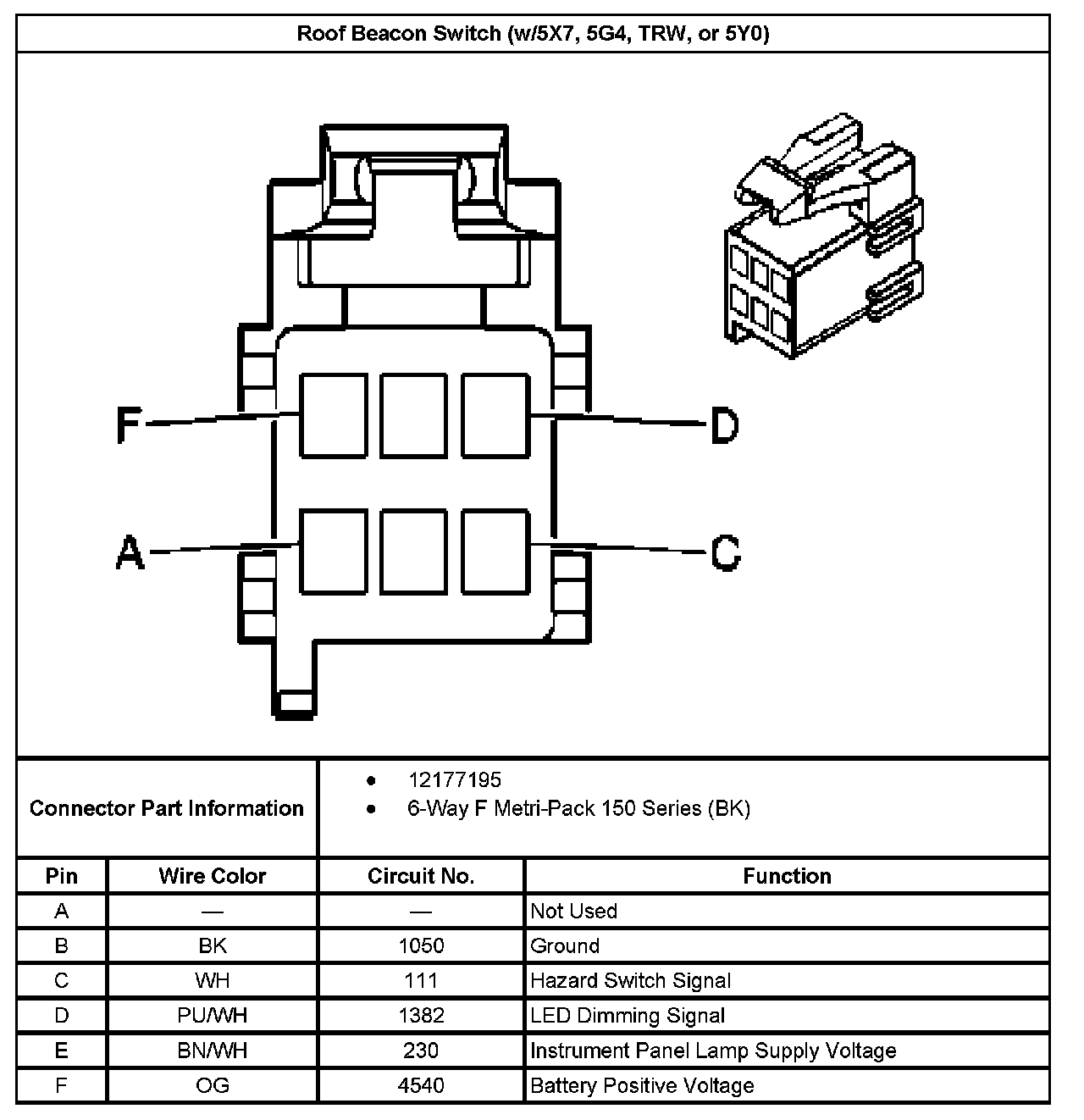

Roof Beacon Switch (With RPO Code 5X7, 5G4, TRW, Or 5Y0):
