Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
>>
Headlamp - High Beam
Headlamp - High Beam

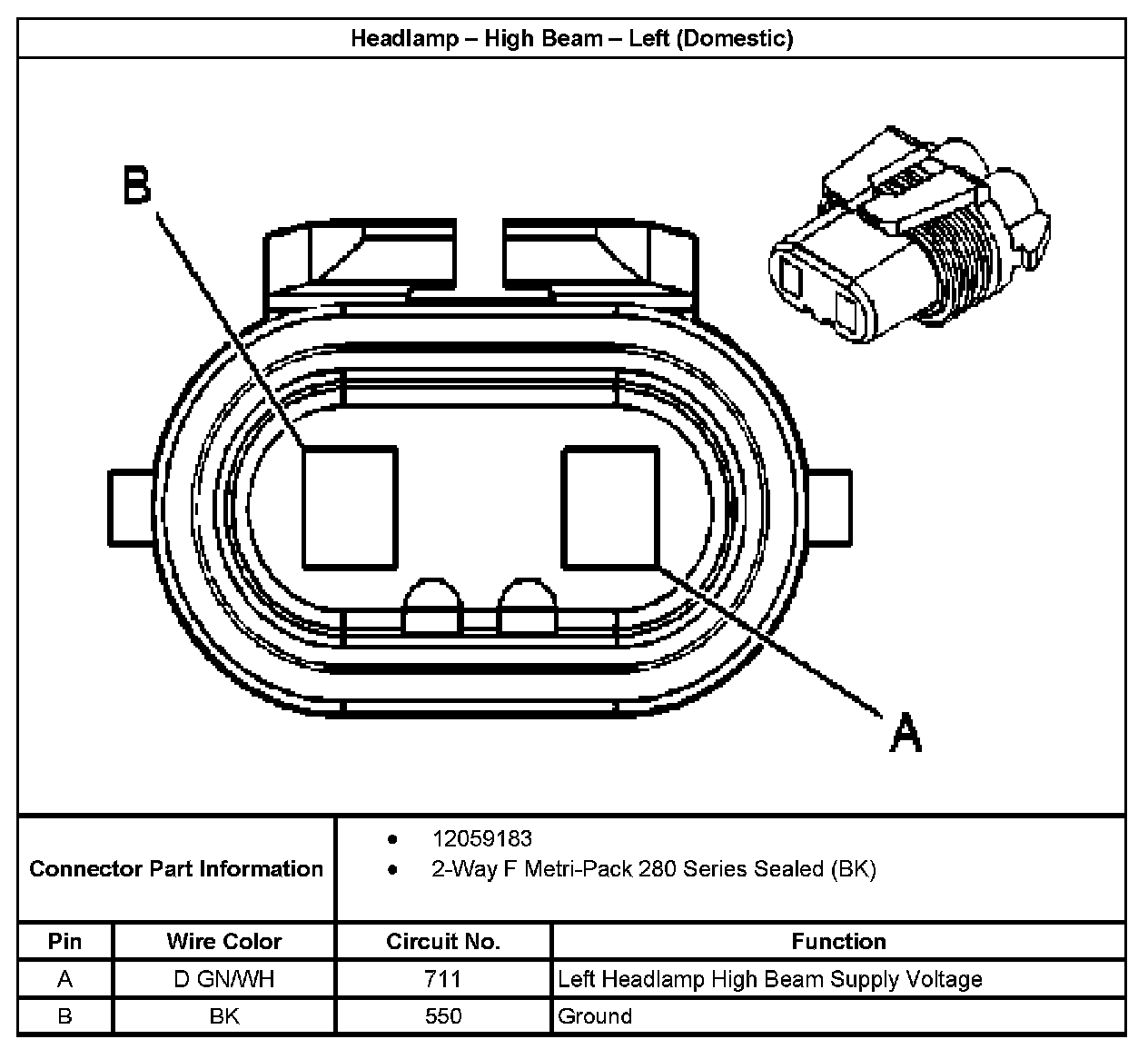

Headlamp - High Beam - Left (Domestic):

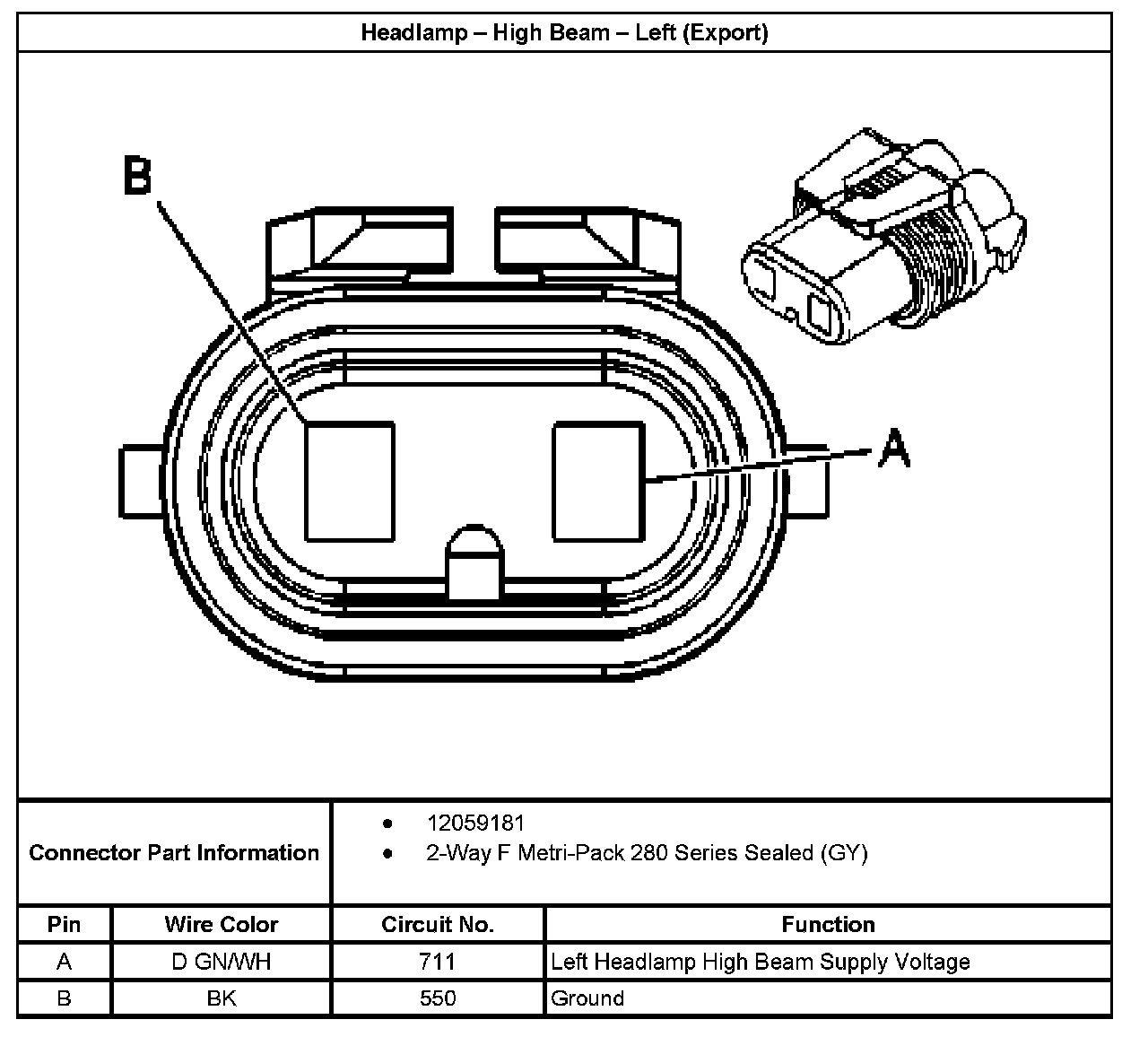

Headlamp - High Beam - Left (Export):

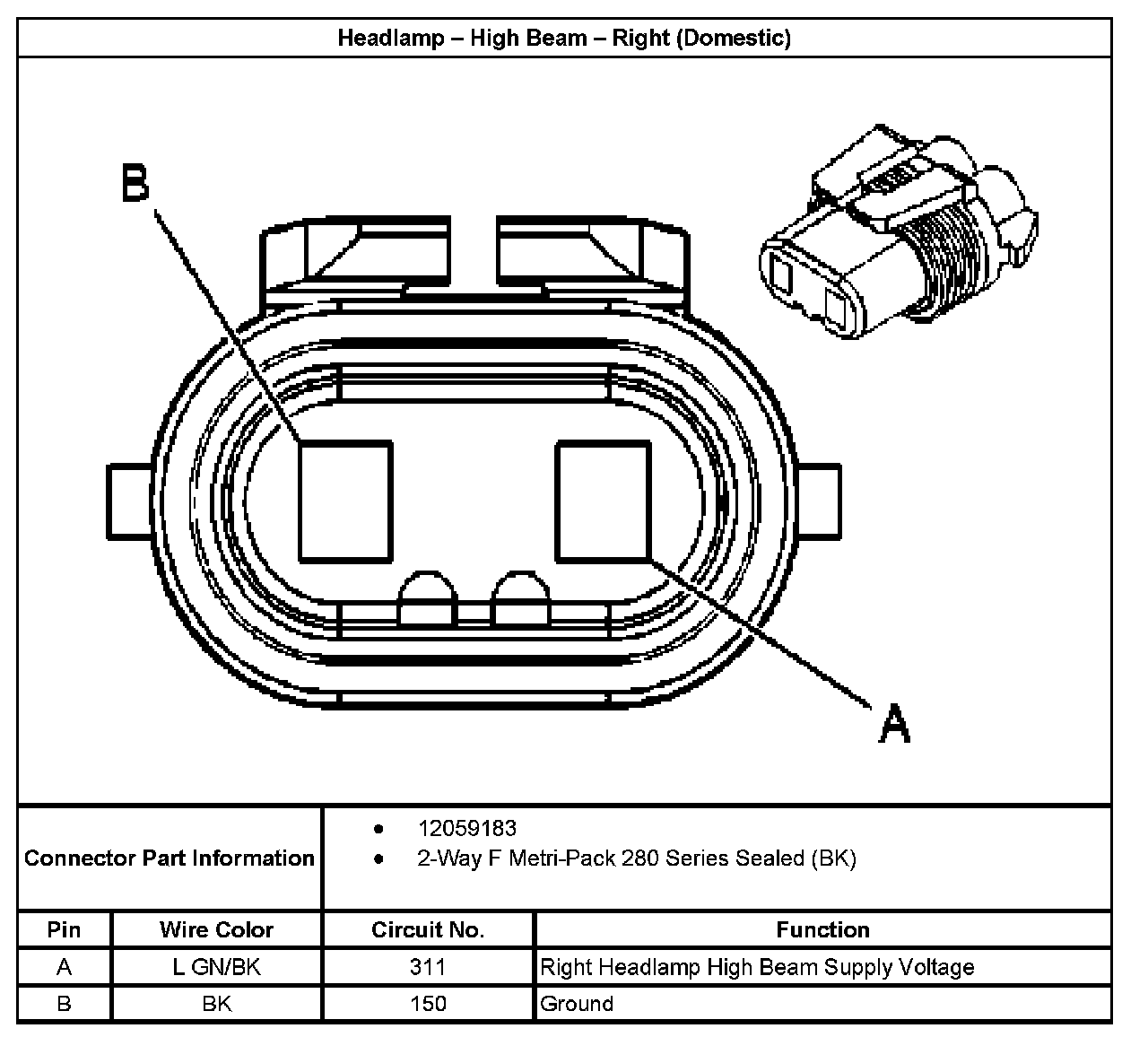

Headlamp - High Beam - Right (Domestic):

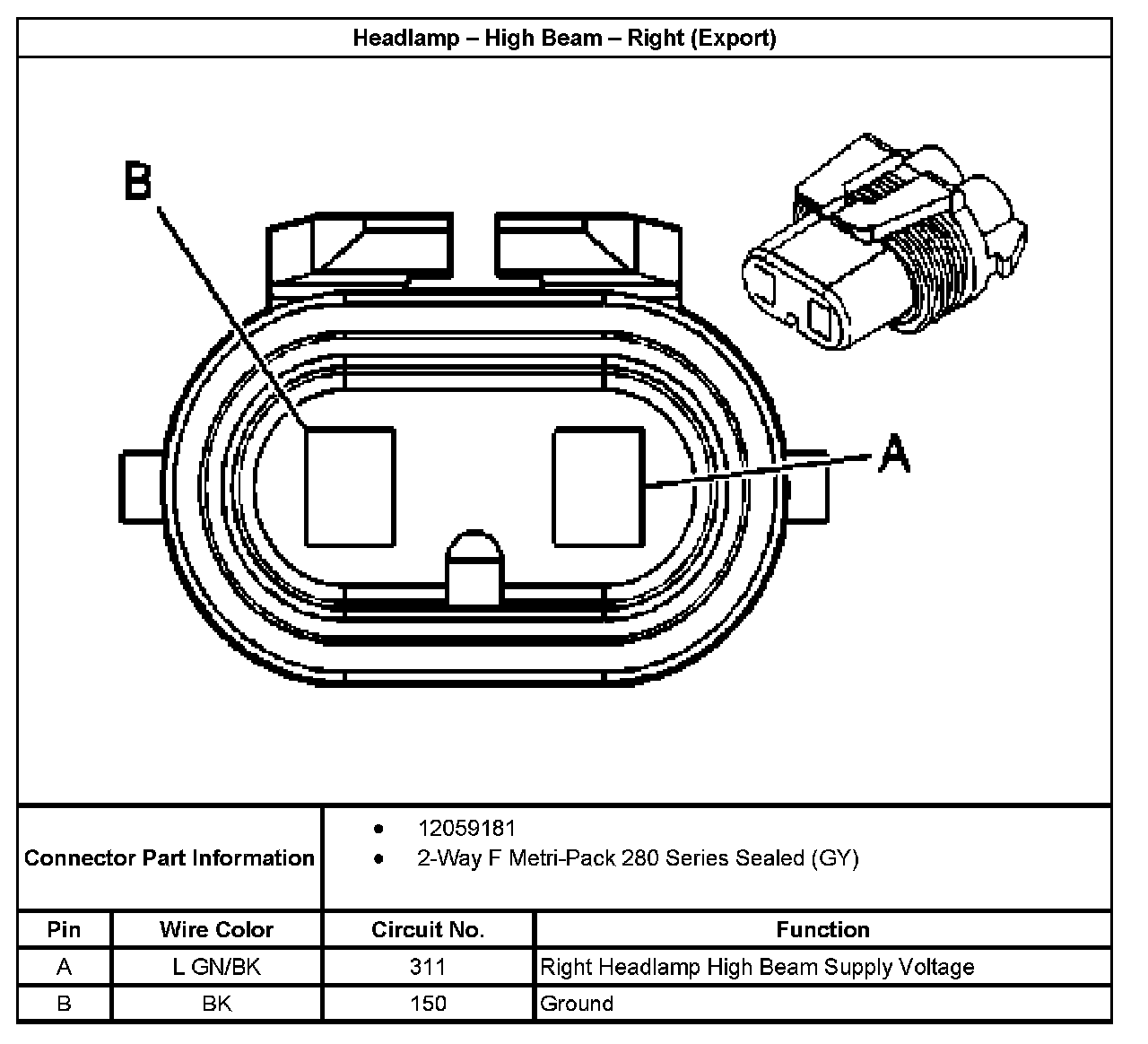

Headlamp - High Beam - Right (Export):
