Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram

System Diagram

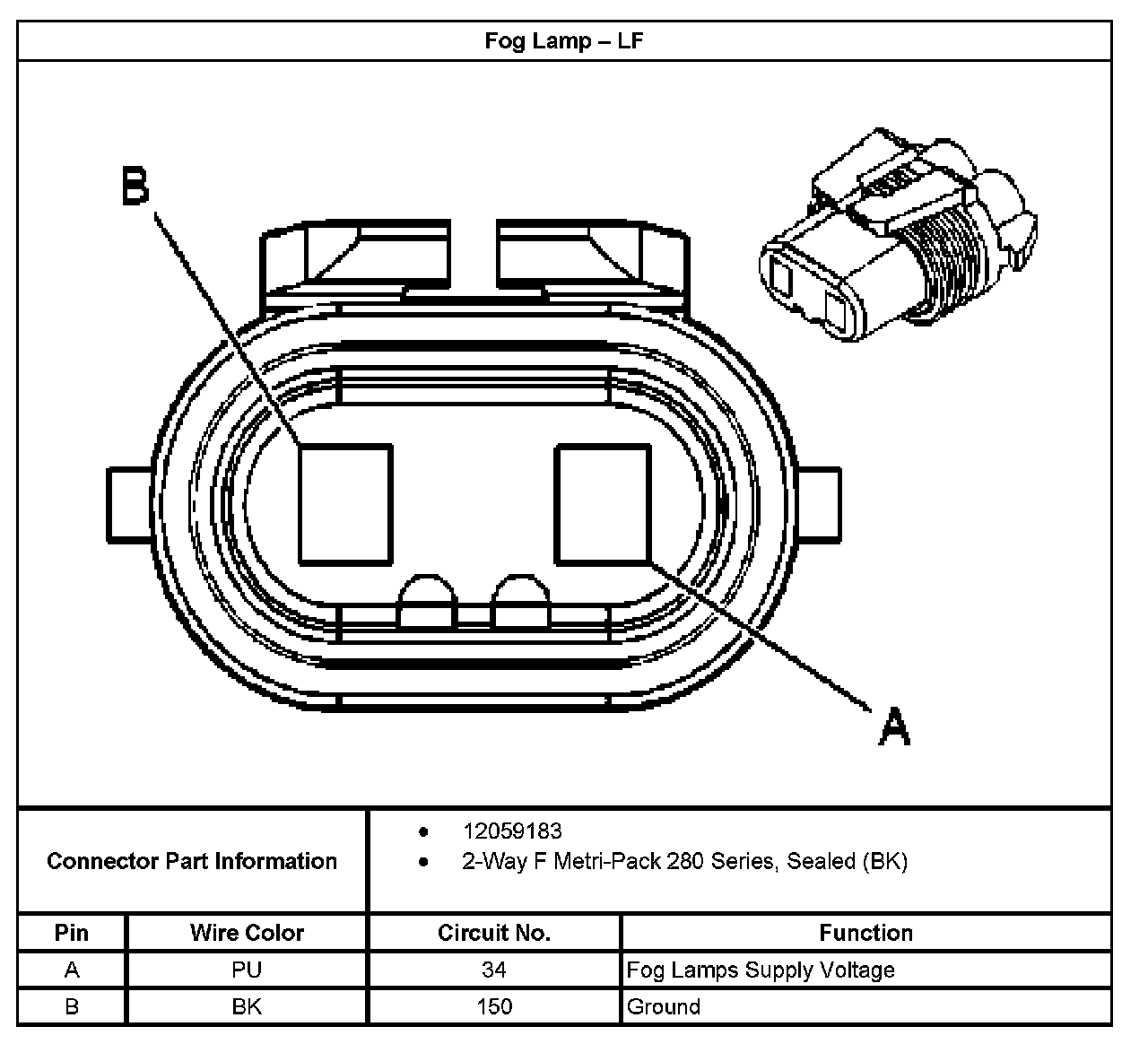

Fog Lamp - LF:

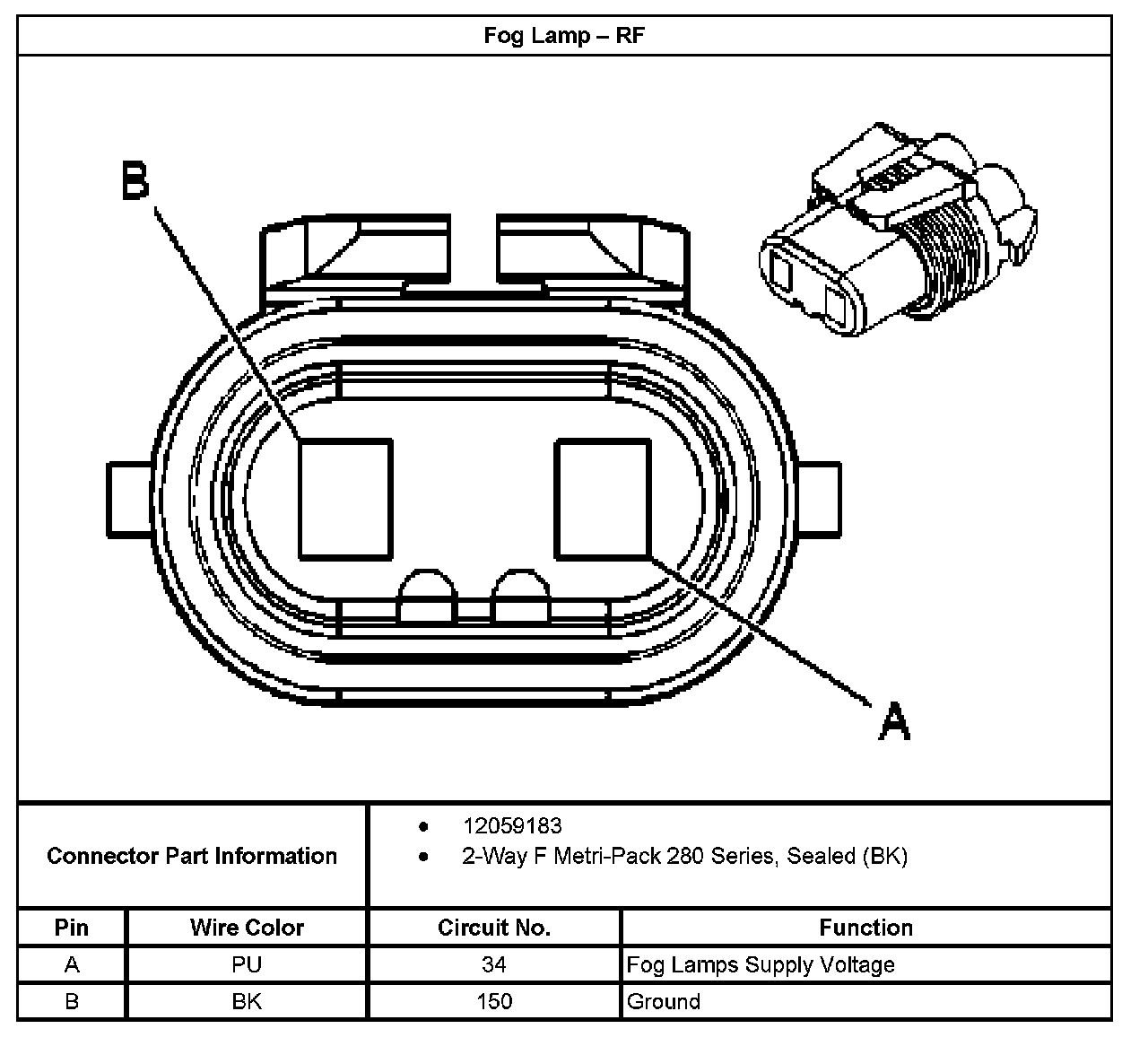

Fog Lamp - RF:

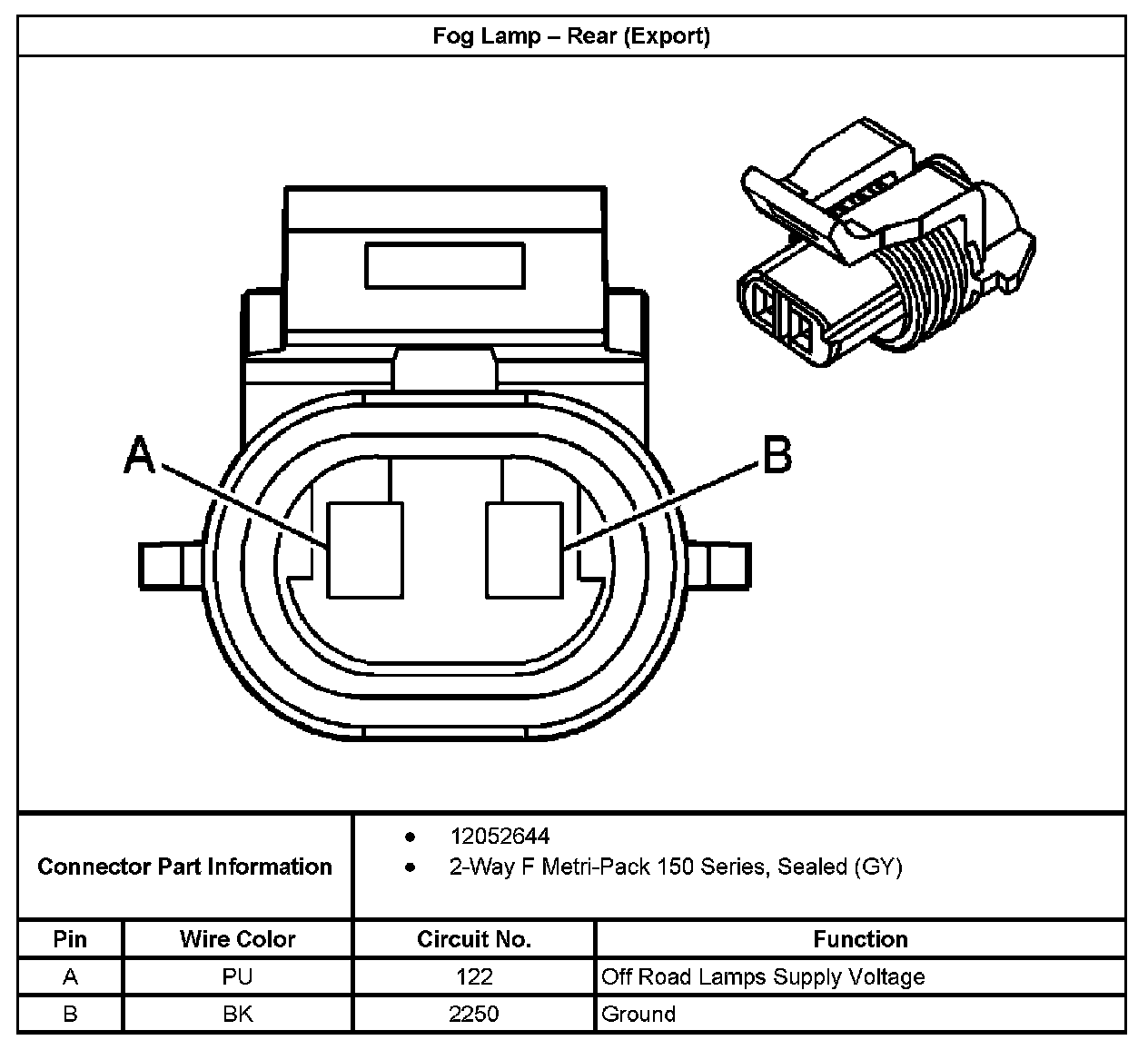

Fog Lamp - Rear (Export):
