Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors >> Door Module >> Front Passenger Door Module (FPDM) C1

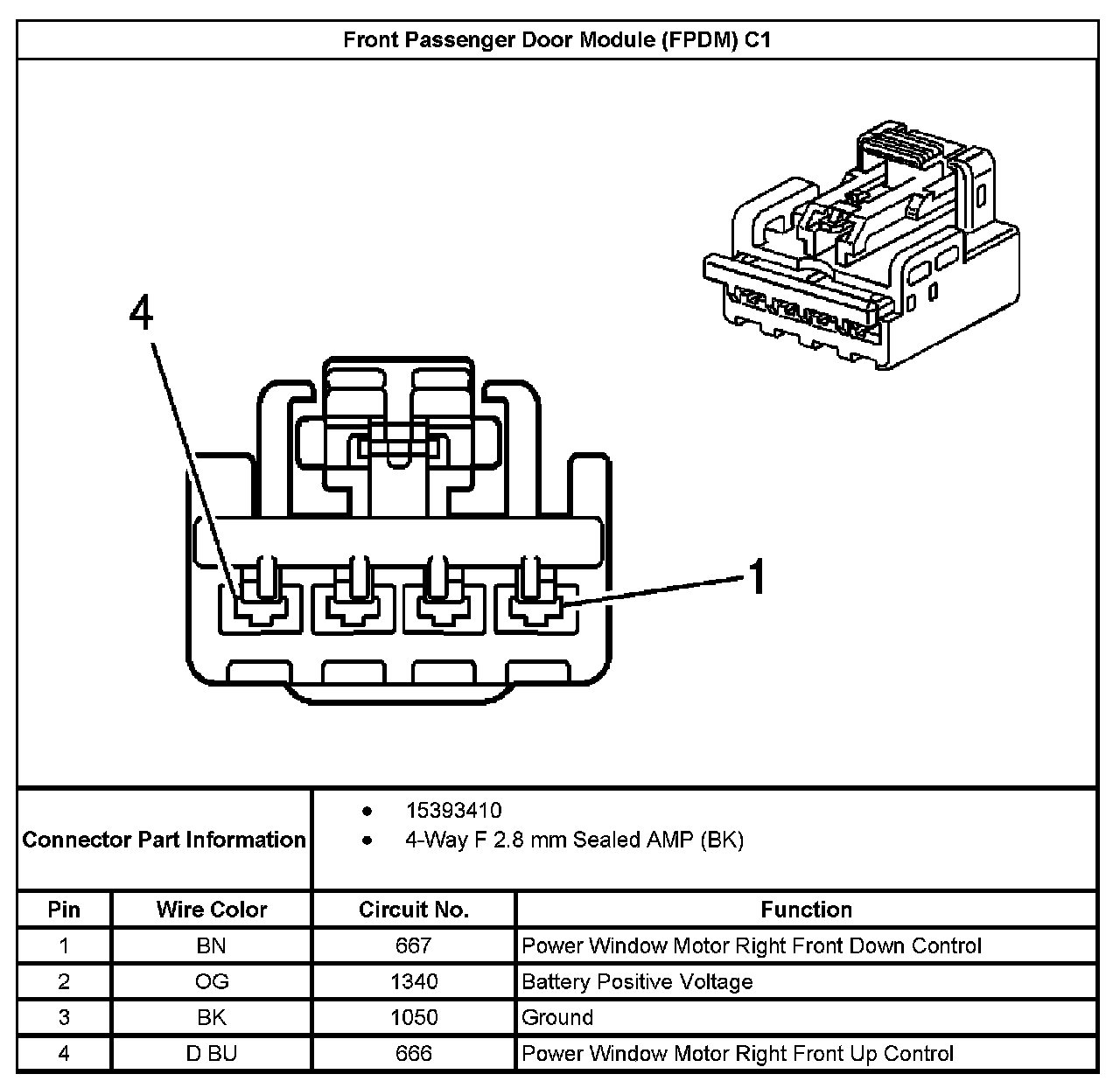

Front Passenger Door Module (FPDM) C1

Front Passenger Door Module (FPDM) C1:
