Chevy Truck
>>
2005
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp
Daytime Running Lamp

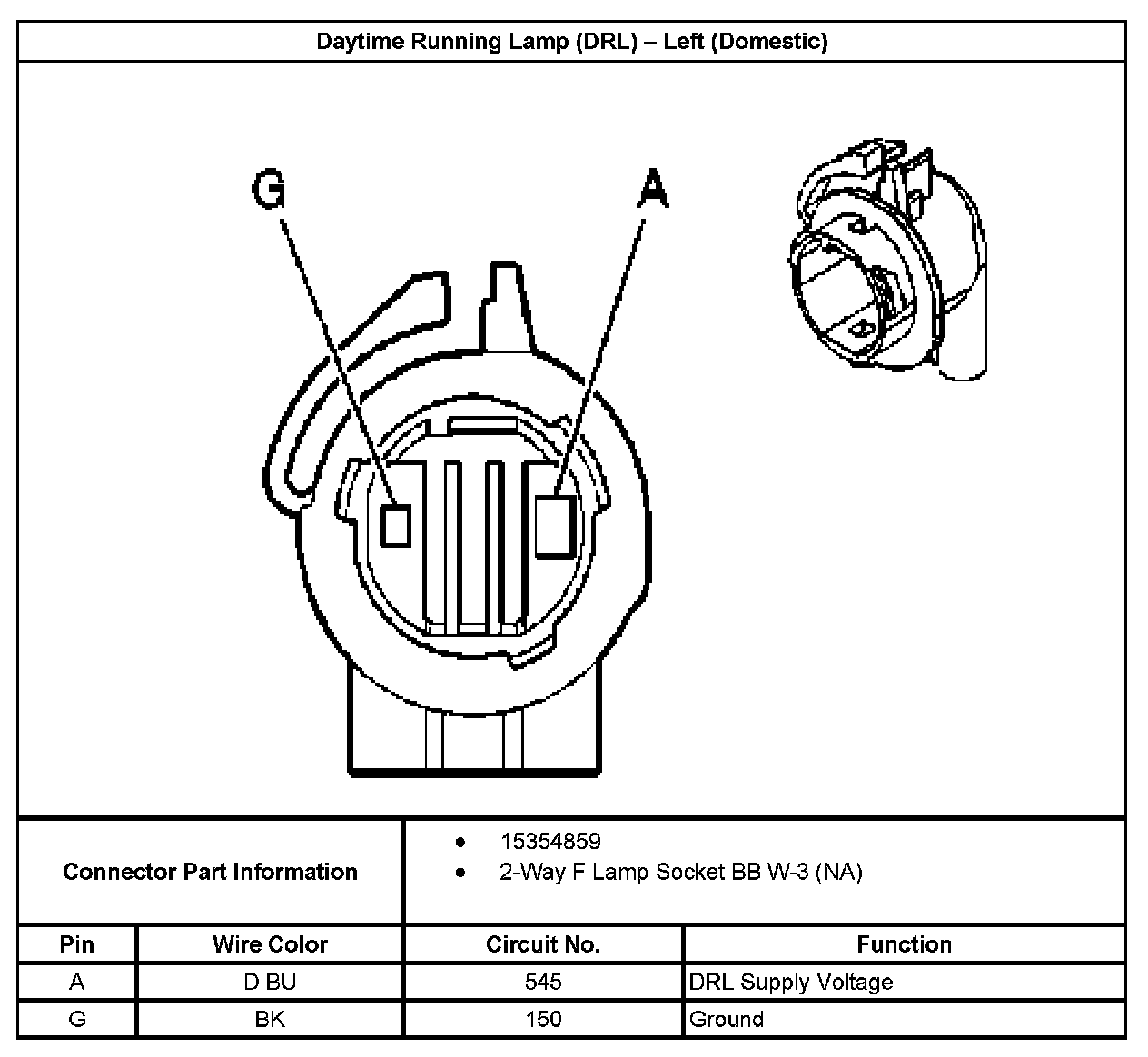

Daytime Running Lamp (DRL) - Left (Domestic):

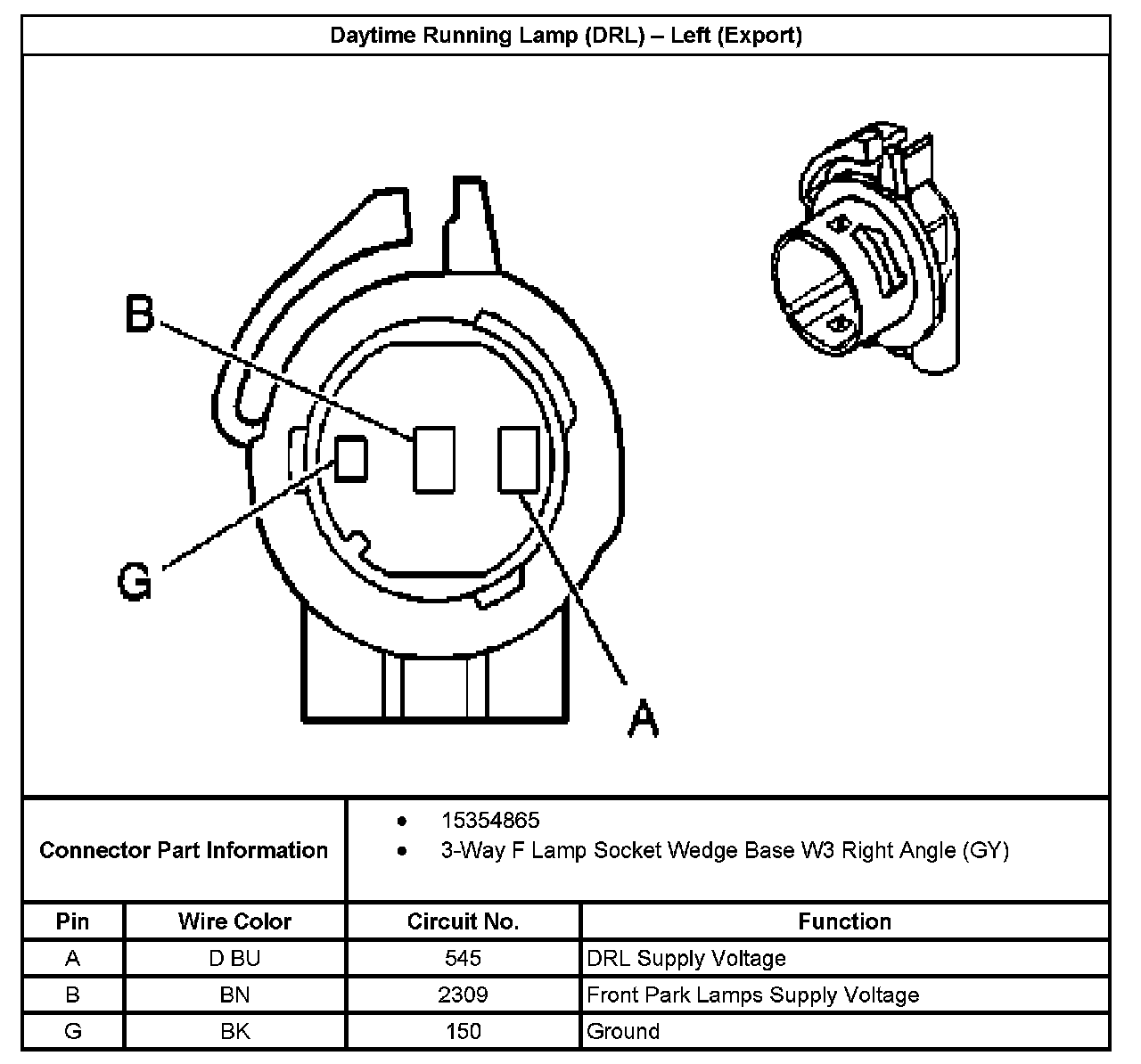

Daytime Running Lamp (DRL) - Left (Export):
Daytime Running Lamp (DRL) - Right (Domestic):

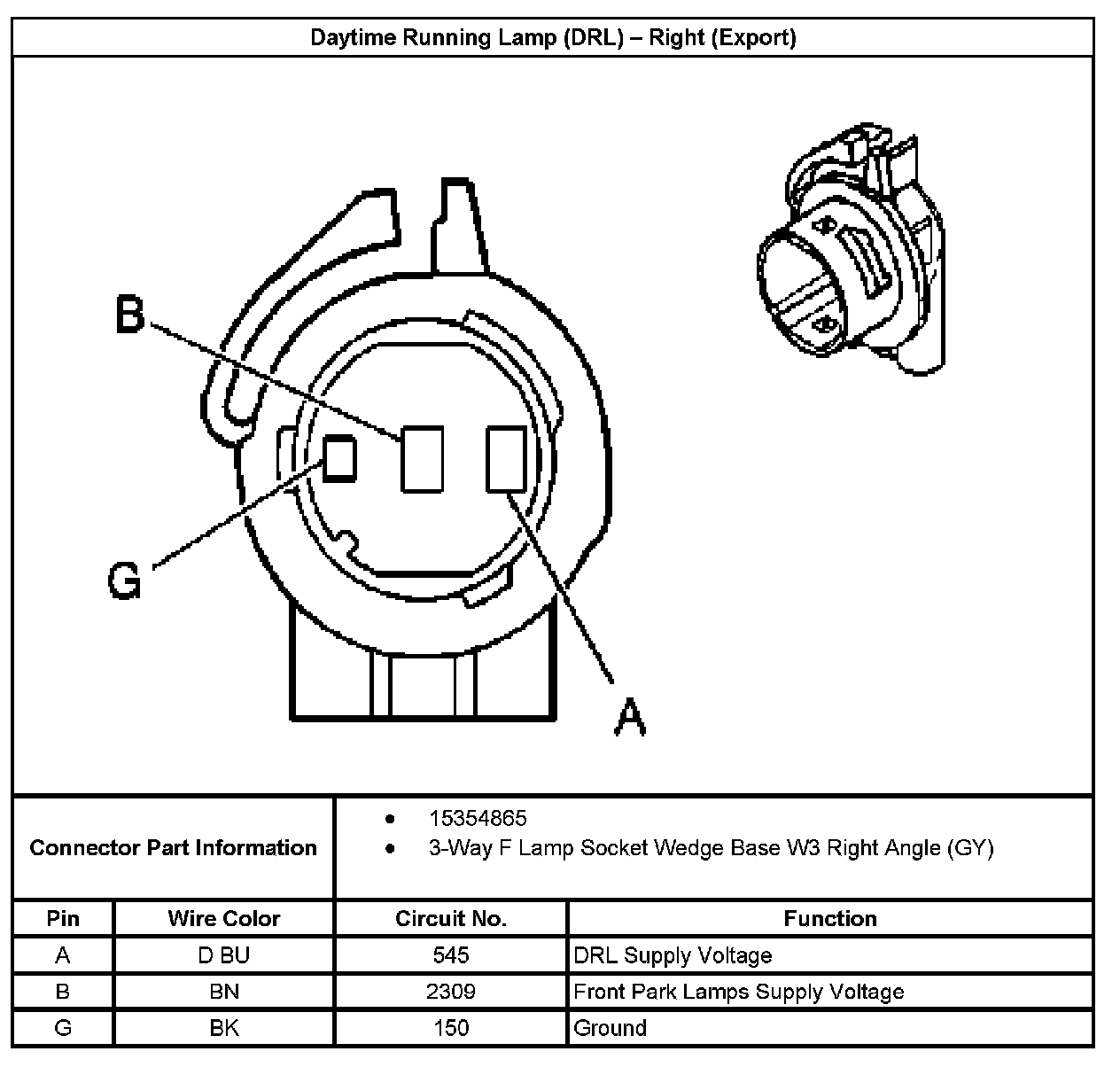

Daytime Running Lamp (DRL) - Right (Export):
