Parking Assist Distance Sensor
Parking Assist Distance Sensor

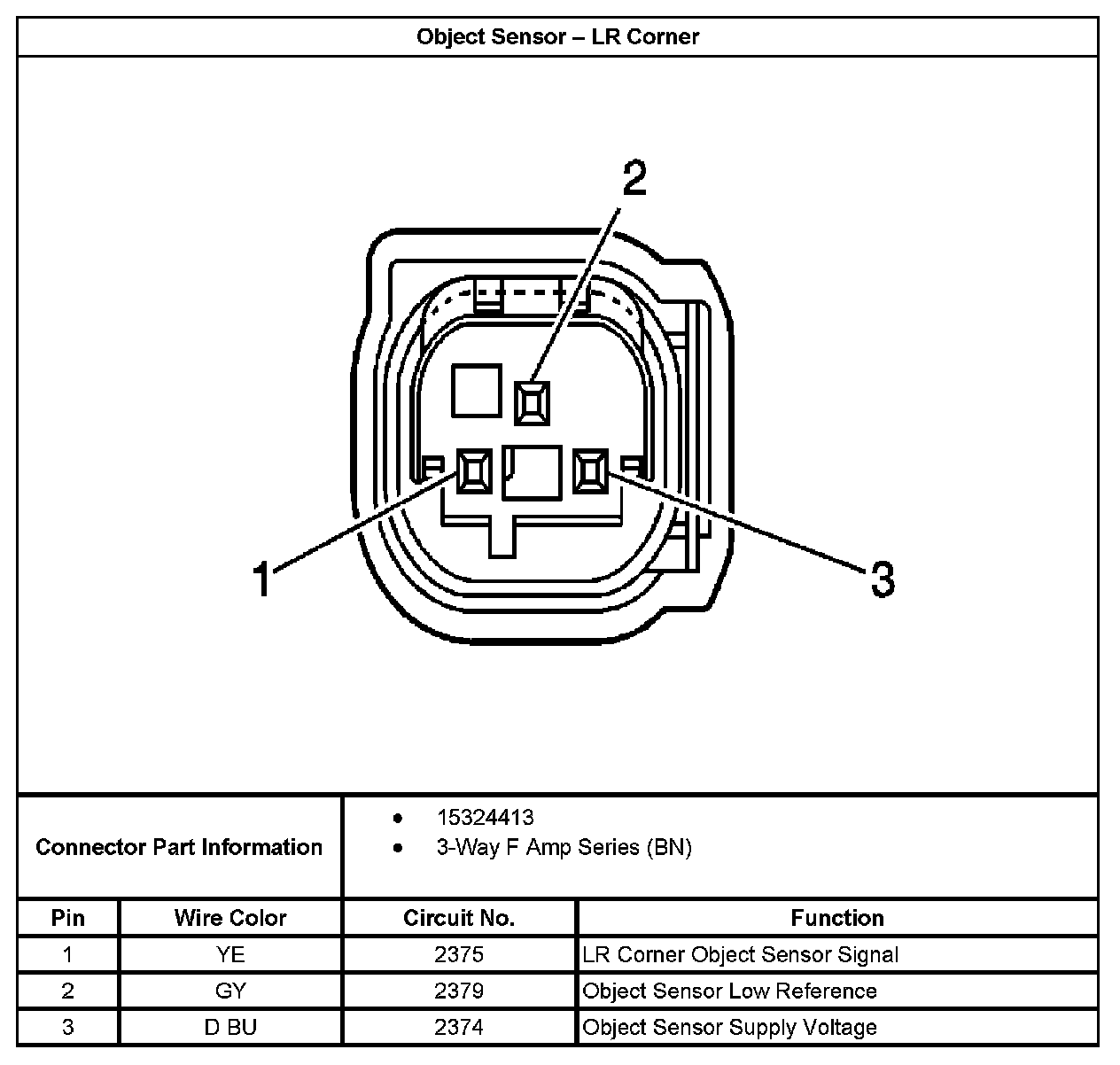

Object Sensor - LR Corner:
Object Sensor - LR Middle:

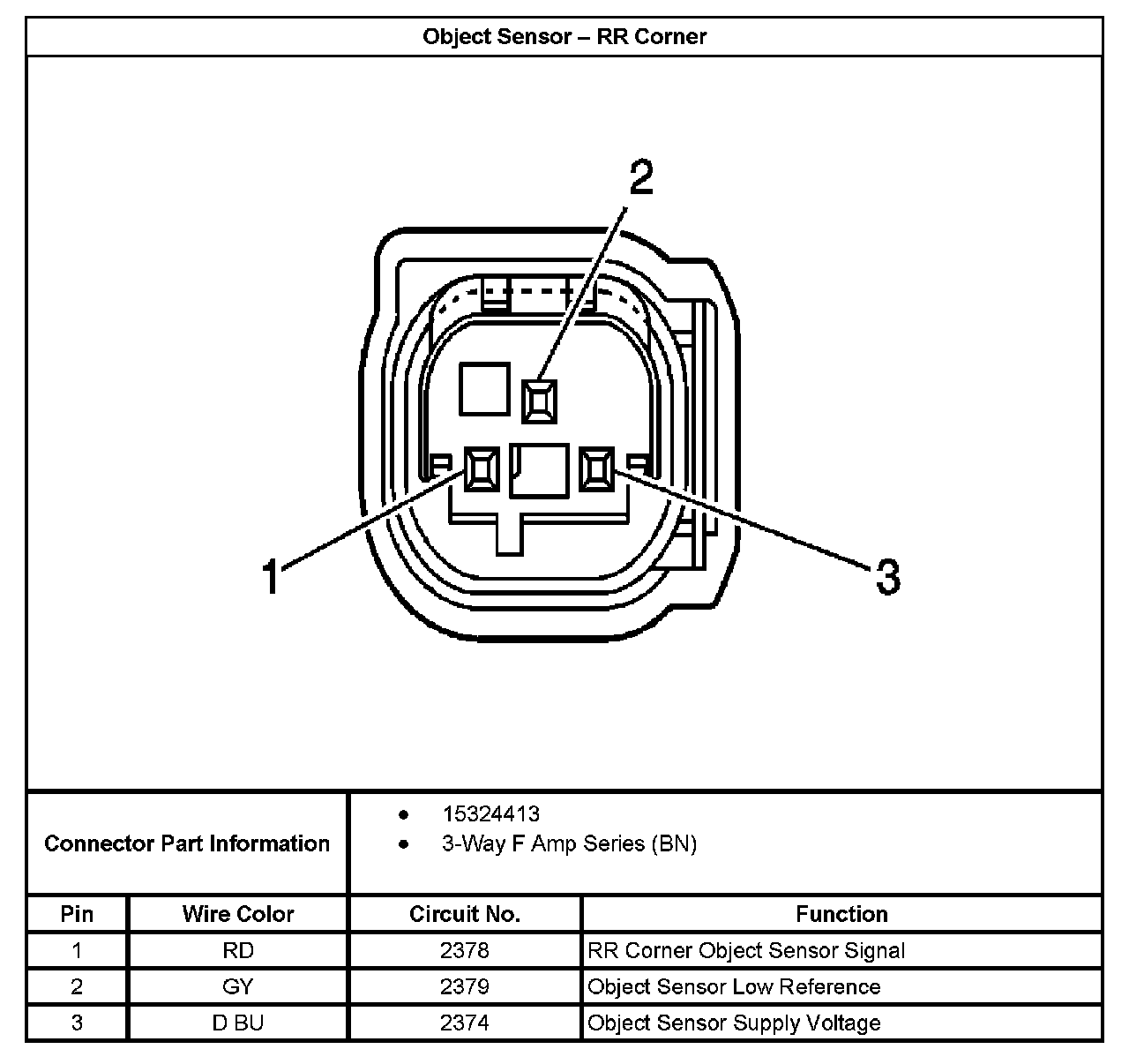

Object Sensor - RR Corner:

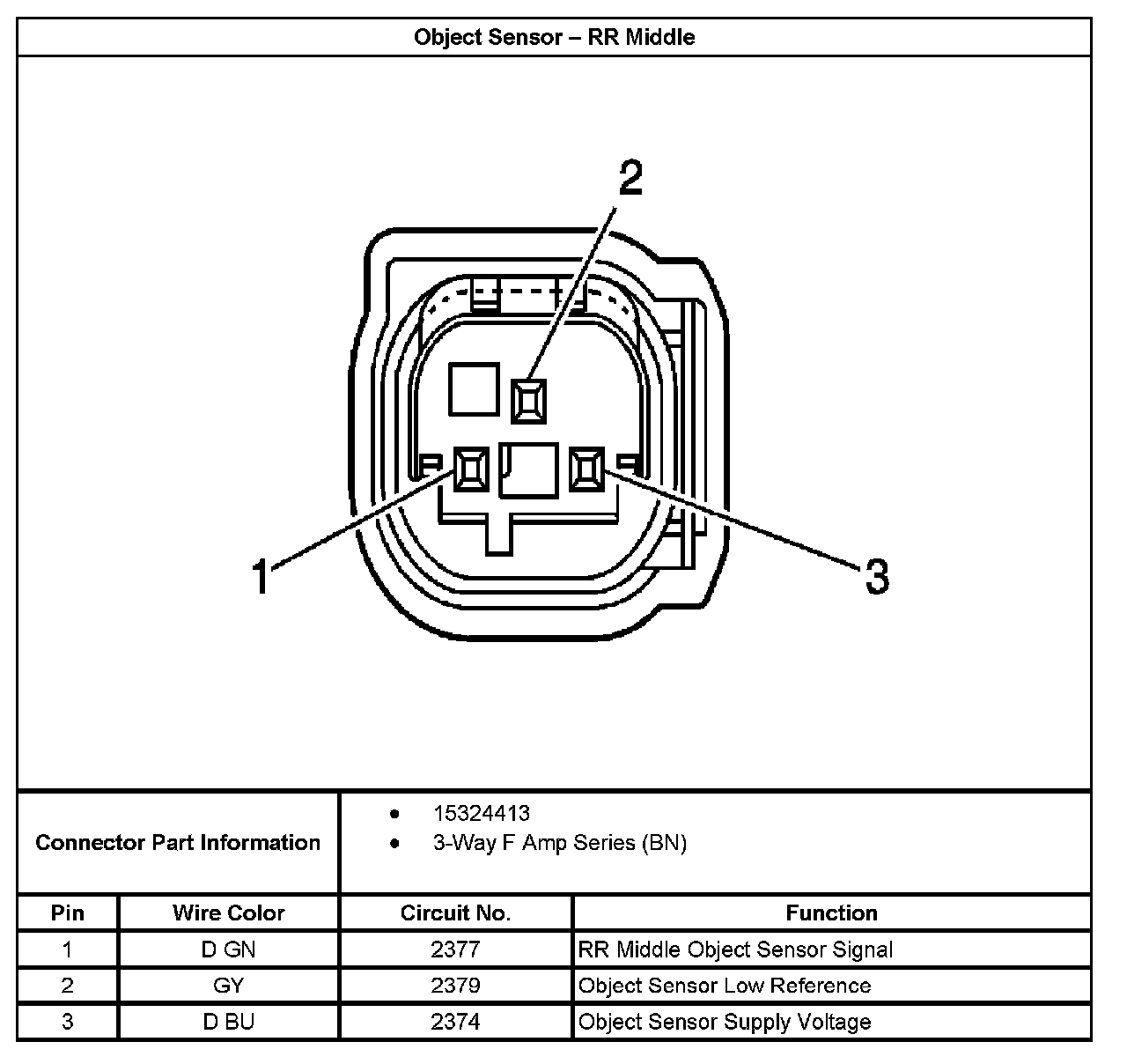

Object Sensor - RR Middle:
