Park Brake Release Handle Assembly Replacement

Park Brake Release Handle Assembly Replacement

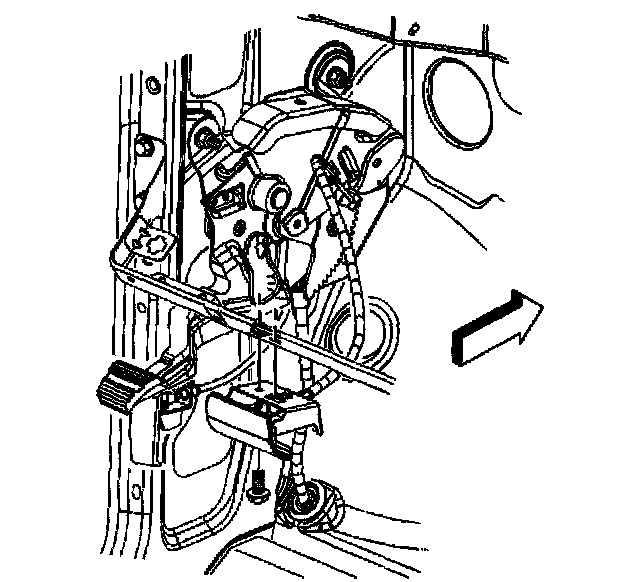

Removal Procedure





1. Remove the park brake release lever mounting bolt.
2. Remove the park brake release lever handle from the knee bolster.

Installation Procedure





1. Install the park brake release lever handle to the knee bolster.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the park brake release lever mounting bolt.
Tighten to 25 Nm (18 ft. lbs.).
3. Connect the park brake release cable to the lever.
