Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Lumbar Support Inoperative (Without Memory)

Lumbar Support Inoperative (Without Memory)

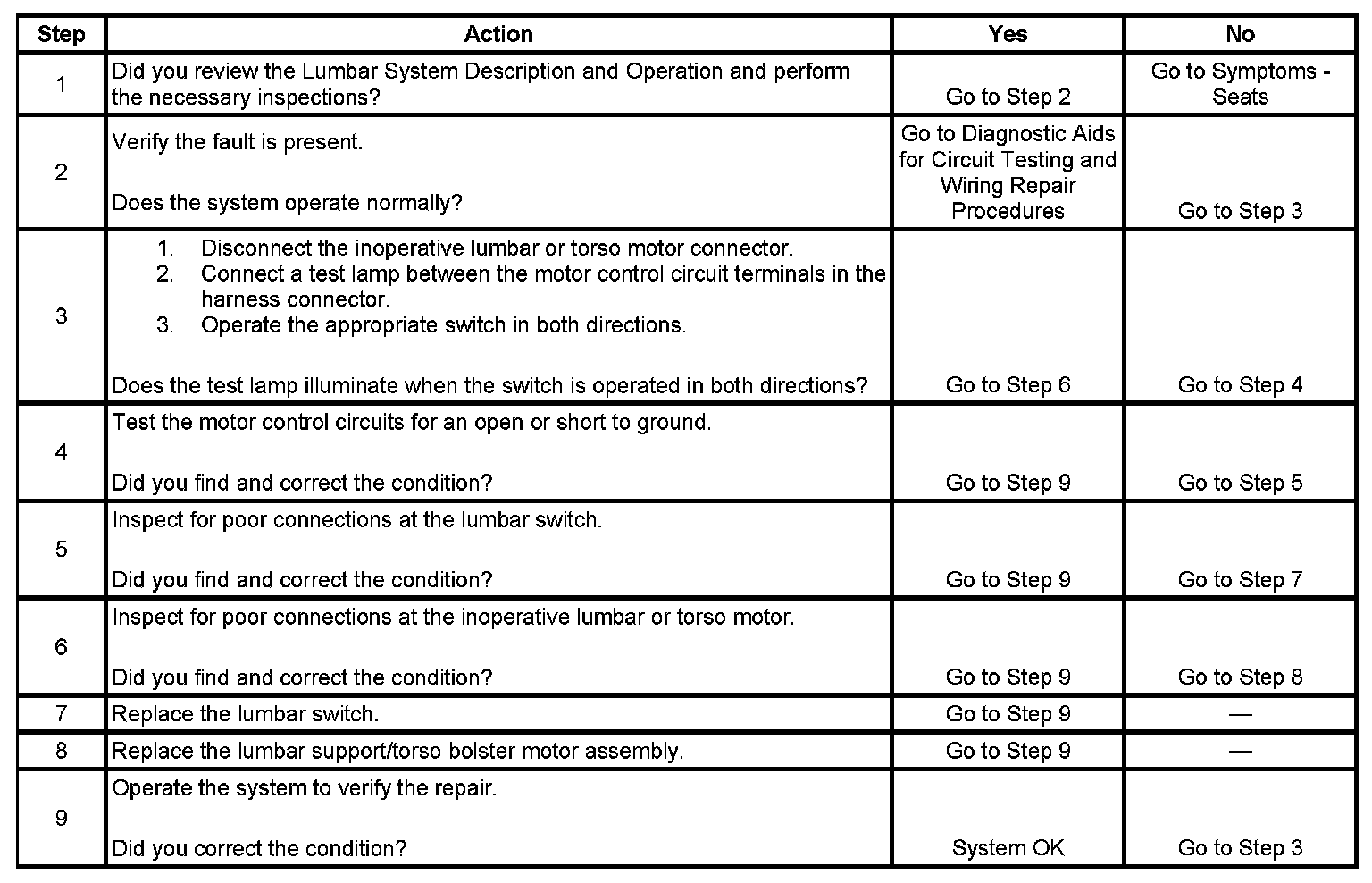

Steps 1 - 9:
