Blower Replacement - Ventilation Heat and Cool - Front Seat Cushion

BLOWER REPLACEMENT - VENTILATION HEAT AND COOL - FRONT SEAT CUSHION

REMOVAL PROCEDURE




1. Remove the seat cushion.
2. Disconnect the blower electrical connector.

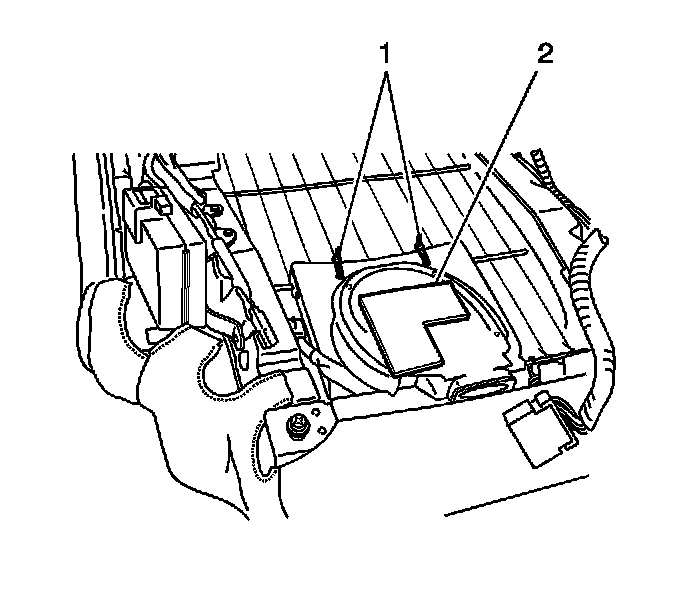

3. Cut the tie straps (1) securing the blower bracket to the seat cushion frame.
4. Remove the blower and bracket assembly from the seat cushion.




5. Drill the rivets (2) retaining the blower (3) to the bracket (1).

CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

6. Remove the blower from the bracket.

INSTALLATION PROCEDURE




1. Position the blower (3) to the bracket (1).
2. Install rivets (2) to secure the blower to the bracket.




3. Align the blower and bracket assembly to the seat cushion frame.
4. Secure the bracket to the frame using tie straps in the same position they were removed.
5. Connect the blower electrical connector.
6. Install the seat cushion.
