Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Windows - Inoperative - Driver Door

Power Windows - Inoperative - Driver Door

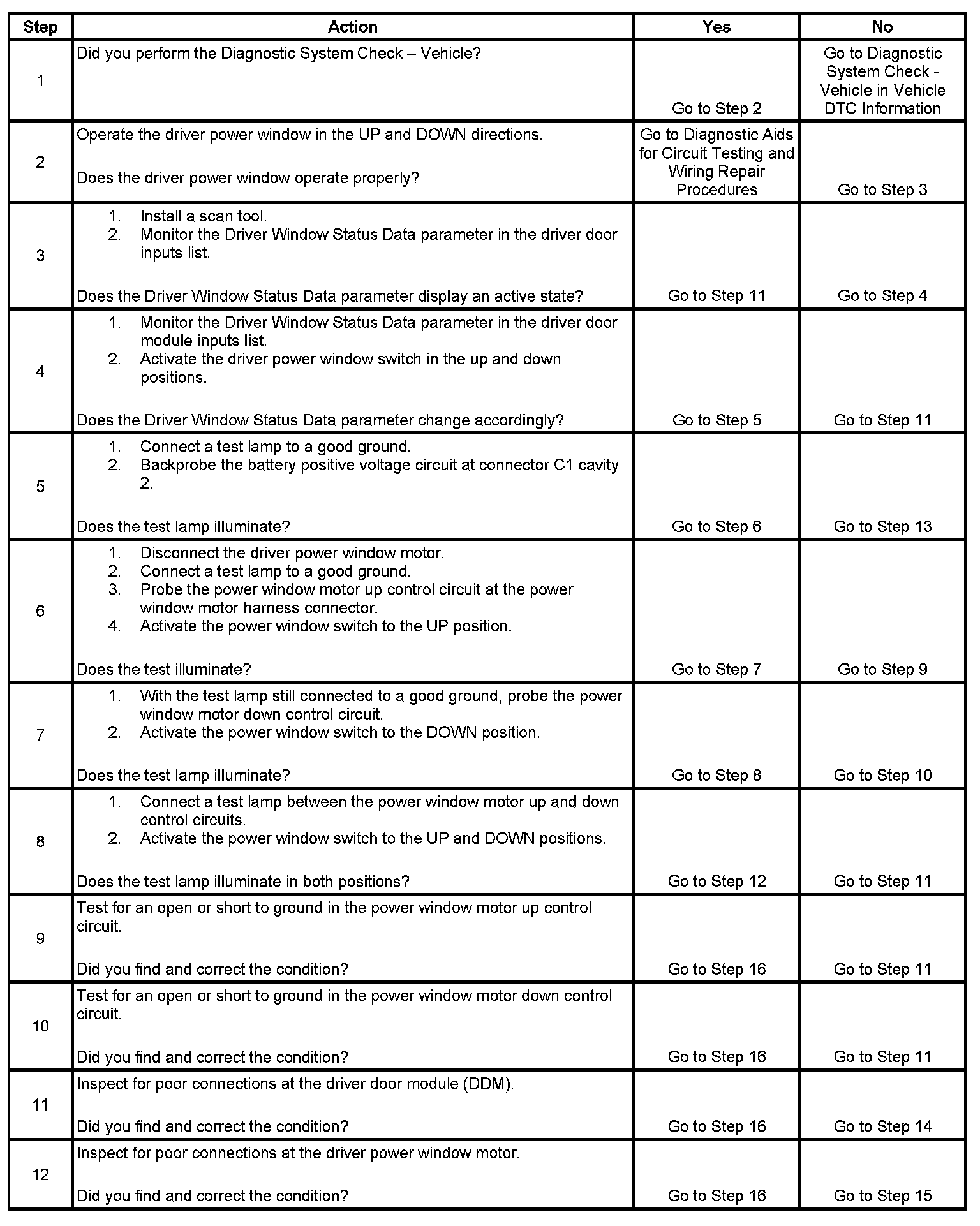

Steps 1 - 12:

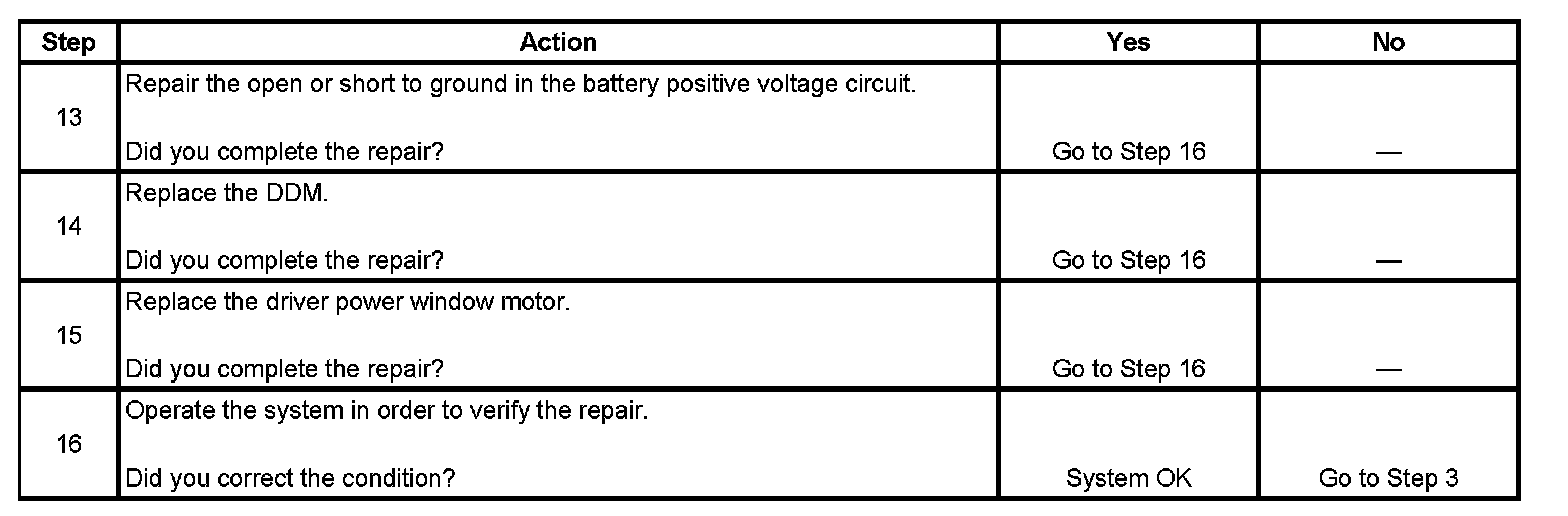

Steps 13 - 16:
