Home >> Chevy Truck >> 2005 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Mirrors - Outside Automatic Day - Night Feature Inoperative

Automatic Mirrors - Outside Automatic Day - Night Feature Inoperative

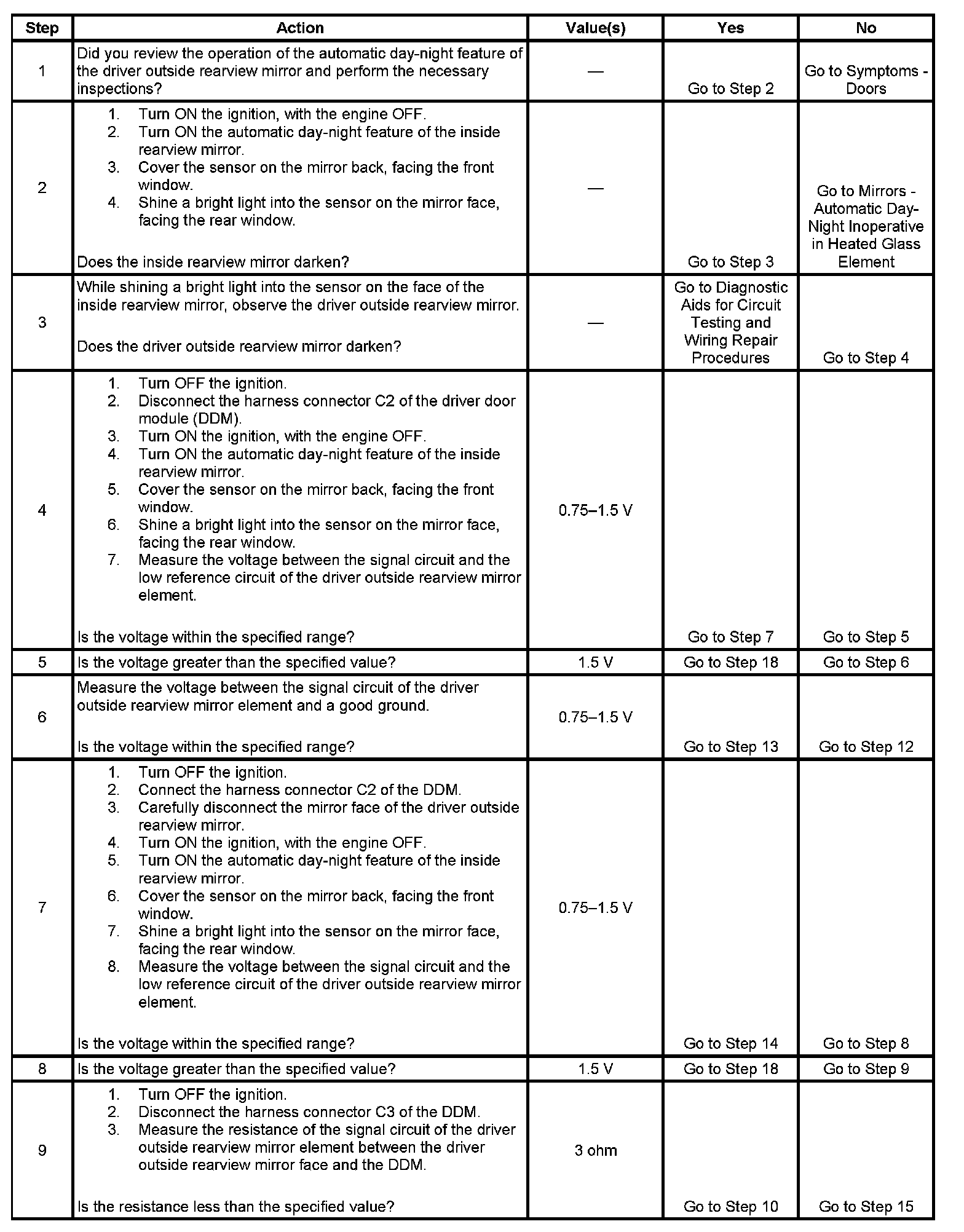

Steps 1 - 9:

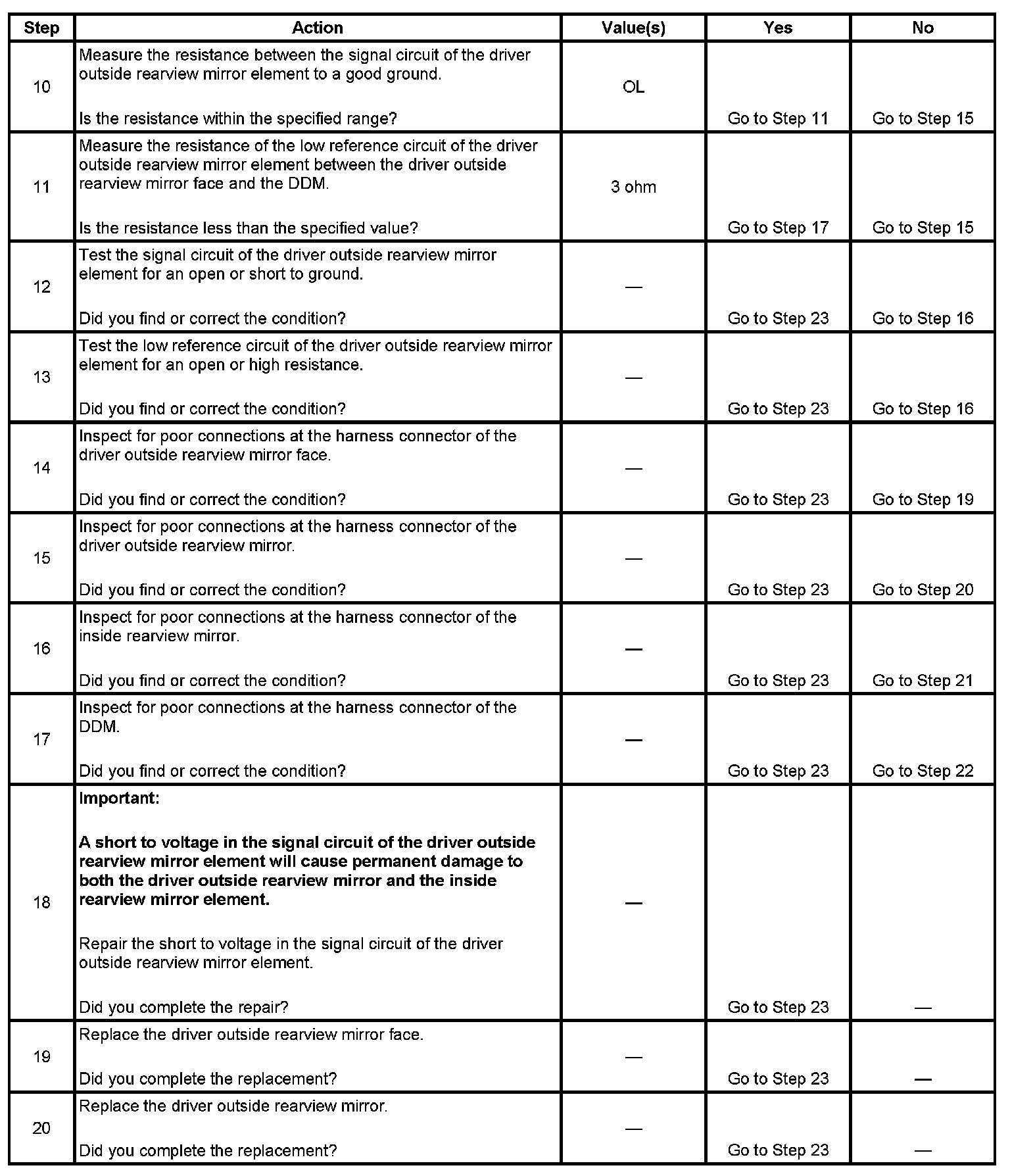

Steps 10 - 20:

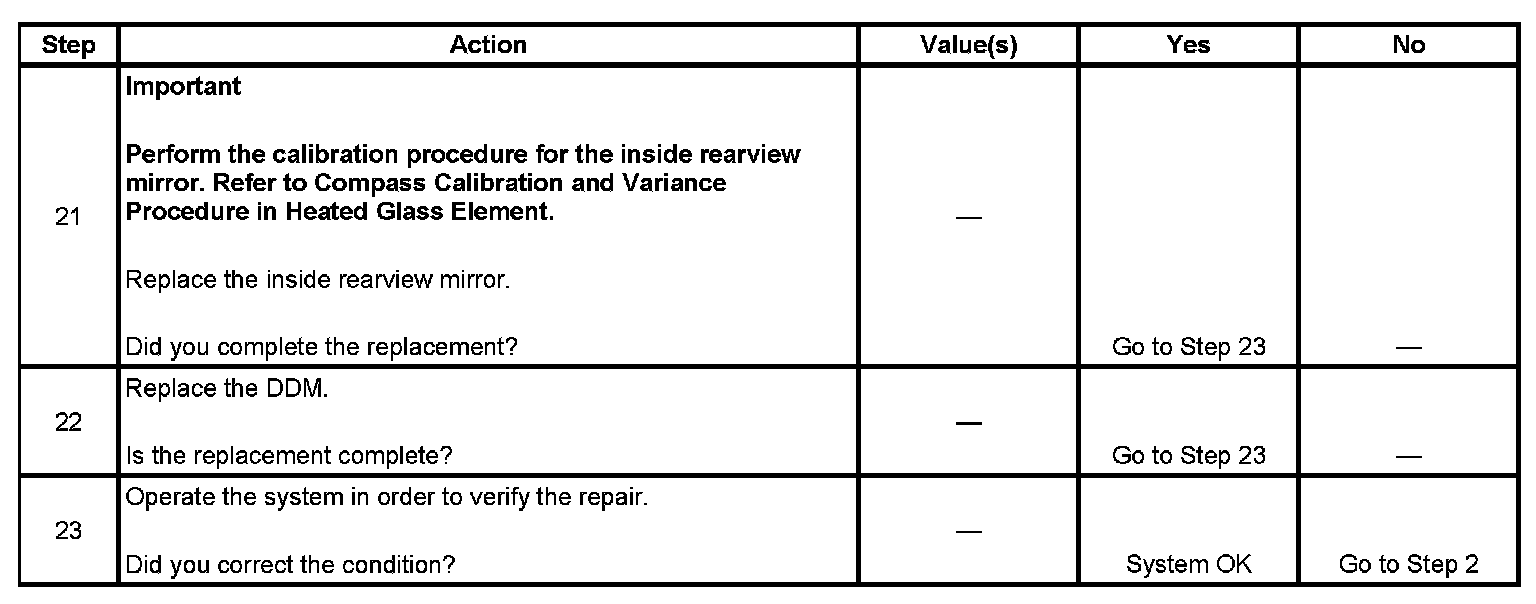

Steps 21 - 23:
