Instrument Panel - RH Rear

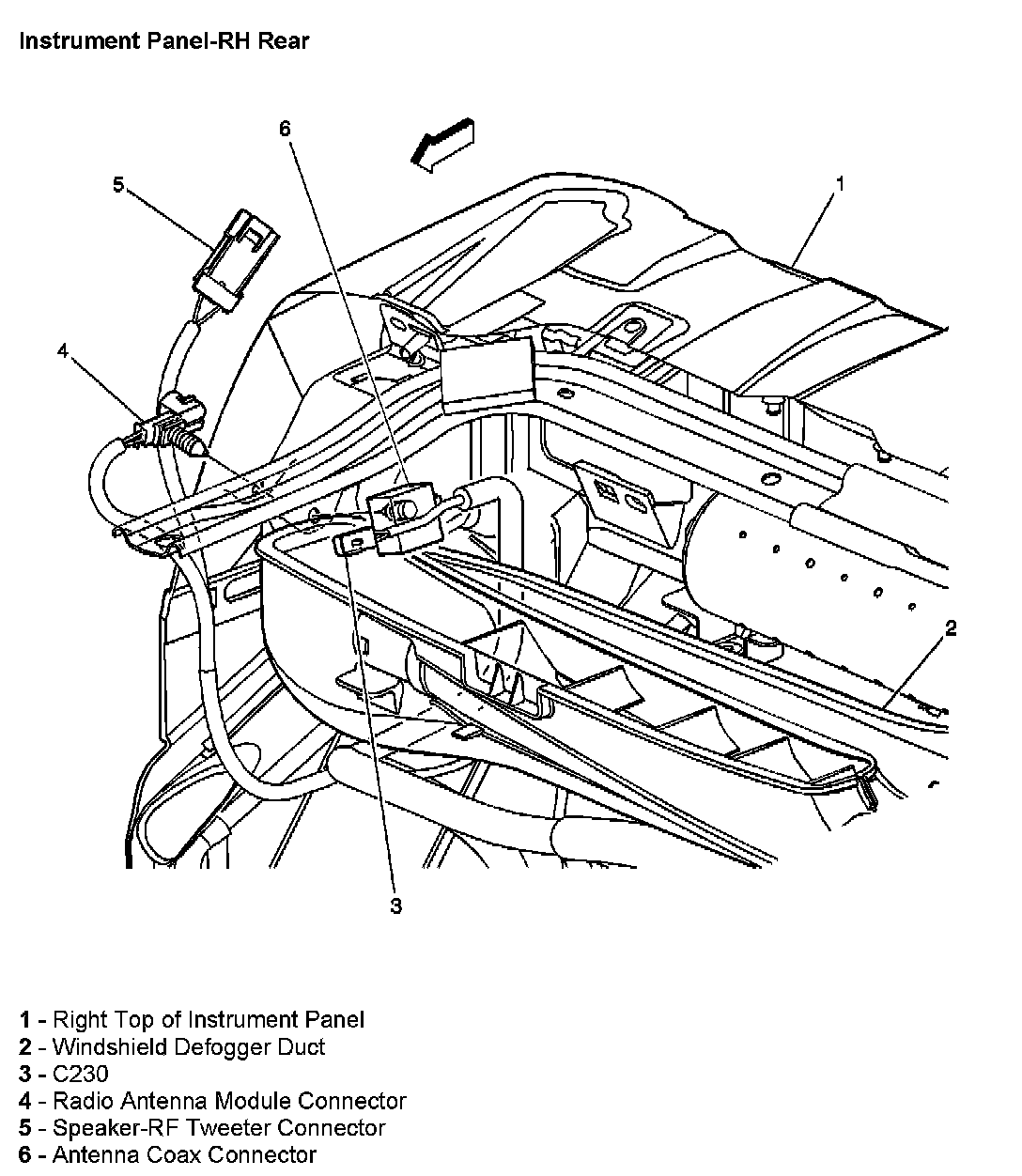

Instrument Panel - RH Rear:



I/P Harness Routing - Right Side Of I/P Console:
