Coaxial Cable Replacement - Digital Radio (Extension)

COAXIAL CABLE REPLACEMENT - DIGITAL RADIO (EXTENSION)

REMOVAL PROCEDURE




1. Remove the upper trim panel from the instrument panel (I/P).

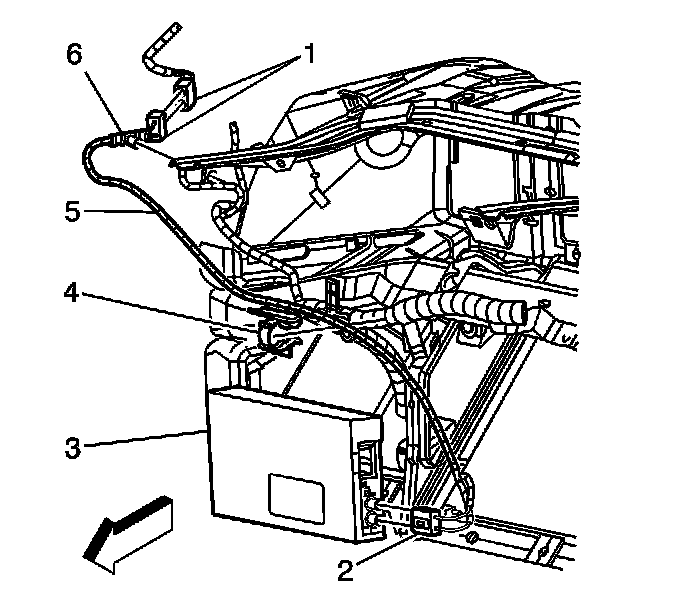

2. Disconnect the digital radio antenna cable (1).




3. Fully open the I/P storage compartment in order to access the digital receiver (3).
4. Disconnect the antenna cable (2) from the digital receiver (3).
5. Disengage the antenna cable clips (4, 6) from the I/P.
6. Remove the digital radio antenna extension cable (5).

INSTALLATION PROCEDURE




1. Install the digital radio extension cable (5) to the I/P.
2. Engage the antenna cable clips (4, 6) to the I/P.
3. Connect the antenna cable (2) to the digital receiver (3).




4. Connect the digital radio antenna extension cable to the digital radio antenna cable (1).
5. Install the I/P upper trim panel.
6. Close the I/P storage compartment.
