Home >> Chevy Truck >> 2005 >> Express 2500 V8-5.3L VIN T >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

Pro Harness And Components (PRP):

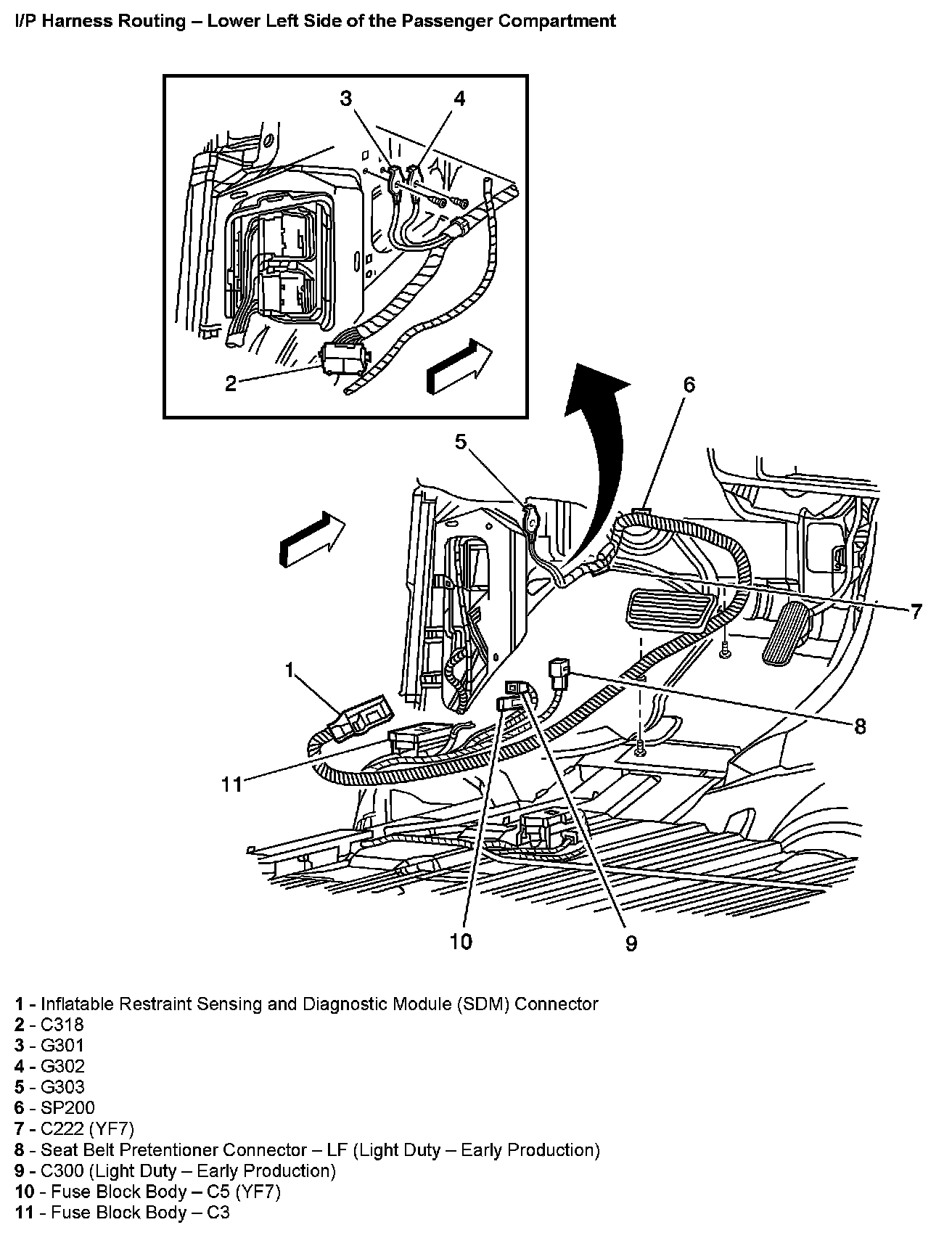

I/P Harness Routing - Lower Left Side Of The Passenger Compartment:
