Home >> Chevy Truck >> 2004 >> Venture FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

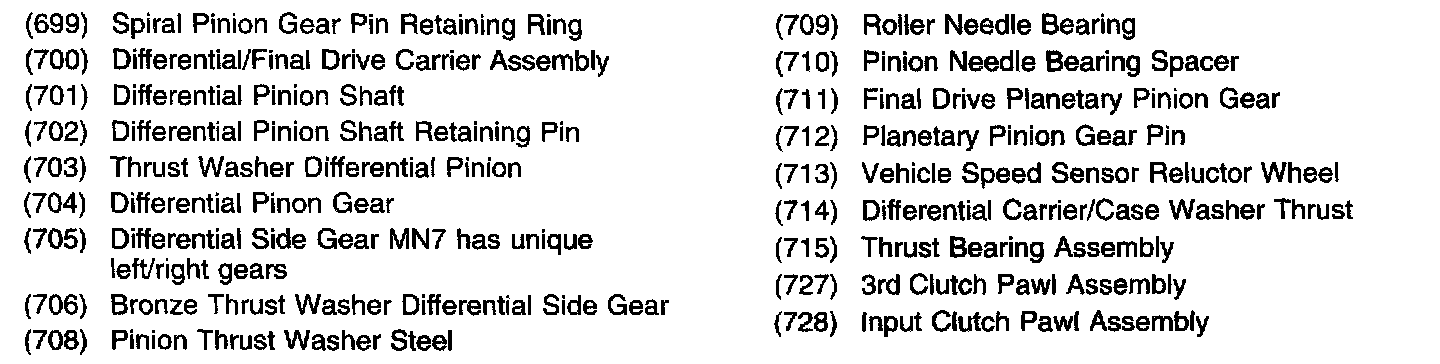

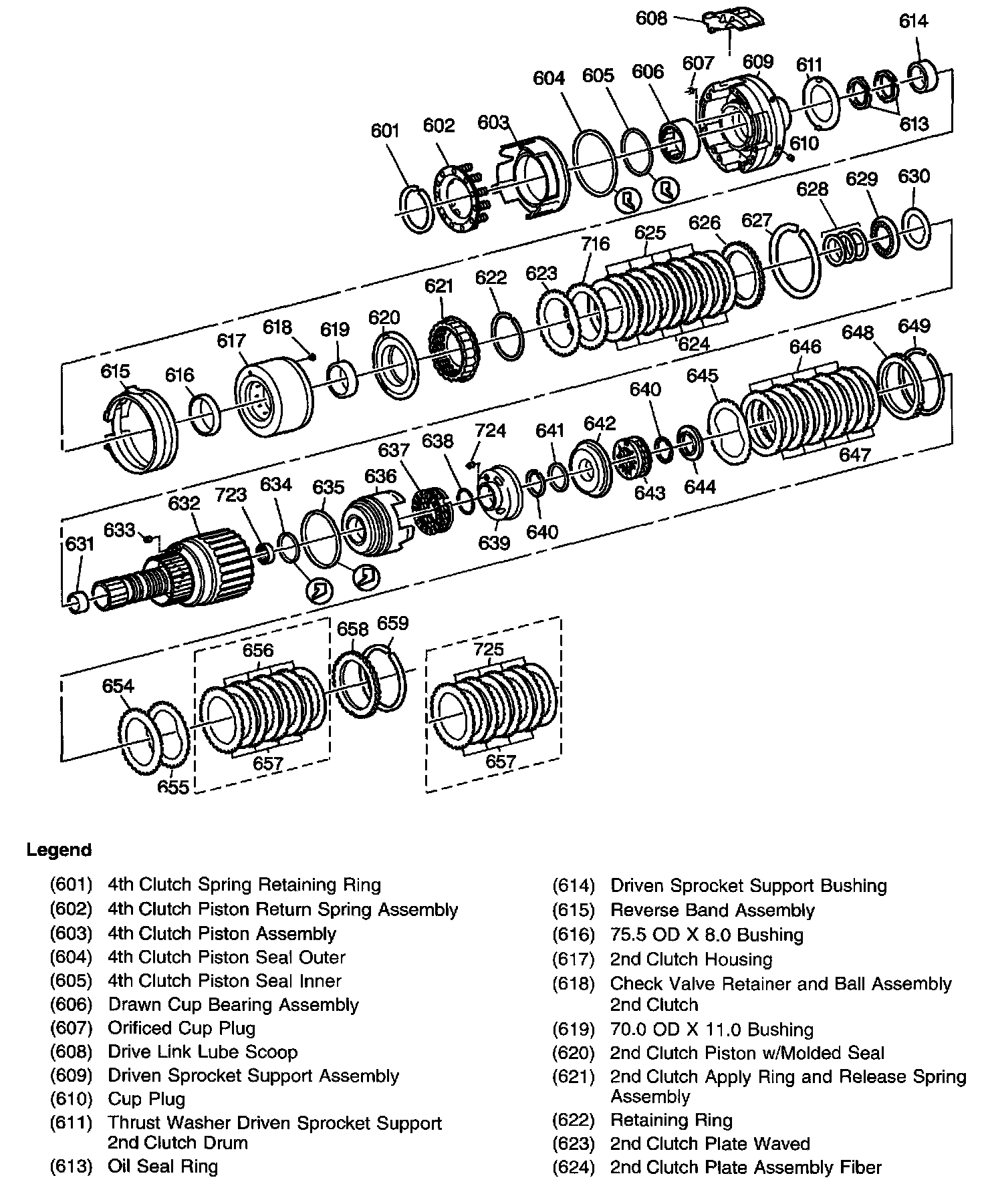

Internal Components (1 of 4):

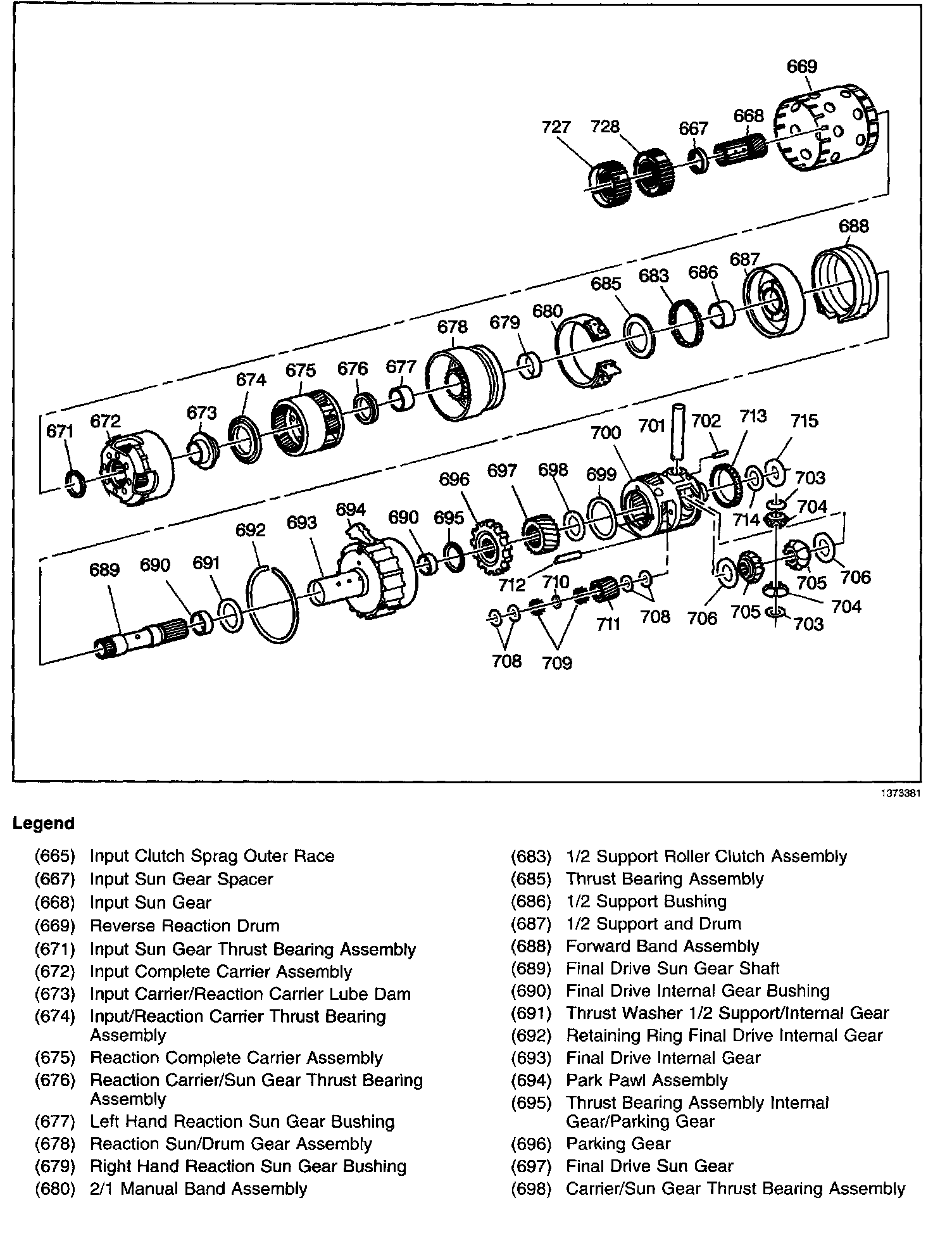

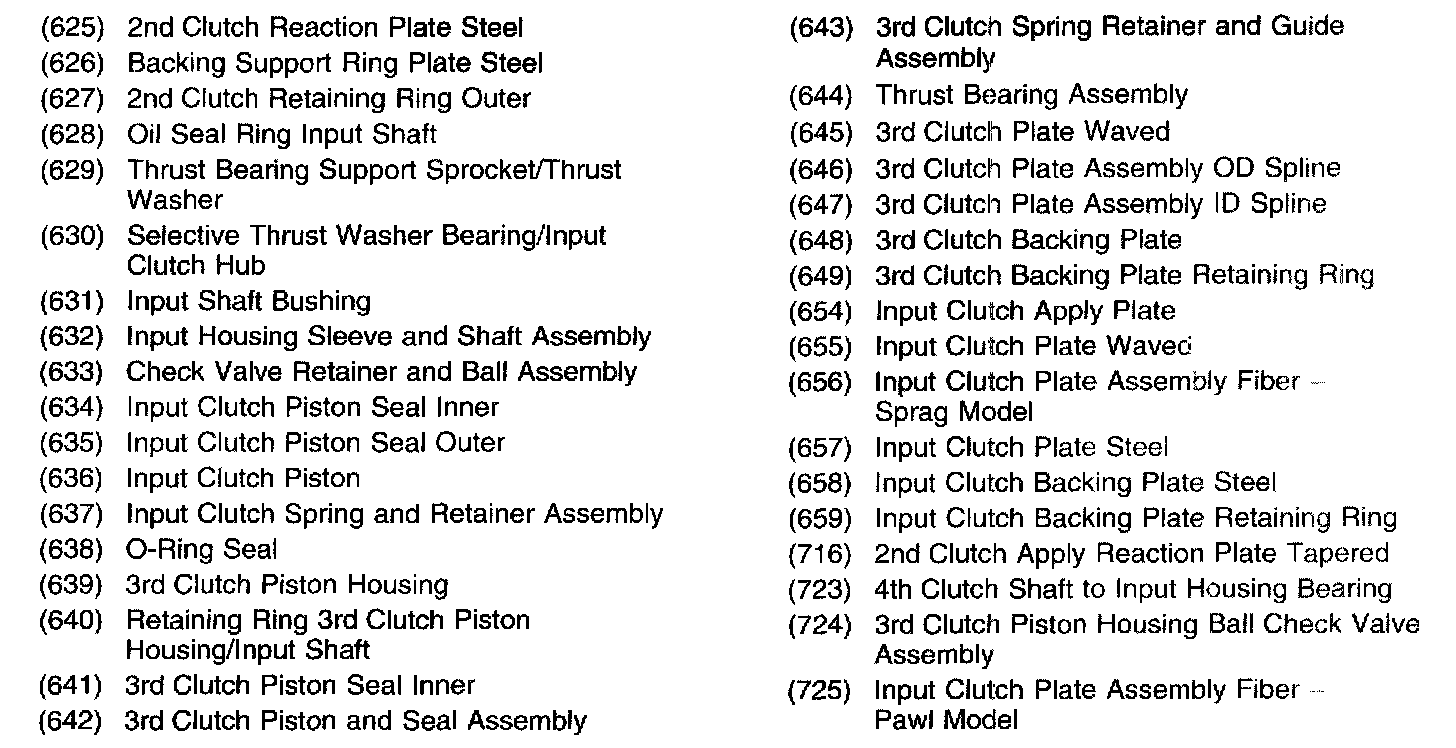

Internal Components (2 of 4):
