Wiper Motor Replacement - Rear
WIPER MOTOR REPLACEMENT - REARREMOVAL PROCEDURE
1. Remove the rear window wiper arm.
2. Remove the rear door trim panel seal.

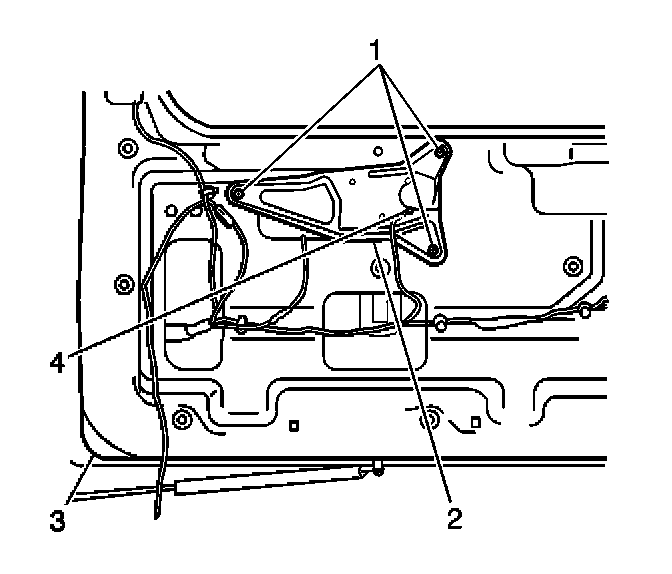

3. Remove the 3 screws (1) which secure the rear window wiper motor (2) to the rear door (3).
4. Disconnect the rear window wiper motor electrical connector.
5. Remove the rear window wiper motor (2) from the rear door (3).
INSTALLATION PROCEDURE
1. Connect the rear window wiper motor electrical connector.
2. Install the rear window wiper motor (2) to the rear door (3). Secure the wiper motor with the 3 screws (1).
3. Install the rear door trim panel seal.
4. Install the rear window wiper arm.
