Wiper Arm Replacement - Rear

WIPER ARM REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Remove the spare tire and wheel assembly from the spare wheel carrier.

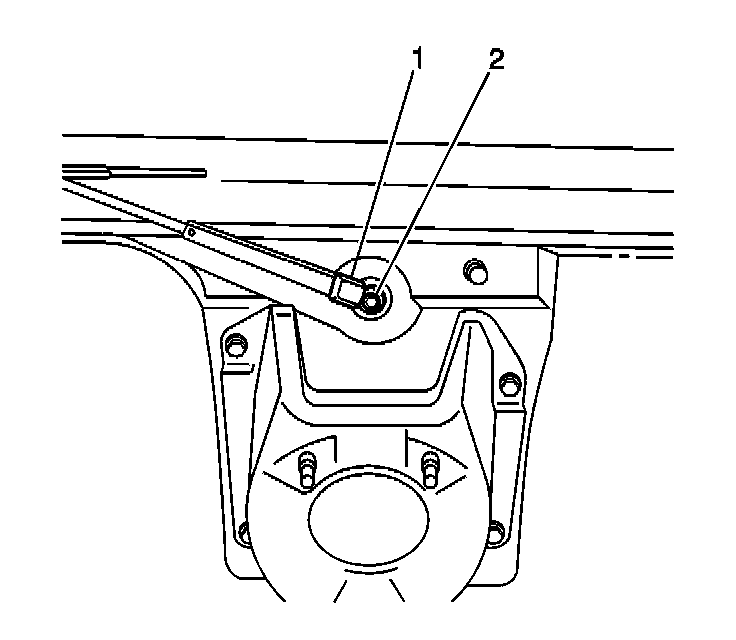

2. Open the rear window wiper arm nut cover (1) in order to gain access to the rear window wiper arm retaining nut (2).

IMPORTANT: Before removing the rear wiper arm, note the wiper arm location for proper installation.

3. Remove the rear window wiper arm retaining nut (2) that retains the rear window wiper arm.
4. Remove the rear window wiper arm from the rear door.

INSTALLATION PROCEDURE




1. Install the rear window wiper arm to the rear door. Secure the rear wiper arm with the retaining nut (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the rear window wiper arm retaining nut to 20 N.m (15 lb ft).

2. Close the rear window wiper arm nut cover (1).
3. Install the spare tire and wheel assembly to the spare wheel carrier.
