Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Locations

Windshield Washer Switch: Locations

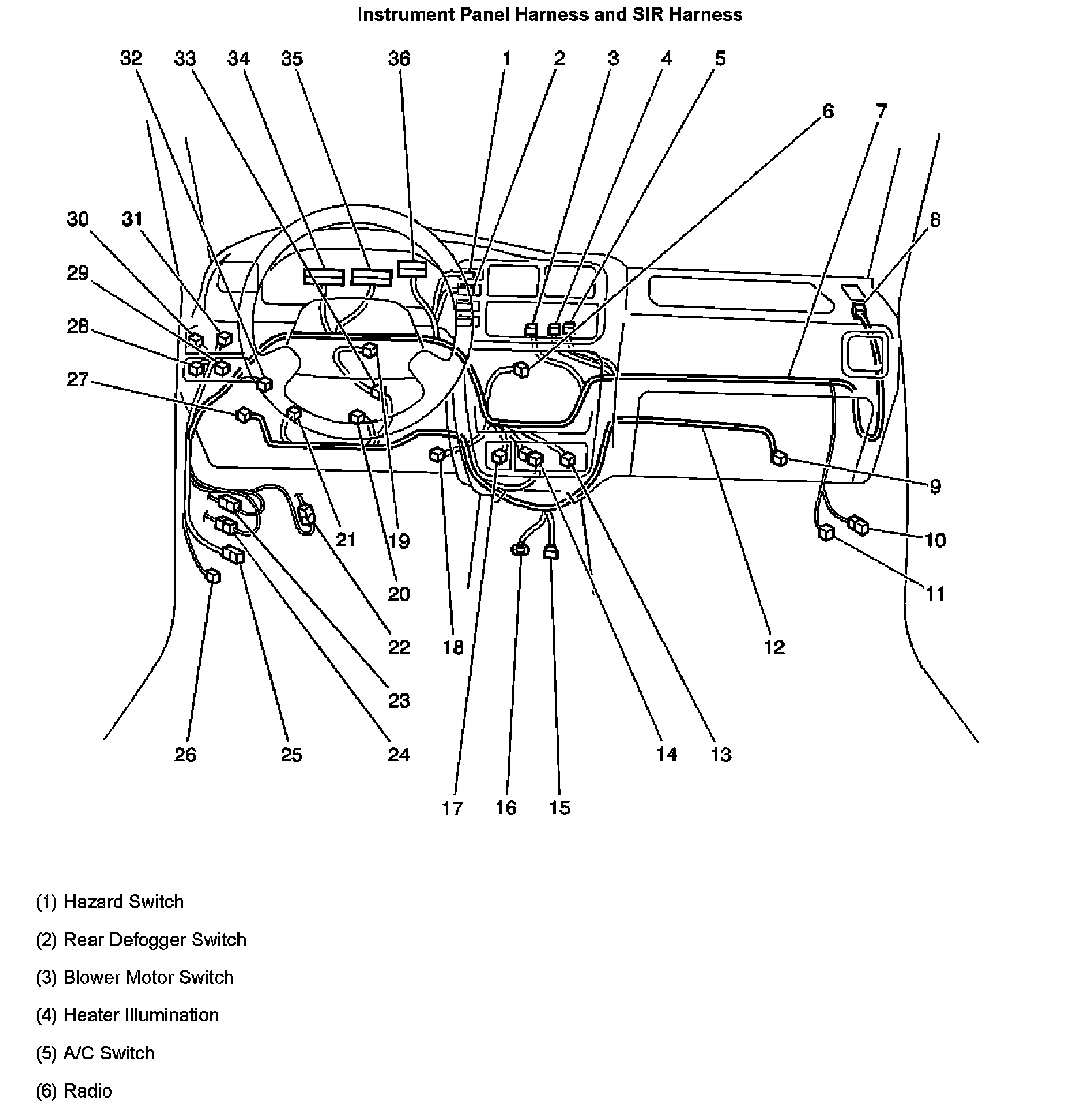

Instrument Panel Harness And SIR Harness Part 1:

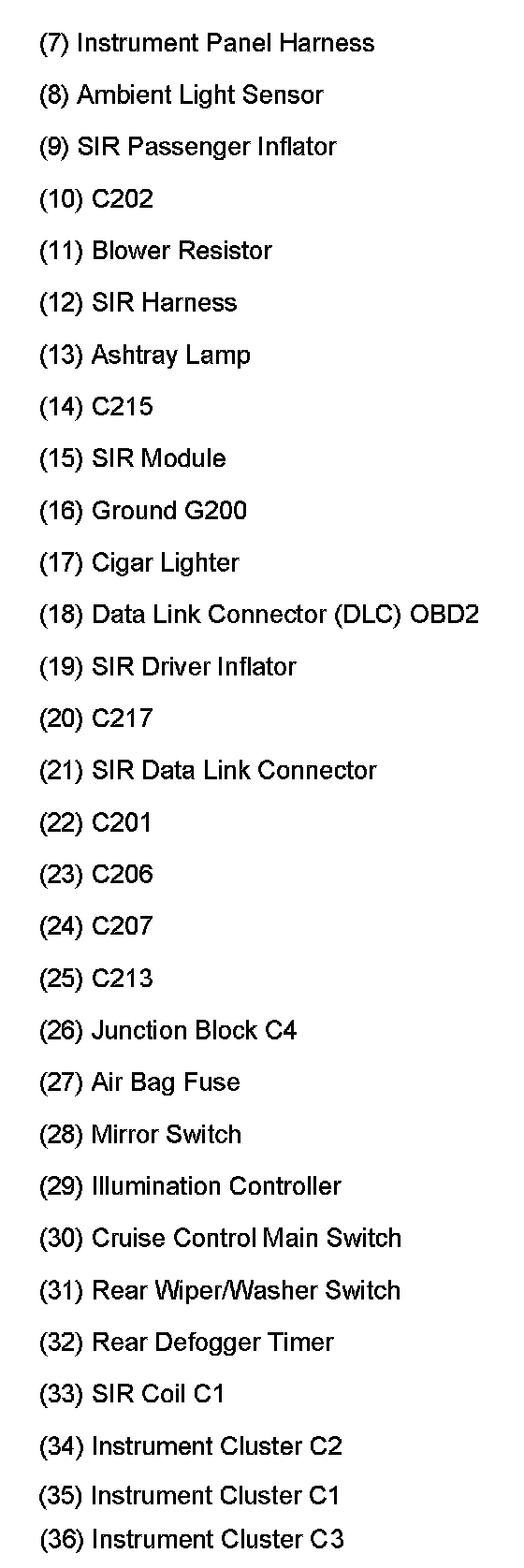

Instrument Panel Harness And SIR Harness Part 2:
