Rear Drive Axle

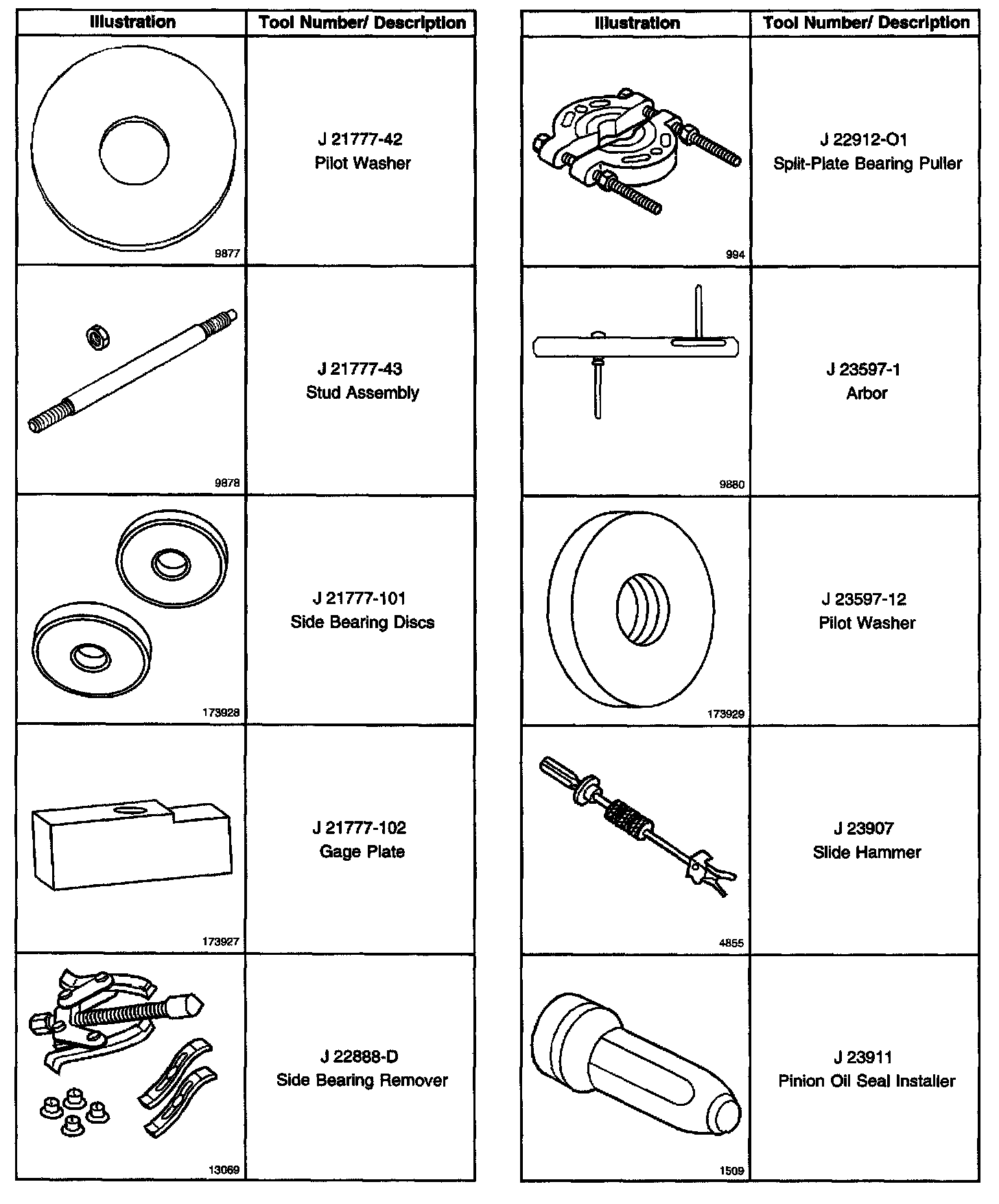

Special Tools and Equipment (Part 1 of 4)

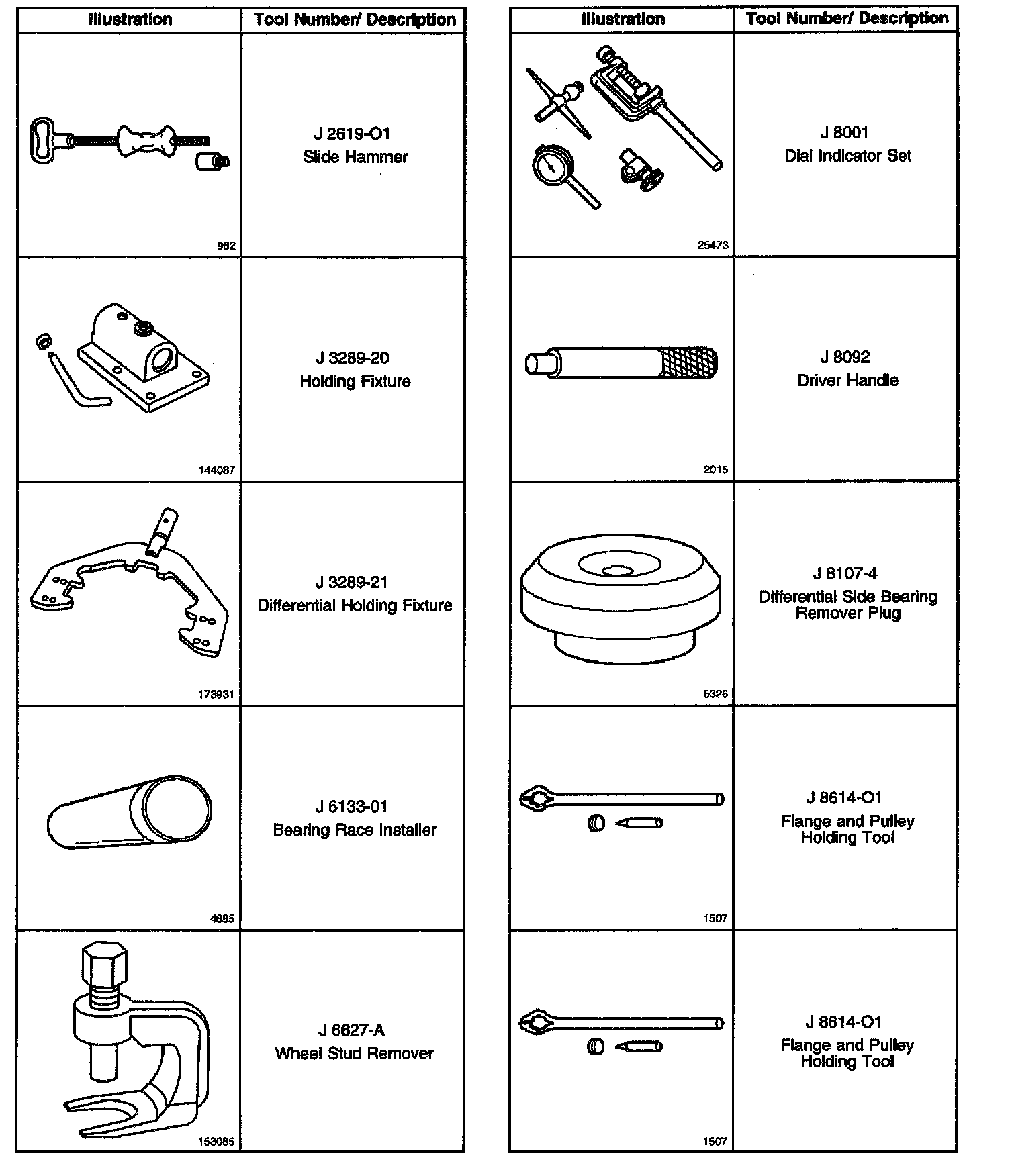

Special Tools and Equipment (Part 2 of 4)

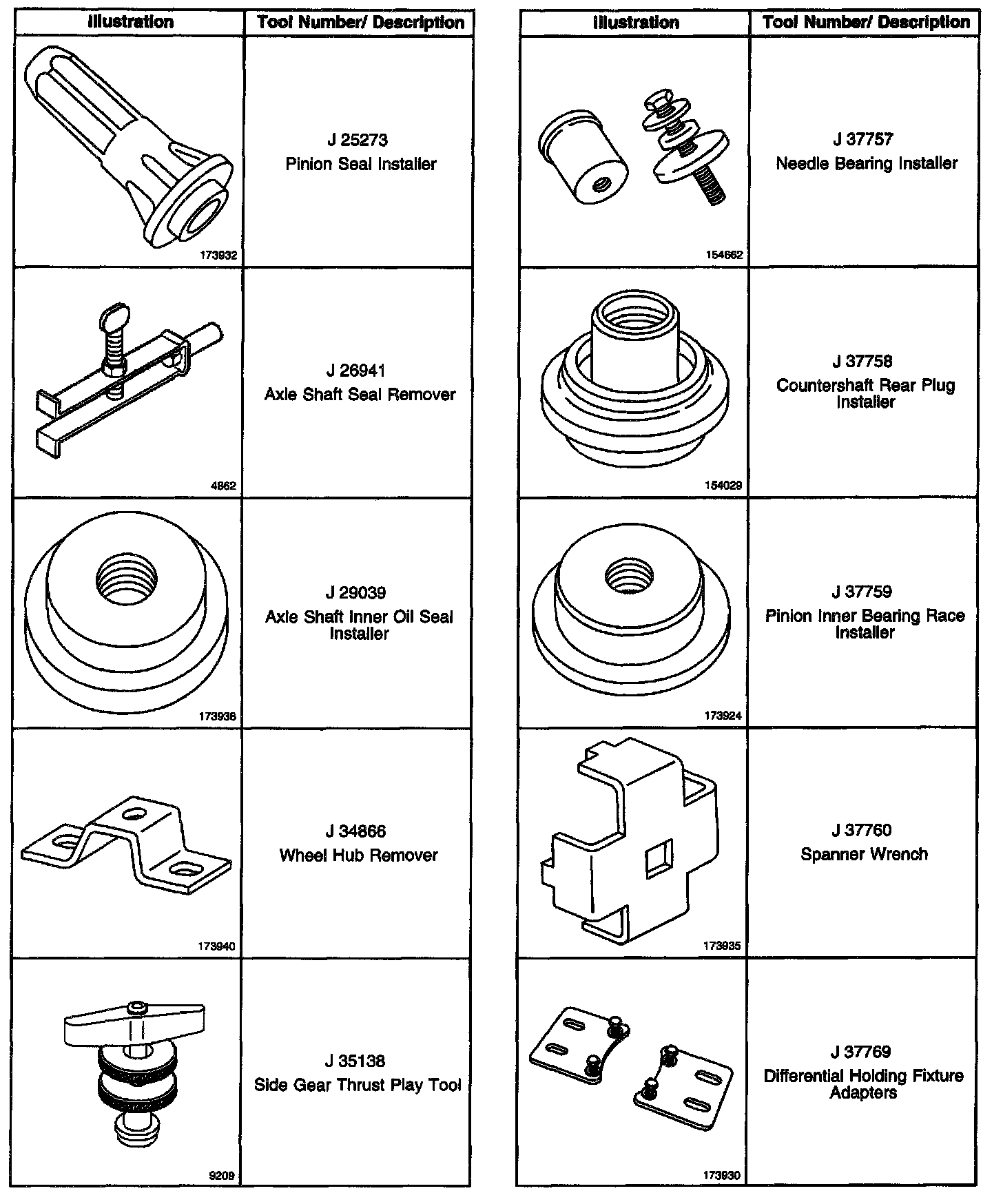

Special Tools and Equipment (Part 3 of 4)

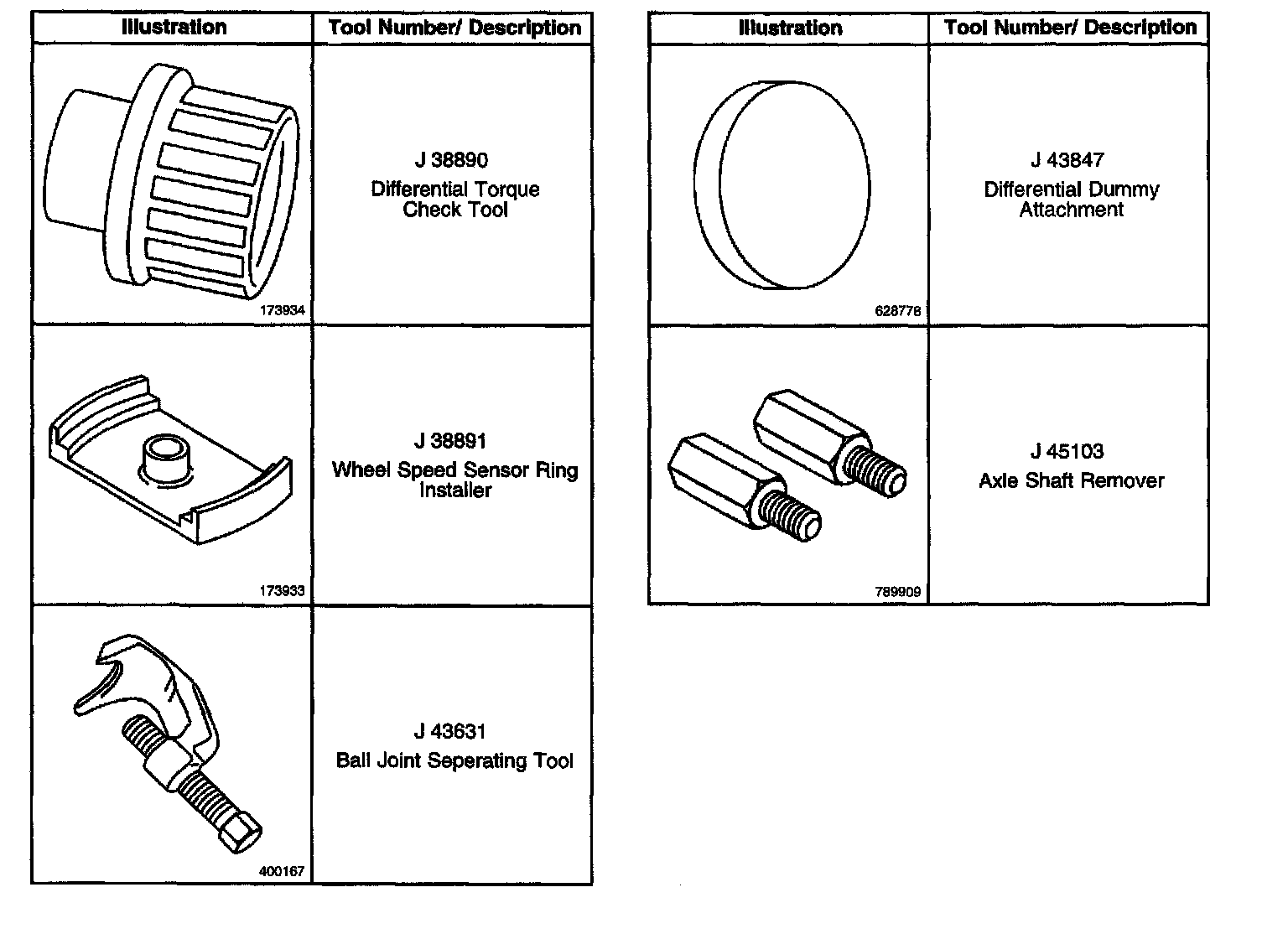

Special Tools and Equipment (Part 4 of 4)
