FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Lever Doesnt Move W/Brake Pedal Depressed - W/Out Cruise

Shift Lever Doesnt Move W/Brake Pedal Depressed - W/Out Cruise

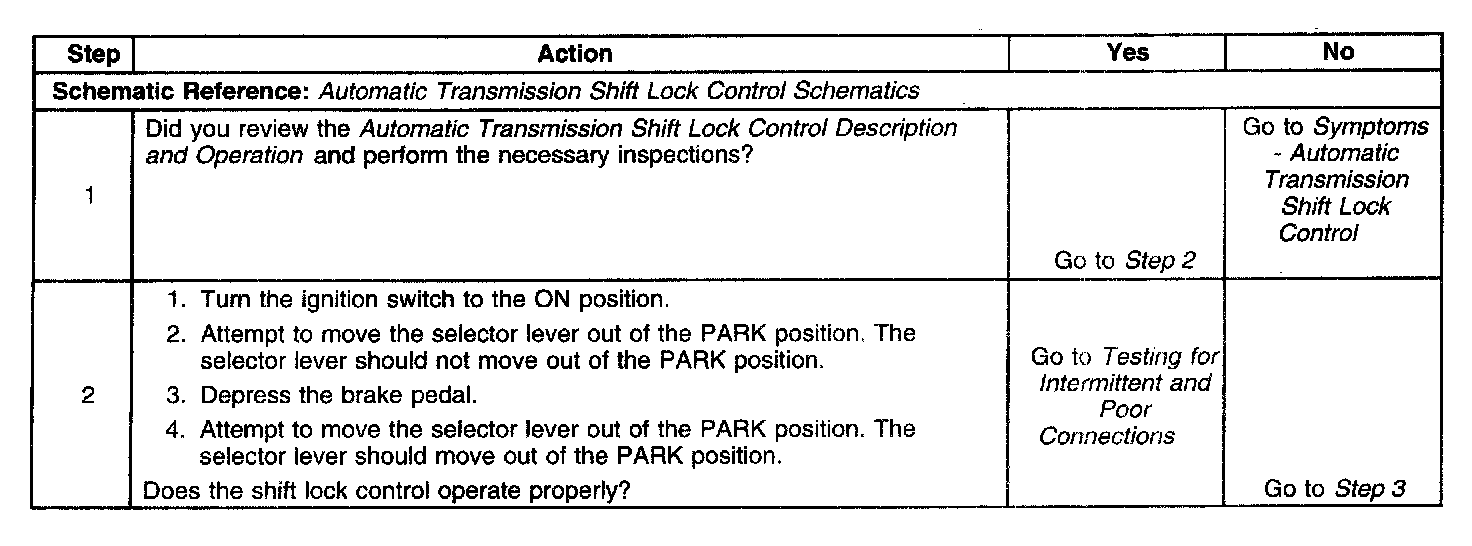

Steps 1 - 2:

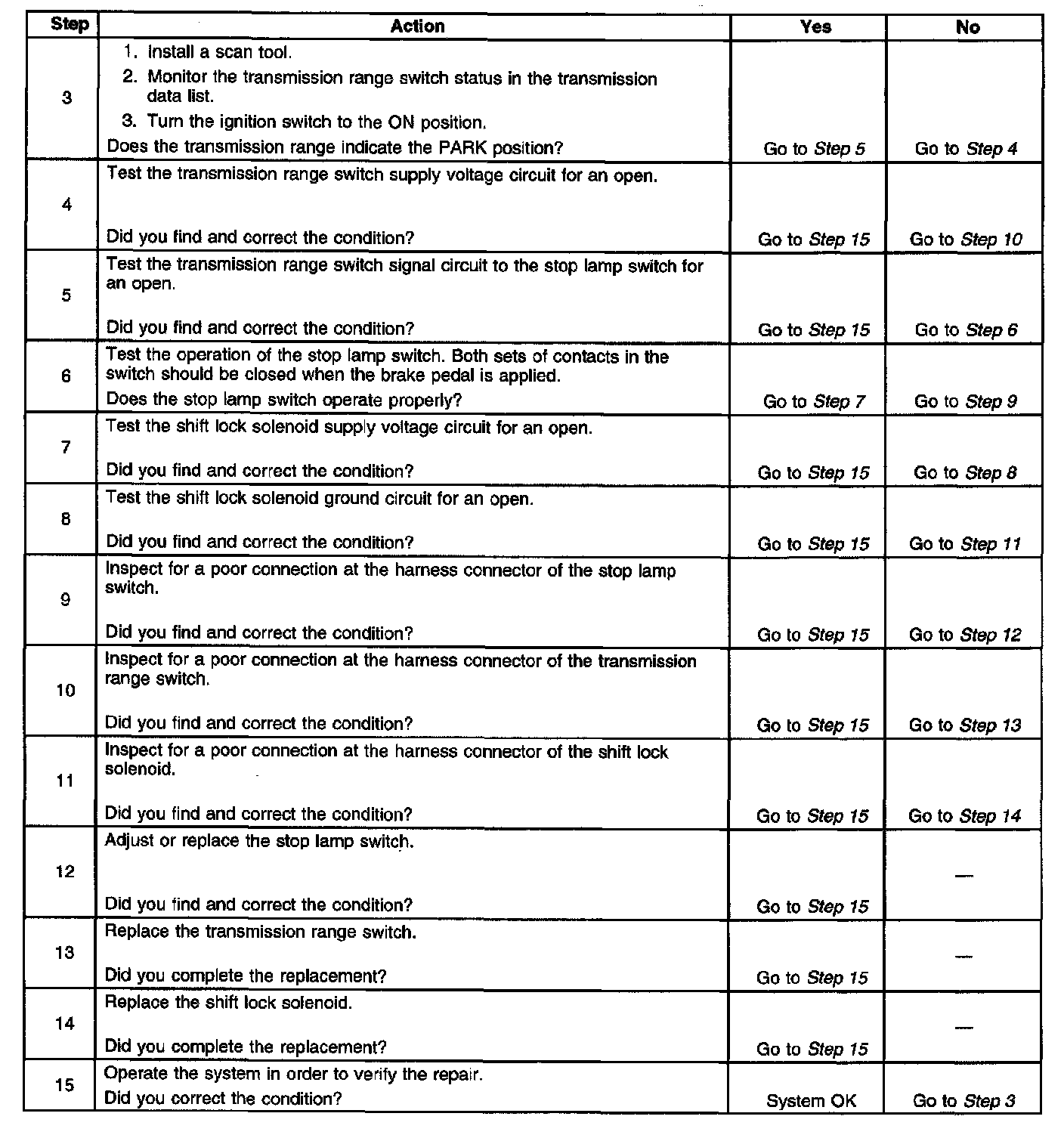

Steps 3 - 15:
