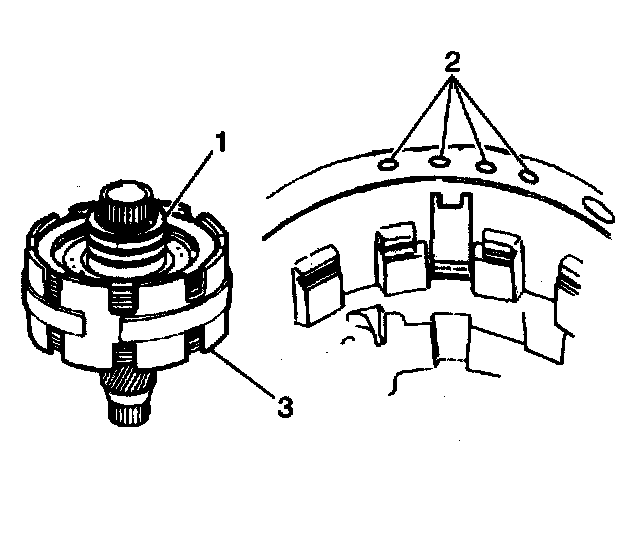

31. Center Support and Planetary Sun Gear Installation

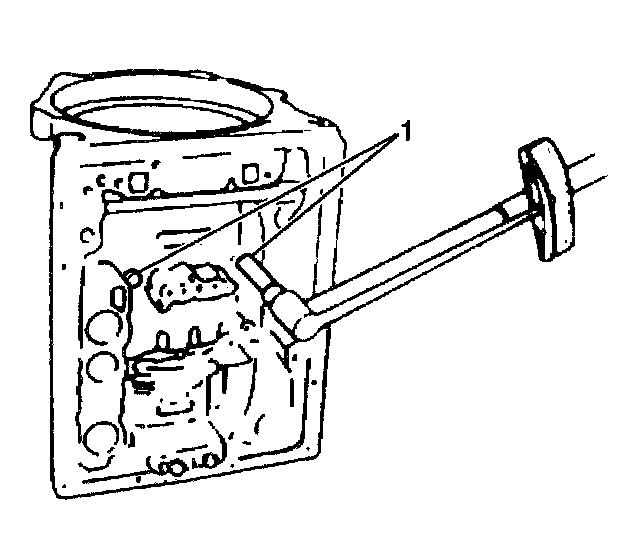

1. Install the center support (3) to the transmission case, aligning the oil passages (2) in the case with the center support mounting holes.





2. Install the center support bolts (1).

Notice: Refer to Fastener Notice in Service Precautions.

^ Tighten the bolts to 26 Nm (19 ft. lbs.).

Parking Pawl and Manual Shift Linkage Installation

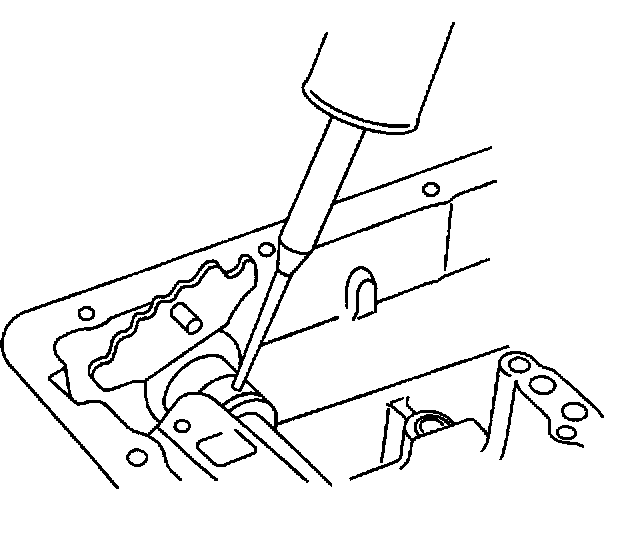

1. Install new manual shaft oil seals to both sides of the transmission case using a socket and a hammer.
2. Lubricate the new oil seals with A/T fluid.

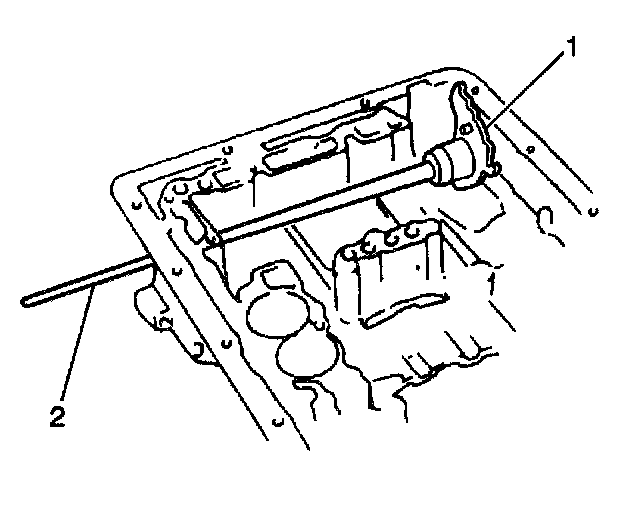

3. Install the manual shift shaft (2) and shift lever (1) to the transmission case.

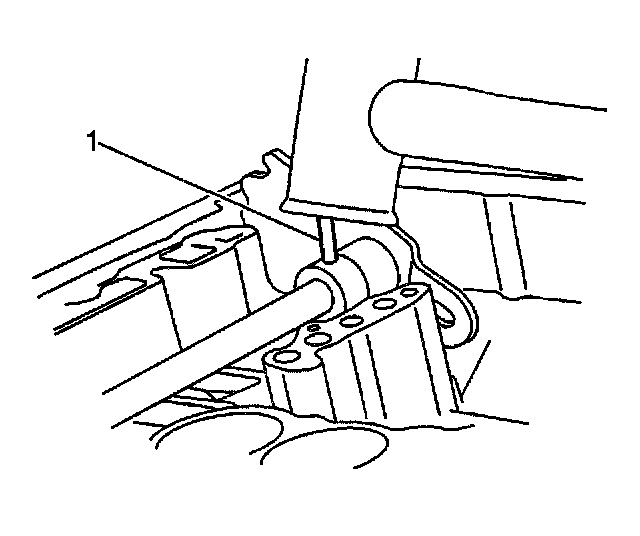

4. Install the manual shift lever pin (1) to the manual shift lever hub using a hammer.





5. Slide the manual lever hub protection sleeve over the manual detent lever hub using a hammer and a chisel.

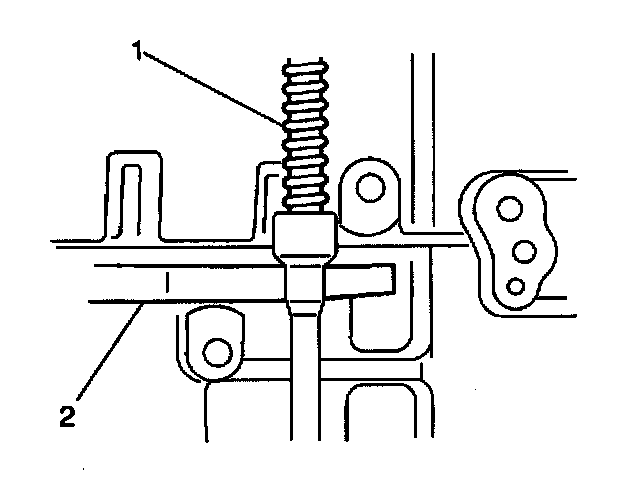

6. Install the parking pawl rod (1) to the manual shift shaft.

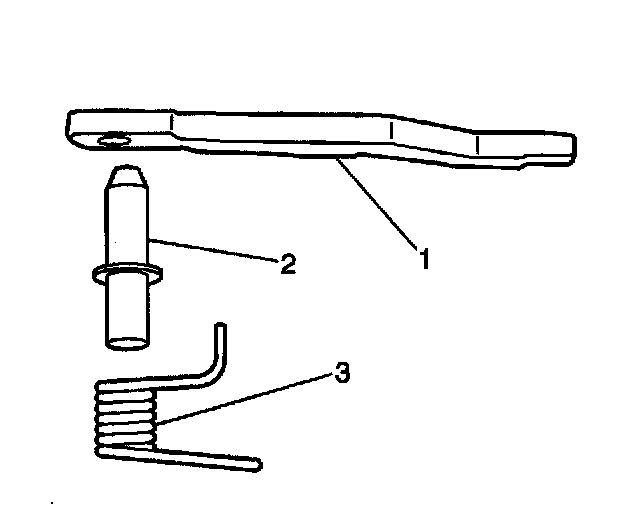

7. Install the following parking pawl components to the transmission case:
^ The pawl (1)
^ The pivot pin (2)
^ The torsion spring (3)
^ The plate
^ The plate bolts

Notice: Refer to Fastener Notice in Service Precautions.

^ Tighten the bolts to 7 Nm (62 inch lbs).
